Teac W-470 - Main Pcb Ass y

W-470

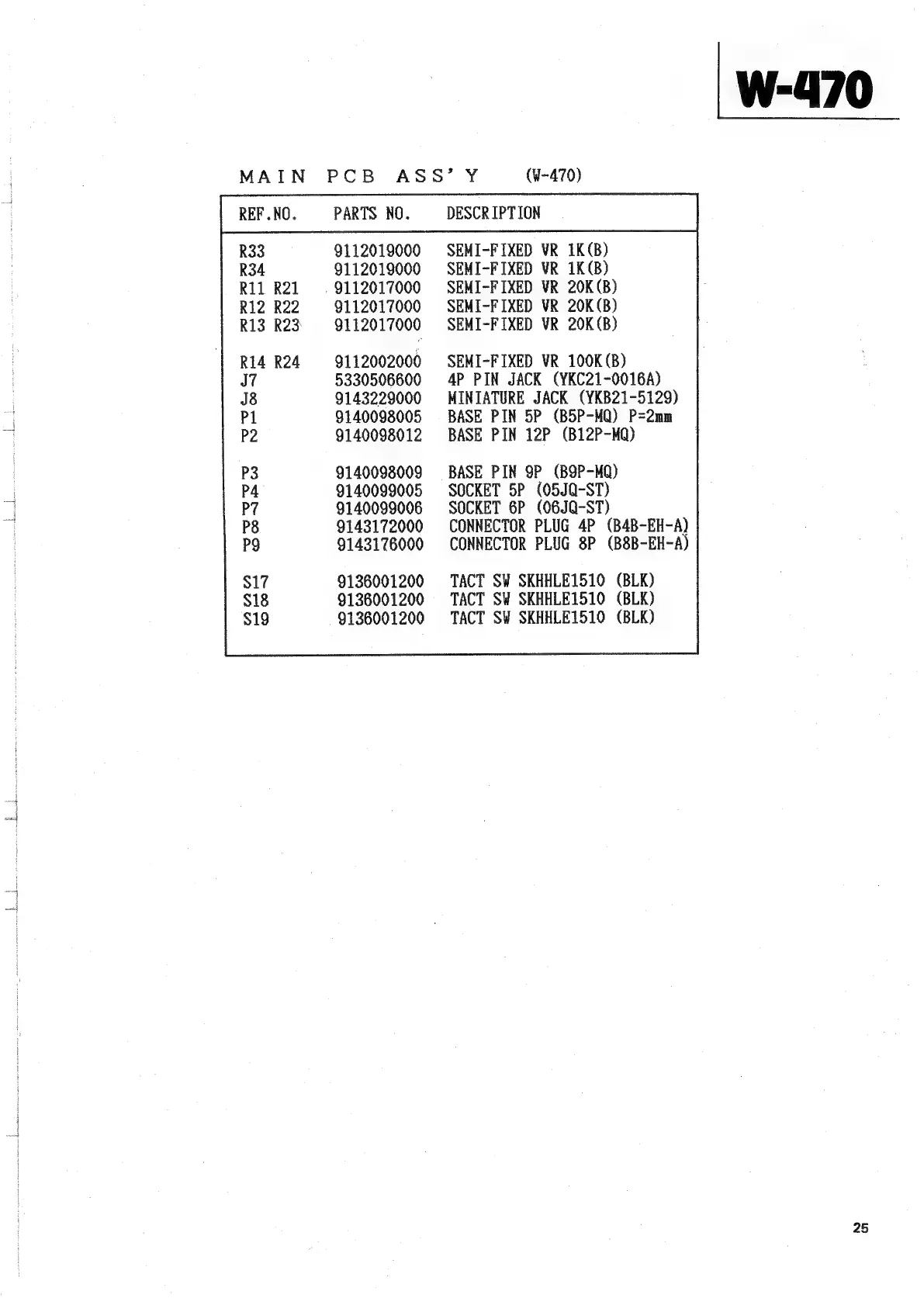

MAIN PCB ASS’ Y (W-470)
REF .NO.
R33
R34
R11 R21
R12 R22
R13 R23
R14 R24
PARTS NO.
9112019000
9112019000
. 9112017000
9112017000
9112017000
9112002000
5330506600
9143229000
9140098005
9140098012
9140098009
9140099005
9140099006
9143172000
9143176000
9136001200
9136001200
9136001200
DESCRIPTION
SEMI-FIXED VR 1K(B)
SEMI-FIXED VR 1K (B)
SEMI-FIXED VR 20K (B)
SEMI-FIXED VR 20K(B)
SEMI-FIXED VR 20K (B)
SEMI-FIXED VR 100K (B)
4P PIN JACK (YKC21-0016A)
MINIATURE JACK (YKB21-5129)
BASE PIN 5P (B5P-MQ) P=2mm
BASE PIN 12P (B12P-MQ)
BASE PIN 9P (BOP-MQ)
SOCKET 5P (05JQ-ST)
SOCKET 6P (06JQ-ST)
CONNECTOR PLUG 4P (B4B-EH-A)
CONNECTOR PLUG 8P (B8B-EH-A)
TACT SW SKHHLE1510 (BLK)
TACT SW SKHHLE1510 (BLK)
TACT SW SKHHLE1510 (BLK)
