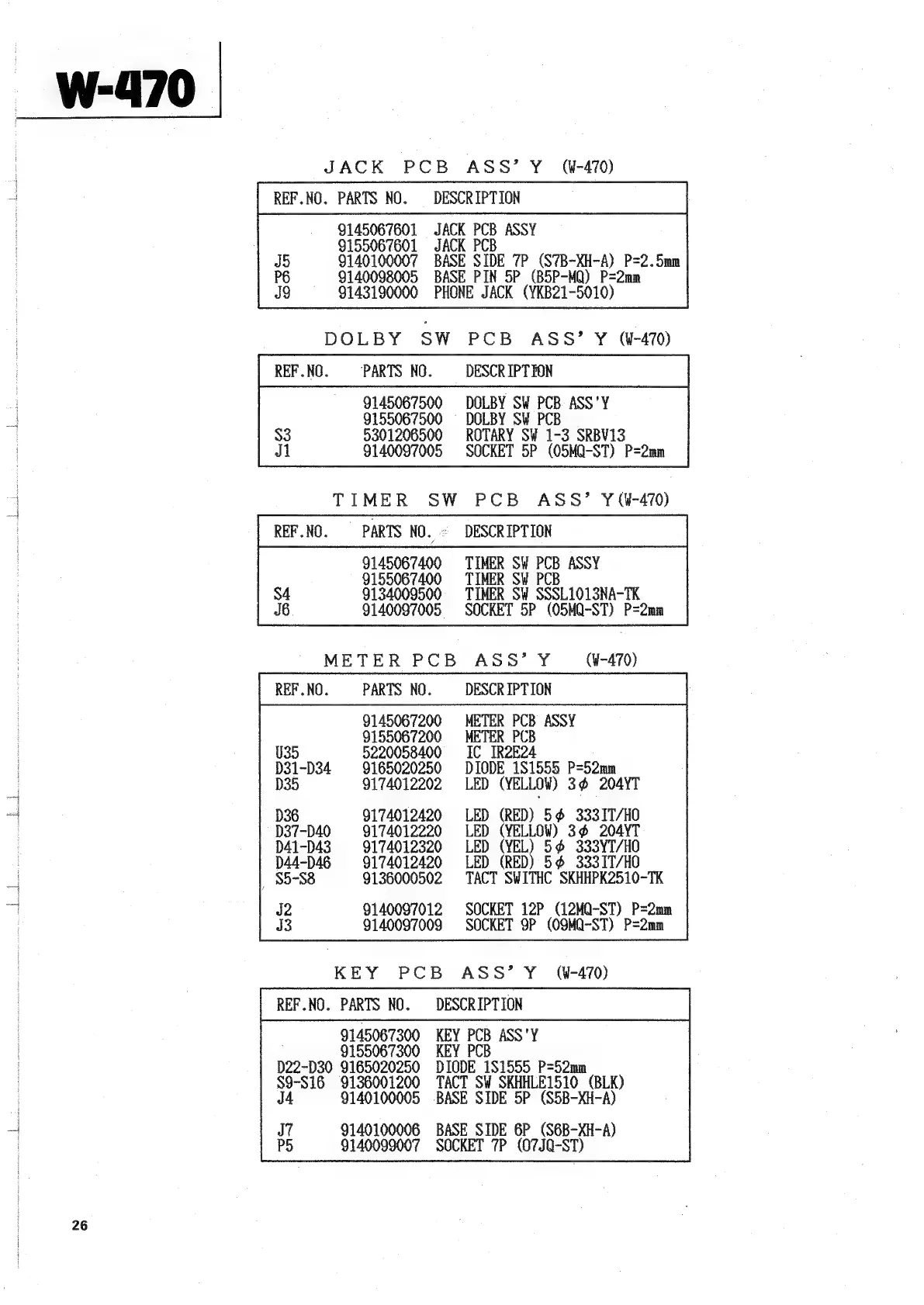

w-470
26
JACK PCB ASS’ Y_ (W-470)
REF.NO. PARTS NO. DESCRIPTION
9145067601 JACK PCB ASSY
9155067601 JACK PCB
9140100007 BASE SIDE 7P (S7B-XH-A) P=2.5mm
9140098005 BASE PIN 5P (B5P-MQ) P=2mm
9143190000 PHONE JACK (YKB21-5010)
DOLBY SW PCB ASS’ Y (W-470)
REF.NO. ‘PARTS NO. = DESCRIPTION
9145067500 DOLBY SW PCB ASS'Y
9155067500 DOLBY SW PCB
$3 5301206500 ROTARY SW 1-3 SRBV13
9140097005 SOCKET 5P (OSMQ-ST) P=2mm
TIMER SW PCB ASS’ Y (W-470)
REF.NO. PARTS NO. ~ DESCRIPTION
9145067400 TIMER SW PCB ASSY
9155067400 TIMER SW PCB
9134009500 TIMER SW SSSL1O13NA-TK
9140097005 SOCKET SP (O5MQ-ST) P=2mm
METER PCB ASS’ Y (W-470)
REF.NO. PARTS NO. DESCRIPTION
9145067200 METER PCB ASSY
9155067200 METER PCB
5220058400 IC IR2E24
9165020250 DIODE 181558 P=52mm
9174012202 LED (YELLOW) 34 204YT
9174012420 LED (RED) 54 333IT/HO
9174012220 LED (YELLOW) 3¢ 204YT
9174012320 LED (YEL) 5¢ 333YT/HO
9174012420 LED (RED) 5¢ 333IT/HO
9136000502 TACT SWITHC SKHHPK2510-TK
9140097012 SOCKET 12P (12MQ-ST) P=2mm
9140097009 SOCKET 9P (O9MQ-ST) P=2mm
KEY PCB ASS’ Y_ (¥-470)
REF.NO. PARTS NO. DESCRIPTION
9145067300 KEY PCB ASS'Y
; 9155067300 KEY PCB
D22-D30 9165020250 DIODE 181555 P=52mm
$9-S16 9136001200 TACT SW SKHHLE1510 (BLK)
J4 9140100005 BASE SIDE 5P (S5B-XH-A)
J7 9140100006 BASE SIDE 6P_(S6B-XH-A)
P5 9140099007 SOCKET 7P (07JQ-ST)
