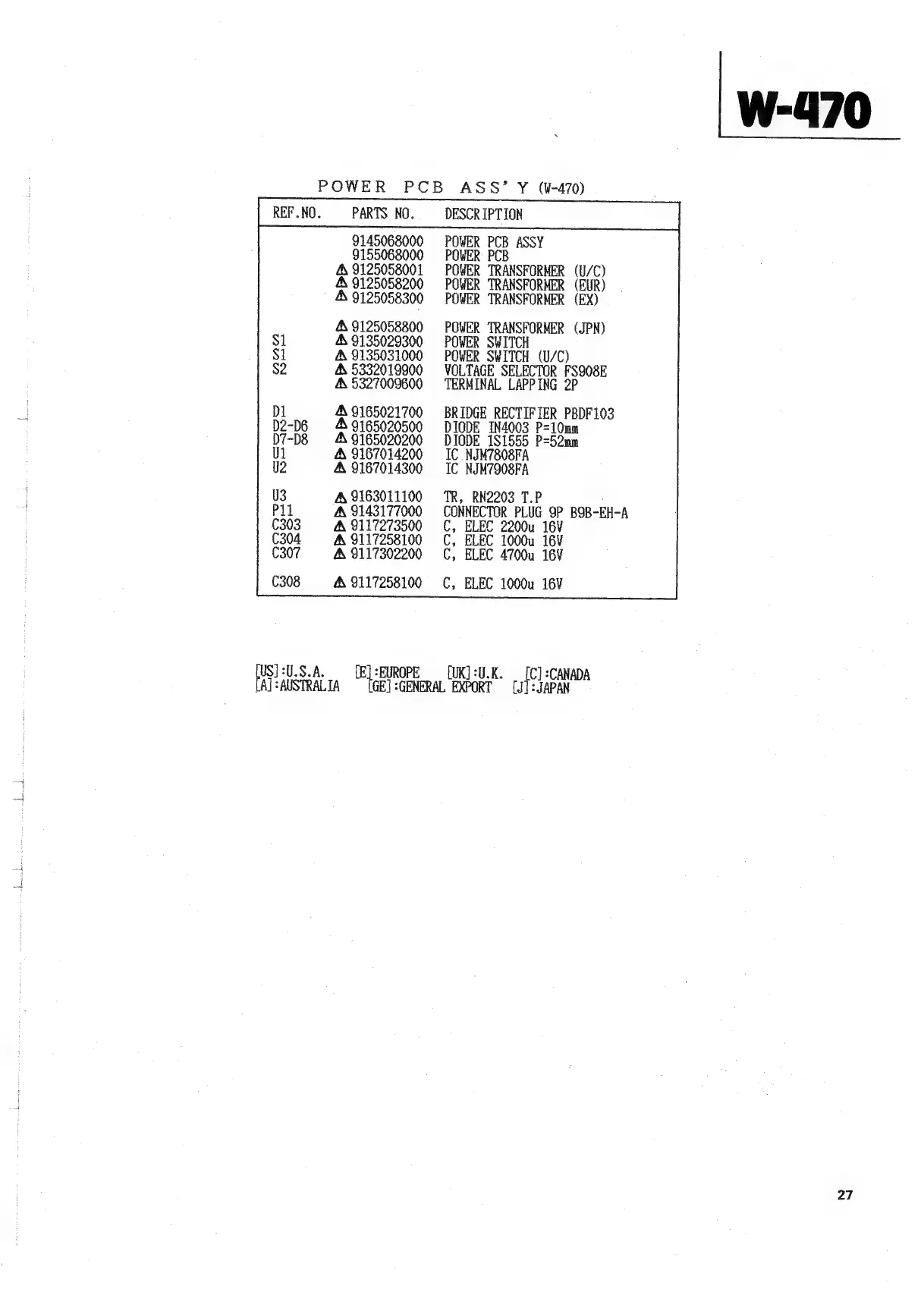

Teac W-470 - Power PCB Assembly

W-470
POWER
PCB
ASS’
Y
(W¥-470)
REF . NO. PARTS NO.
9145068000
9155068000
A 9125058001
A 9125058200
A 9125058300
A 9125058800
A 9135029300
A, 9135031000
AS 5332019900
As 5327009600
A 9165021700
-
A
9165020500
A 9165020200
A 9167014200
A 9167014300
|
A,
9163011100
+
A
9143177000
A
9117273500
Ay
9117258100
A
9117302200
A 9117258100
its) 2U.S.A. anna
tA] :AUSTRALIA
psa
GE] :GENERAL EXPORT
DESCRIPTION
POWER PCB ASSY
POWER PCB |
POWER TRANSFORMER (U/C)
POWER TRANSFORMER (EUR)
POWER TRANSFORMER (EX)
POWER TRANSFORMER (JPN)
POWER SWITCH —
POWER SWITCH (U/C)
VOLTAGE SELECTOR FS908E
TERMINAL LAPPING 2P
BRIDGE RECTIFIER PBDF103
DIODE IN4003 P=10mm
DIODE 181555 P=52mm
IC NJM7808FA
IC NJM7908FA
TR, RN2203 T.P
CONNECTOR PLUG 9P BOB-EH-A
C, ELEC 2200u 16V
C, ELEC 1000u 16¥
C, ELEC 4700u 169
C, ELEC 1000u 16V
(UK]:U.K. —_ [C] :CANADA
(J] : JAPAN
27
