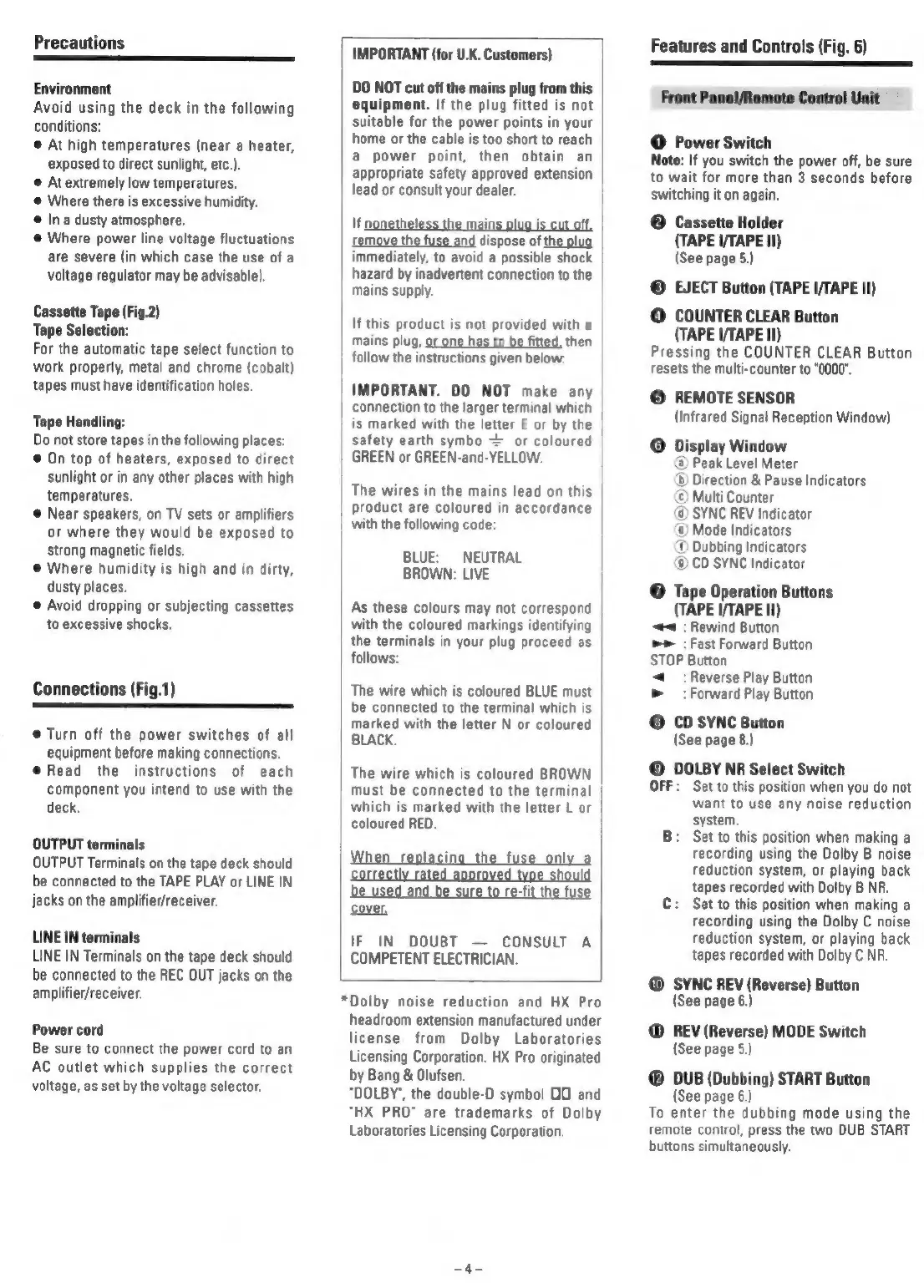

Precautions
——
Environment
Avoid using the deck in the following
conditions:
© At high temperatures (near a heater,
exposed to direct sunlight, etc.).
© At extremely low temperatures.
© Where there is excessive humidity.
© In a dusty atmosphere.
@ Where power line voltage fluctuations
are severe (in which case the use of a
voltage regulator may be advisable).
Cassette Tape (Fig.2)
Tape Sele
For the automatic tape select function to
work properly, metal and chrome (cobalt)
tapes must have identification holes.
Tape Handling:
Do not store tapes in the following places:
© On top of heaters, exposed to direct
sunlight or in any other places with high
temperatures.
@ Near speakers, on TV sets or amplifiers
or where they would be exposed to
strong magnetic fields.
@ Where humidity is high and in dirty,
dusty places.
© Avoid dropping or subjecting cassettes
to excessive shocks.
Connections (Fig.1)
Turn off the power switches of all
equipment before making connections.
e@Read the instructions of each
component you intend to use with the
deck.
OUTPUT terminals
OUTPUT Terminals on the tape deck should
be connected to the TAPE PLAY or LINE IN
jacks on the amplifier/receiver.
LINE IN terminals
LINE IN Terminals on the tape deck should
be connected to the REC OUT jacks on the
amplifier/receiver.
Power cord
Be sure to connect the power cord to an
AC outlet which supplies the correct
voltage, as set by the voltage selector.
IMPORTANT (for U.K. Customers)
DO NOT cut off the mains plug from this
equipment. If the plug fitted is not
suitable for the power points in your
home or the cable is too short to reach
@ power point, then obtain an
appropriate safety approved extension
lead or consult your dealer.
If nonetheless the mains plua is cut off,
remove the fuse and dispose of the plug
immediately, to avoid a posible shone shock
hazard by inadvertent connection to the
mains supply.
If this product is not provided with a
mains plug, or one has to be fitted, then
follow the instructions given below:
IMPORTANT. DO NOT make any
connection to the larger terminal which
is marked with the letter E or by the
safety earth symbo = or coloured
GREEN or GREEN-and-YELLOW.
The wires in the mains lead on this
product are coloured in accordance
with the following code: |
BLUE: NEUTRAL |
BROWN: LIVE |
As these colours may not correspond
with the coloured markings identifying
the terminals in your plug proceed as
follows:
The wire which is coloured BLUE must
be connected to the terminal which is
marked with the letter N or coloured
BLACK.
The wire which is coloured BROWN
must be connected to the terminal
which is marked with the letter L or
coloured RED.
h lacing the fi nt
Correctly rated approved type should
be used and be sure to re-fit the fuse
cover.
IF IN DOUBT — CONSULT A
COMPETENT ELECTRICIAN.
*Dolby noise reduction and HX Pro
headroom extension manufactured under
license. from Dolby Laboratories
Licensing Corporation. HX Pro originated
by Bang & Olufsen.
DOLBY’, the double-D symbol OO and
“HX PRO" are trademarks of Dolby
Laboratories Licensing Corporation.
Features and Controls (Fig. 6)
Front Panel/Remote Control Unit
@ Power Switch
Note: If you switch the power off, be sure
to wait for more than 3 seconds before
switching it on again.
© Cassette Holder
(TAPE I/TAPE I)
(See page 5.)
© EJECT Button (TAPE I/TAPE I!)
© COUNTER CLEAR Button
(TAPE I/TAPE Il)
Pressing the COUNTER CLEAR Button
resets the multi-counter to "0000".
© REMOTE SENSOR
(Infrared Signal Reception Window)
© Display Window
@) Peak Level Meter
») Direction & Pause Indicators
© Multi Counter
@ SYNC REV Indicator
©) Mode Indicators
1) Dubbing Indicators
9 CD SYNC Indicator
@ Tape Operation Buttons
(TAPE I/TAPE II)
<< : Rewind Button
> : Fast Forward Button
STOP Button
<<: Reverse Play Button
> =: Forward Play Button
© CD SYNC Button
(See page 8.)
© DOLBY NR Select Switch
OFF: Set to this position when you do not
want to use any noise reduction
system.
B: Set to this position when making a
recording using the Dolby B noise
reduction system, or playing back
tapes recorded with Dolby B NR.
C: Set to this position when making a
recording using the Dolby C noise
reduction system, or playing back
tapes recorded with Dolby C NR.
@ SYNC REV (Reverse) Button
(See page 6.)
@® REV (Reverse) MODE Switch
(See page 5.)
@® DUB (Dubbing) START Button
(See page 6.)
To enter the dubbing mode using the
remote control, press the two DUB START
buttons simultaneously.
