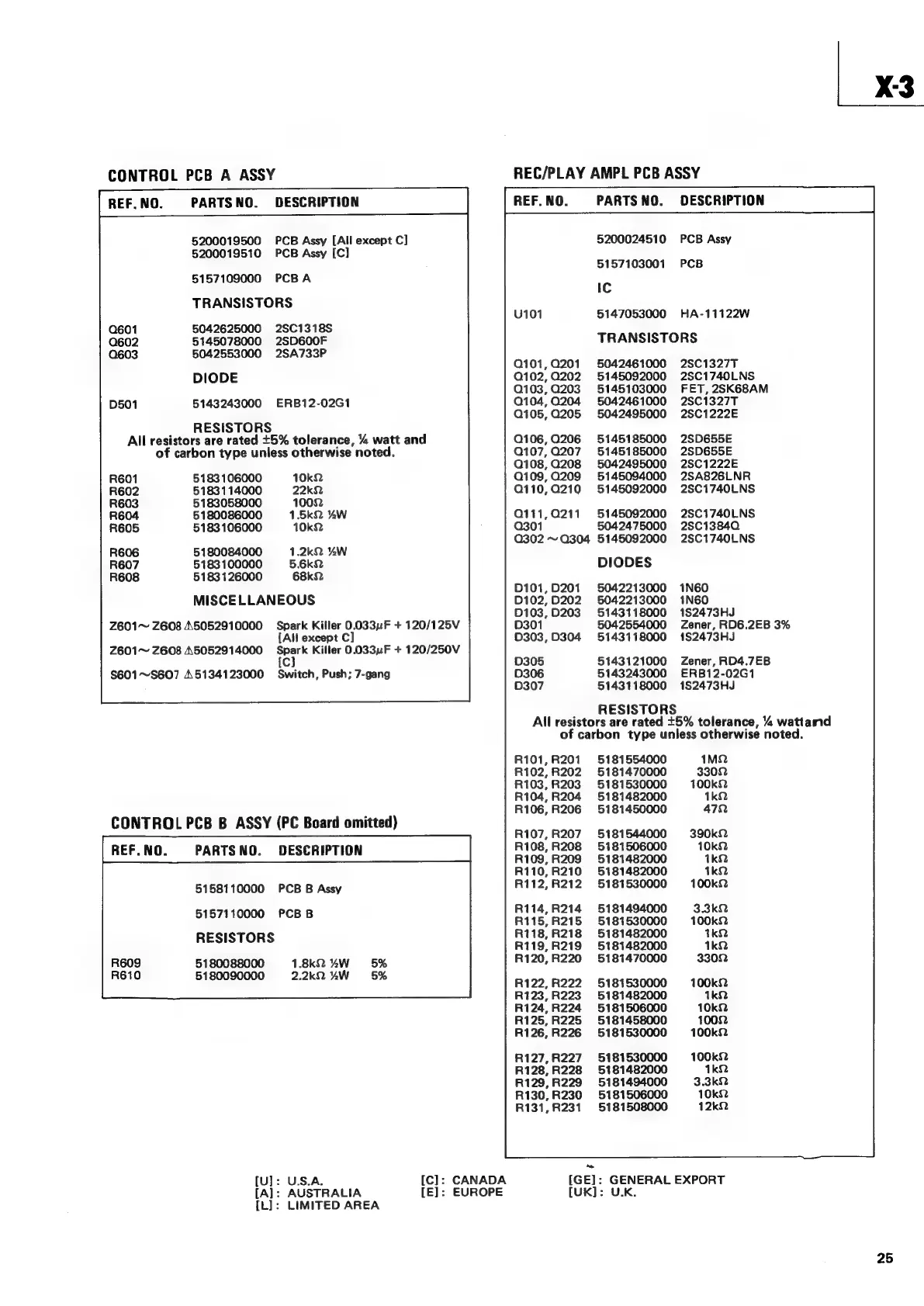

Teac X-3 - CONTROL PCB A ASSY (Component list); REC;PLAY AMPL PCB ASSY (Component list); CONTROL PCB B ASSY (Component list)

CONTROL PCB A ASSY
REF. NO. PARTS NO. DESCRIPTION
5200019500 PCB Assy [All except C]
5200019510 PCB Assy [C]
5157109000 PCBA
TRANSISTORS
5042625000 2SC1318S
5145078000 2SD600F
5042553000 2SA733P
DIODE
D501 5143243000 ERB12-02G1
RESISTORS
All resistors are rated +5% tolerance, %4 watt and
of carbon type unless otherwise noted.
R601 5183106000 10k2
R602 5183114000 22k2
R603 5183058000 1002
R604 5180086000 1.5kQ2 2W
R605 5183106000 10kQ2
R606 5180084000 1.2k2 %W
R607 5183100000 5.6k2
R608 5183126000 68k2
MISCELLANEOUS
Z601~ Z608 45052910000 Spark Killer 0.033uF + 120/125V
[All except C]
2601~ 2608 A5052914000 Spark Killer 0.033uF + 120/250V
{C}
$601~S607 45134123000 Switch, Push; 7-gang
CONTROL PCB B ASSY (PC Board omitted)
REF.NO. PARTSNO. DESCRIPTION
5158110000 PCB B Assy
5157110000 PCB B
RESISTORS
5180088000
5180090000
1.8k2 “ZW
2.2kQ2 “AW
[U]: U.S.A,
[A]: AUSTRALIA
{[L]: LIMITED AREA
[C]: CANADA
[E]: EUROPE
REC/PLAY AMPL PCB ASSY
PARTS NO. DESCRIPTION
REF. NO.
5200024510 PCB Assy
5157103001 PCB
Ic
5147053000 HA-11122W
TRANSISTORS
Q101,Q201 5042461000 2SC1327T
Q102,Q202 5145092000 2SC1740LNS
Q103,Q203 5145103000 FET, 2SK68AM
Q104,0Q204 5042461000 2SC1327T
Q105,0Q205 5042495000 2SC1222E
Q106,Q206 5145185000 2SD655E
Q107,Q207 5145185000 2SD655E
Q108,Q208 5042495000 2SC1222E
Q109,Q209 5145094000 2SA826LNR
Q110,Q210 5145092000 2SC1740LNS
Q111,Q211 5145092000 2SC1740LNS
Q301 5042475000 2SC13840
Q302 ~ 0304 5145092000 2SC1740LNS
DIODES
D101,0201 5042213000 1N60
D102,D202 5042213000 1N60
D103, D203 5143118000 1S2473HJ
D301 5042554000 Zener, RD6.2EB 3%
D303,0304 5143118000 1S2473HJ
0305 5143121000 Zener, RD4.7EB
0306 5143243000 ERB12-02G1
D307 5143118000 182473HJ
RESISTORS
All resistors are rated +5% tolerance, % wattamnd
of carbon type unless otherwise noted.
R101,R201 5181554000 IM2Q
R102,R202 5181470000 3302
R103,R203 5181530000 100k2
R104,R204 5181482000 1k2
R106,R206 5181450000 472
R107,R207 5181544000 390kQ
R108,R208 5181506000 10k2
R109,R209 5181482000 1kQ
R110,R210 5181482000 1k2Q
R112,R212 5181530000 100k
R114,R214 5181494000 3.3kQ.
R115,R215 5181530000 100k2
R118,R218 5181482000 1kQ
R119,R219 5181482000 1kQ
R120,R220 5181470000 3302
R122,R222 5181530000 100k2
R123, R223 5181482000 1k2Q
R124,R224 5181506000 10k
R125,R225 5181458000 10022
R126,R226 5181530000 100k2
R127,R227 5181530000 100k
R128,R228 5181482000 1k2
R129,R229 5181494000 3.3k2
R130,R230 5181506000 10k2
R131,R231 5181508000 12kQ
as
[GE]: GENERAL EXPORT
(UK]: U.K.
25
