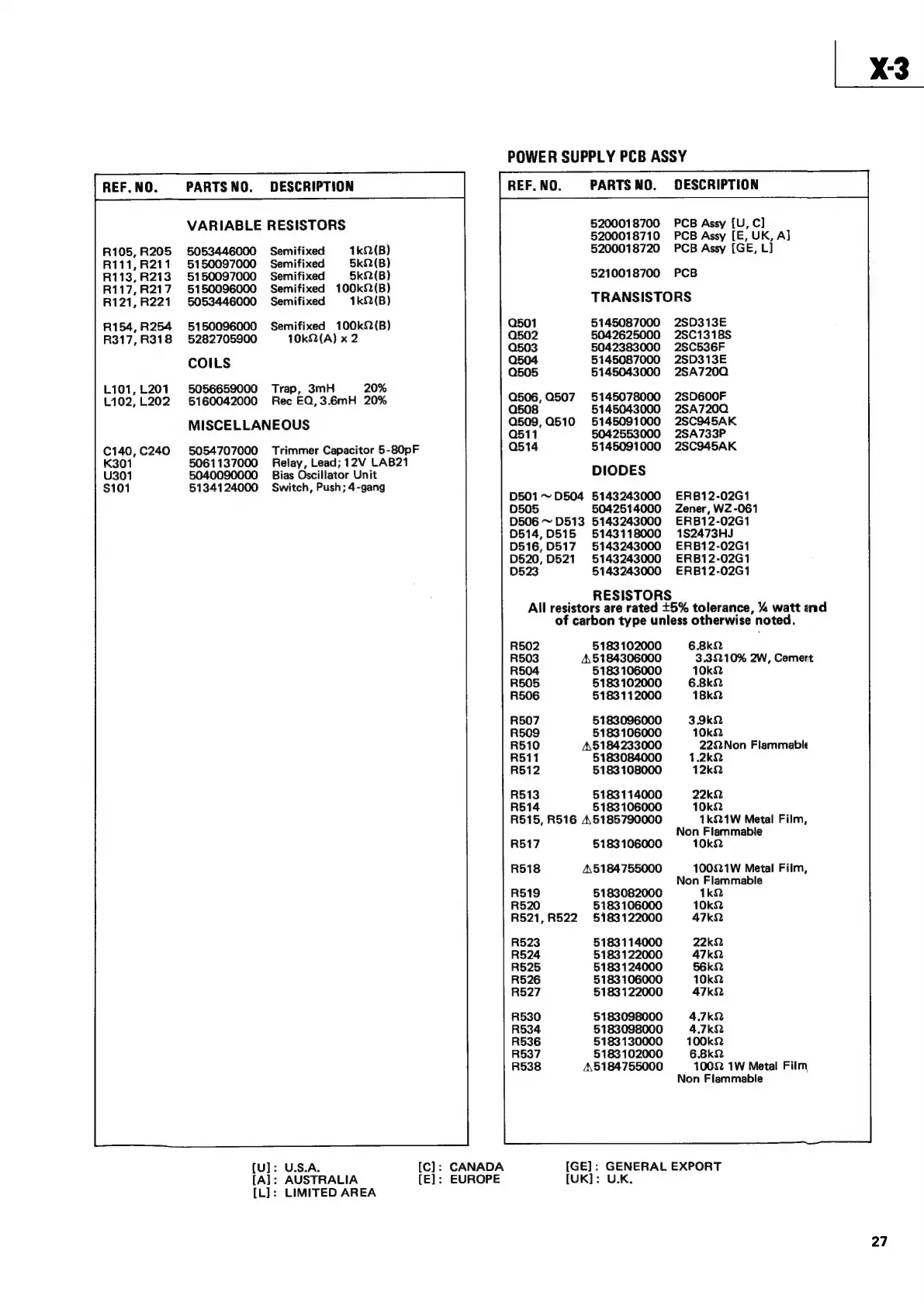

Teac X-3 - VARIABLE RESISTORS; COILS; MISCELLANEOUS; POWER SUPPLY PCB ASSY (Component list)

POWER SUPPLY PCB ASSY
REF.NO. PARTSNO. DESCRIPTION REF. NO. PARTS NO. DESCRIPTION
VARIABLE
RESISTORS
5200018700
PCB
Assy
{U,
C]
5200018710
PCB
Assy
[E,
UK,
Al
5200018720 PCB Assy [GE, L]
R105,R205 5053446000 Semifixed 1k2(B)
R111,R211 5150097000 Semifixed 5k2.(B)
R113,R213 5150097000 Semifixed 5k2(B)
R117,R217 5150096000 Semifixed 100k2(B)
R121,R221 5053446000 Semifixed 1kQ(B)
5210018700 PCB
TRANSISTORS
Q501 5145087000 2SD313E
Q502 5042625000 2SC1318S
Q503 5042383000 2SC536F
Q504 5145087000 2SD313E
Q505 5145043000 2SA7200
Q506,0507 5145078000 2SD600F
Qs08 5145043000 2SA7200
a509,0510 5145091000 2SC945AK
Q511 5042553000 2SA733P
Q514 5145091000 2SC945AK
DIODES
D501 ~~ D504 5143243000 ERB12-02G1
0505 5042514000 Zener, WZ-061
D506 ~ D513 5143243000 ERB12-02G1
D514,D515 5143118000 1S2473HJ
D516,D517 5143243000 ERB12-02G1
D520,D521 5143243000 ERB12-02G1
D523 5143243000 ERB12-02G1
R154,R254 5150096000 Semifixed 100k2(B)
R317,R318 5282705900 10kQ(A) x 2
COILS
L101,L201 5056659000 Trap, 3mH 20%
L102,L202 5160042000 Rec EQ,3.6mH 20%
MISCELLANEOUS
C140,C240 5054707000 Trimmer Capacitor 5-80pF
K301 5061137000 Relay, Lead; 12V LAB21
U301 5040090000 Bias Oscillator Unit
$101 5134124000 Switch, Push; 4-gang
RESISTORS
All resistors are rated +5% tolerance, 4 watt and
of carbon type unless otherwise noted.
R502 5183102000 6.8k2
R503 45184306000 3.3210% 2W, Cemert
R504 5183106000 10k2
R505 5183102000 6.8k2.
R506 5183112000 18k2
R507 5183096000 3.9k2
R509 5183106000 10k2
R510 A5184233000 222Non Flammable
R511 5183084000 1.2kQ
R512 5183108000 12k2
R513 5183114000 22k2
R514 5183106000 10kQ
R515, R516 457185790000 1kQ1W Metal Film,
Non Flammable
R517 5183106000 10k2.
R518 45184755000 10021W Metal Film,
Non Flammable
R519 5183082000 1kQ2
R520 5183106000 10k2
R521,R522 5183122000 47kQ
R523 5183114000 22kQ
R524 5183122000 47kQ
R525 5183124000 56k2
R526 5183106000 10k2
R527 5183122000 47kQ
R530 5183098000 4.7k2
R534 5183098000 4.7k2Q
R536 5183130000 100k
R537 5183102000 6.8k2Q
R538 45184755000 1002 1W Metal Film
Non Flammable
(U]: U.S.A. [C]: CANADA [GE]: GENERAL EXPORT
[A]: AUSTRALIA (E]: EUROPE [UK]: U.K,
[L]: LIMITED AREA
27
