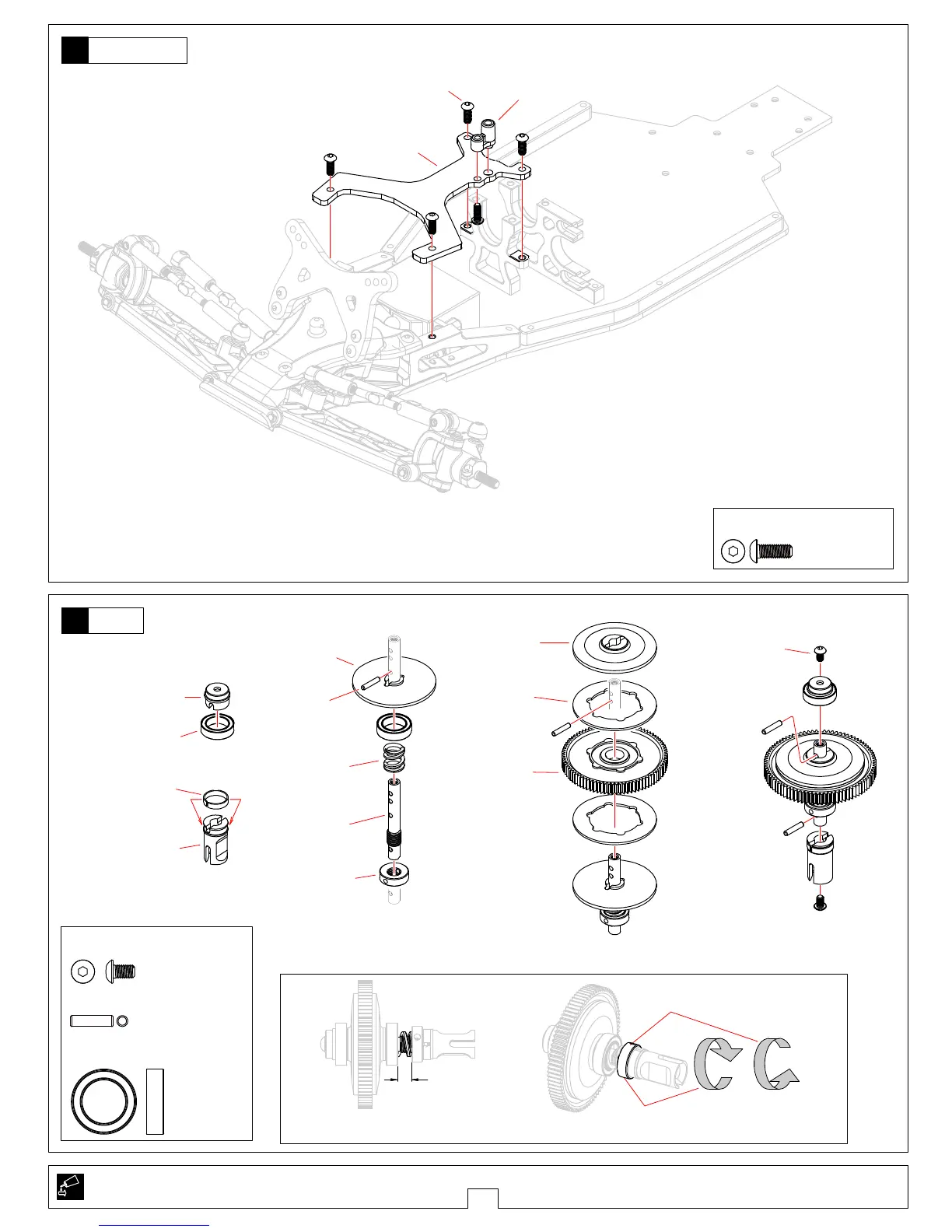

Team C TM2 V2 - Page 10

Aften first run, re-adjust to around 3.5mm
运行后再调整到3.5mm
Tighten for less slippage when traction grip
当容易抓地的時候，请按此方向调整螺母。
Loosen for more slippage
当不易抓地的時候，请按此方向调整螺母。
Mid Gear
中齿轮
Apply threadlocker(screw cement)
打螺丝胶水
3.5mm
Upper Deck-Front
二楼板-前
14
13
Screw
Cement
7
中差培林座
Center Bearing Insert
T02177
弹簧扣
Spring Buckle
T04022
中接杯-前
Mid Connecting Hub-F
T02182
扭限座-前
Slipper Hub-F
T04020
扭限弹簧
Slipper Spring
T04019
中轴
Center Shaft
T04023
扭限螺母
Slipper Nut
T04018
扭限座-后
Slipper Hub-R
T04020
扭限摩擦片
Slipper Pad
T04036
减速齿-85T
Supr Gear-85T
TR4027
10x15x4轴承
10x15x4 Ball Bearing
B101504
2x9.8钢针
2x9.8 Pin
P210
M3x5螺丝
M3x5 Screw
BS305/T08788
...........................2
..................2
.............................4
M3x5螺丝
BS305/T08788
M3x5 Screw
2x9.8钢针
P210/T04032 2x9.8 Pin
天线管座
Antenna Pipe Mount
T04055
M3x8螺丝
M3x8 Screw
BS308/T01114
前二楼板
Front Top Deck
T02242
......................5
M3x8螺丝
BS308/T01114
M3x8 Screw
B101504/T02099
10x15x4轴承
10x15x4 Ball Bearing
