Team C TM2 V2 - Page 15

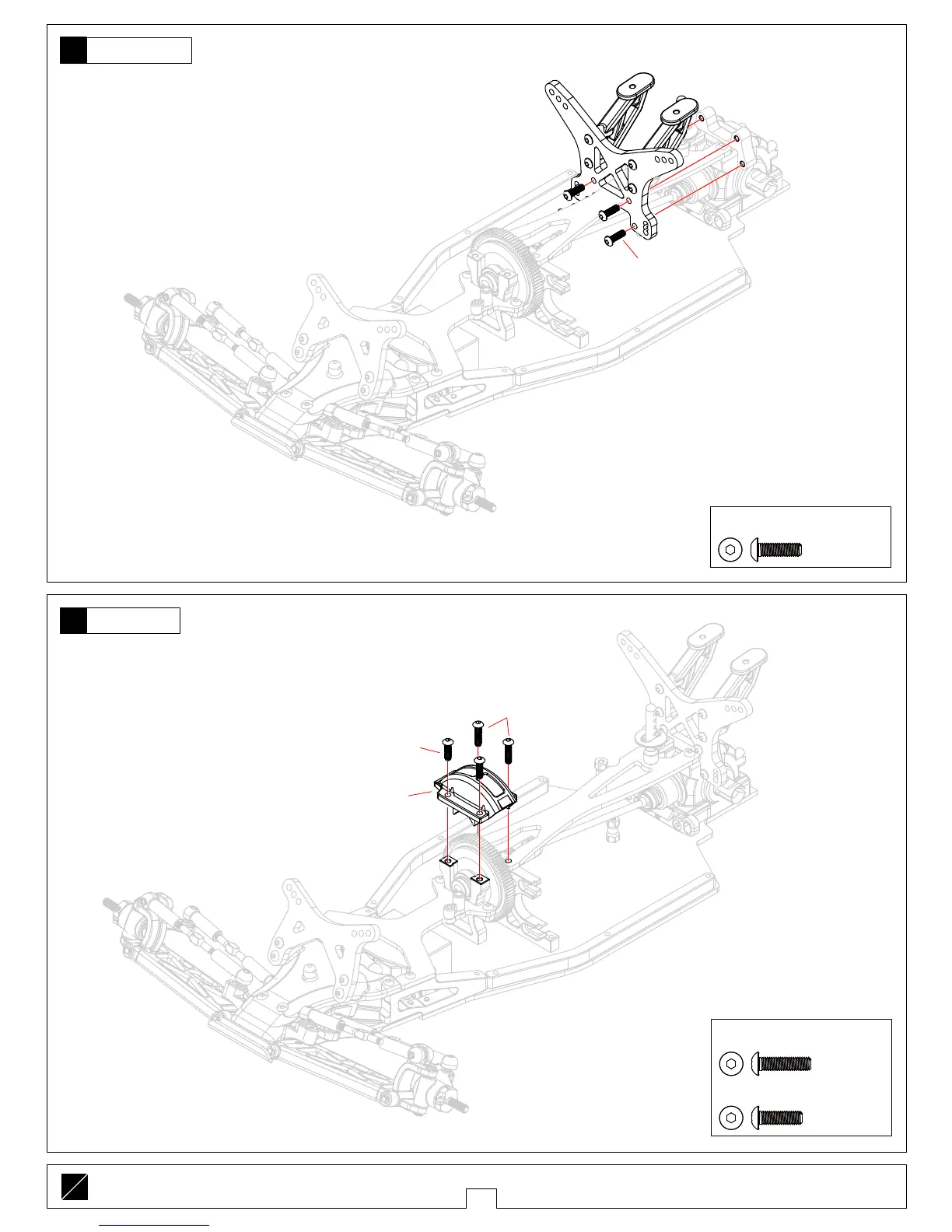

Rear Shock Tower
后避震架
Spur Gear Cover
减速齿轮盖
Assemble both Left and Right
组装左和右
24
23
L
R
12
M3x10螺丝
M3x10 Screw
BS310/T01115
M3x10螺丝
M3x10 Screw
BS310/T01115
中齿轮箱-上盖
Center Gear-box-Cover
T02247
M3x12螺丝
M3x12 Screw
BS312/T01116
......................4
M3x10螺丝
BS310/T01115
M3x10 Screw
..................2
M3x12螺丝
BS312/T01116
M3x12 Screw
......................2
M3x10螺丝
BS310/T01115
M3x10 Screw
