Team C TM2 V2 - Page 7

7
8

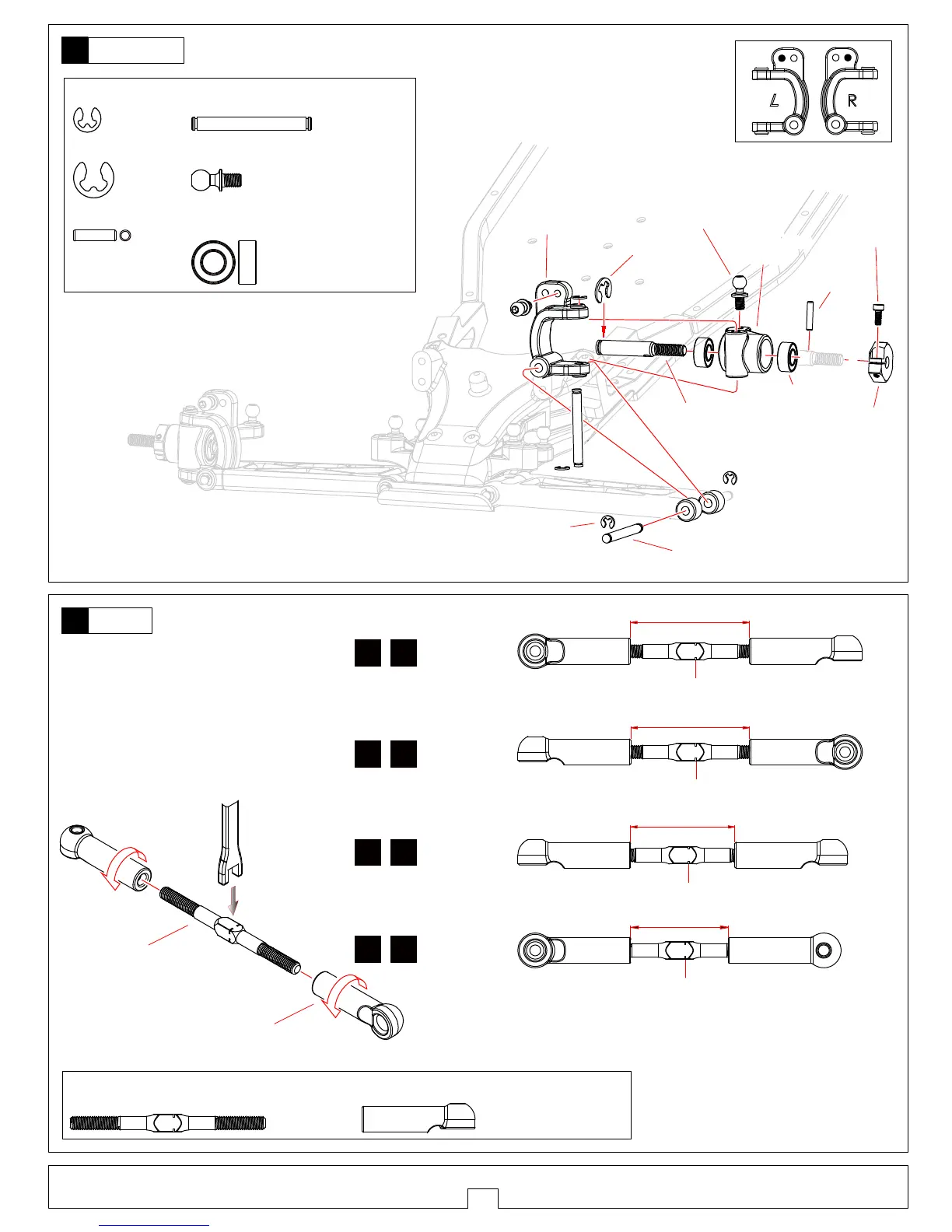

Front Suspension
Turnbuckle
拉杆
approx.28mm
大约28mm
approx.28mm
大约28mm
approx 24mm
大约24mm
前悬吊系统
TS4043
Ball Stud-Short
球头-短
4
▲Projection.Note direction
注意方向
▲Projection.Note direction
注意方向
▲Projection.Note direction
注意方向
...................6
3x45拉杆
T04107 3x45 Turnbuckle
..................................12
4.8mm球头座-长
T04014 4.8mm Ball End-Long
3x45拉杆
3x45 Turnbuckle
T04107
4.8mm球头座-长
4.8mm Ball End-Long
T04014
4mm
Front Upper-L
前上拉杆-左
1:1 x1
Front Upper-R
前上拉杆-右
1:1 x1
Steering Tip
转向拉杆
1:1 x2
C型座-L
C-Type Holder-L
T02011
转向臂-L
Steering Block-L
T02012
六角座
Hex Mount
T02245
前轮轴
Front Wheel Axle
T02042
3X27.5前摆臂销-外
3X27.5 Hinge Pin Front-Outer
T02054
M2x5螺丝
M2x5 Screw
T02245
2x9.8钢针
2x9.8 Pin
T02042
2.3 E 扣
2.3 E-ring
T02054
4.0 E 扣
4.0 E-ring
T02042
5x10x4轴承
5x10x4 Ball Bearing
B051004/T02100
……………8
………….2
………2
2.3 E 扣
T02054 2.3 E-ring
4.0 E 扣
T02042 4.0 E-ring
2x9.8钢针
T02042 2x9.8 Pin
………............4
…………............................4
………...........................4
前摆臂销-外
T02054 3X27.5 Hinge Pin Front-Outer
球头-短
TS4043
Ball Stud-Short
▲Projection.Note direction
注意方向
approx 22.5mm
大约22.5mm
Rear Upper
后上拉杆
1:1 x2
B051004/T02100
5x10x4轴承
5x10x4 Ball Bearing
