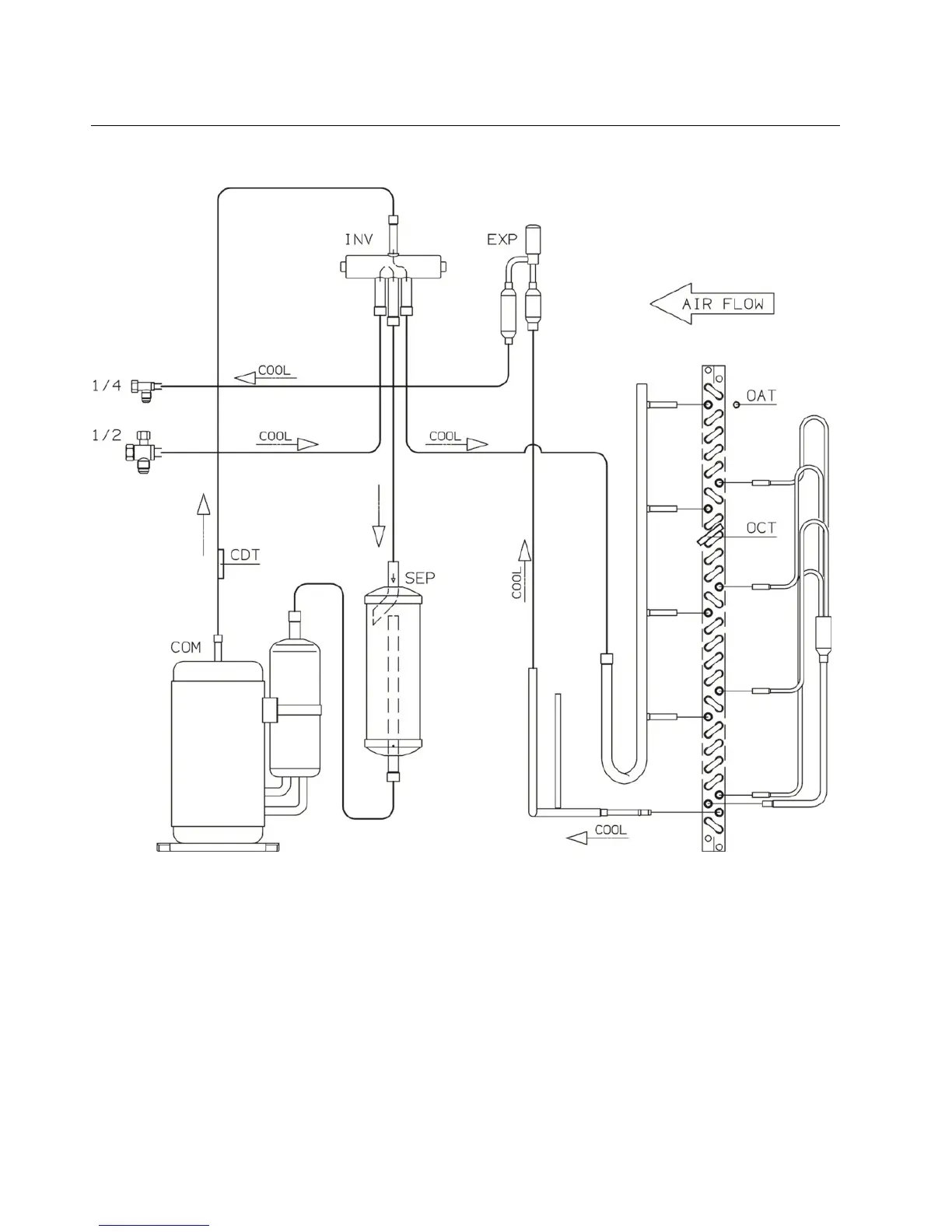

Note:
- In heating mode the refrigerant flow is in the opposite direction of the COOL arrows
- INV: 4-way valve
- EXP: Electronic Expansion Valve
- COM: Compressor
GR9FI50LTR5IAA
