Technics RS-640US

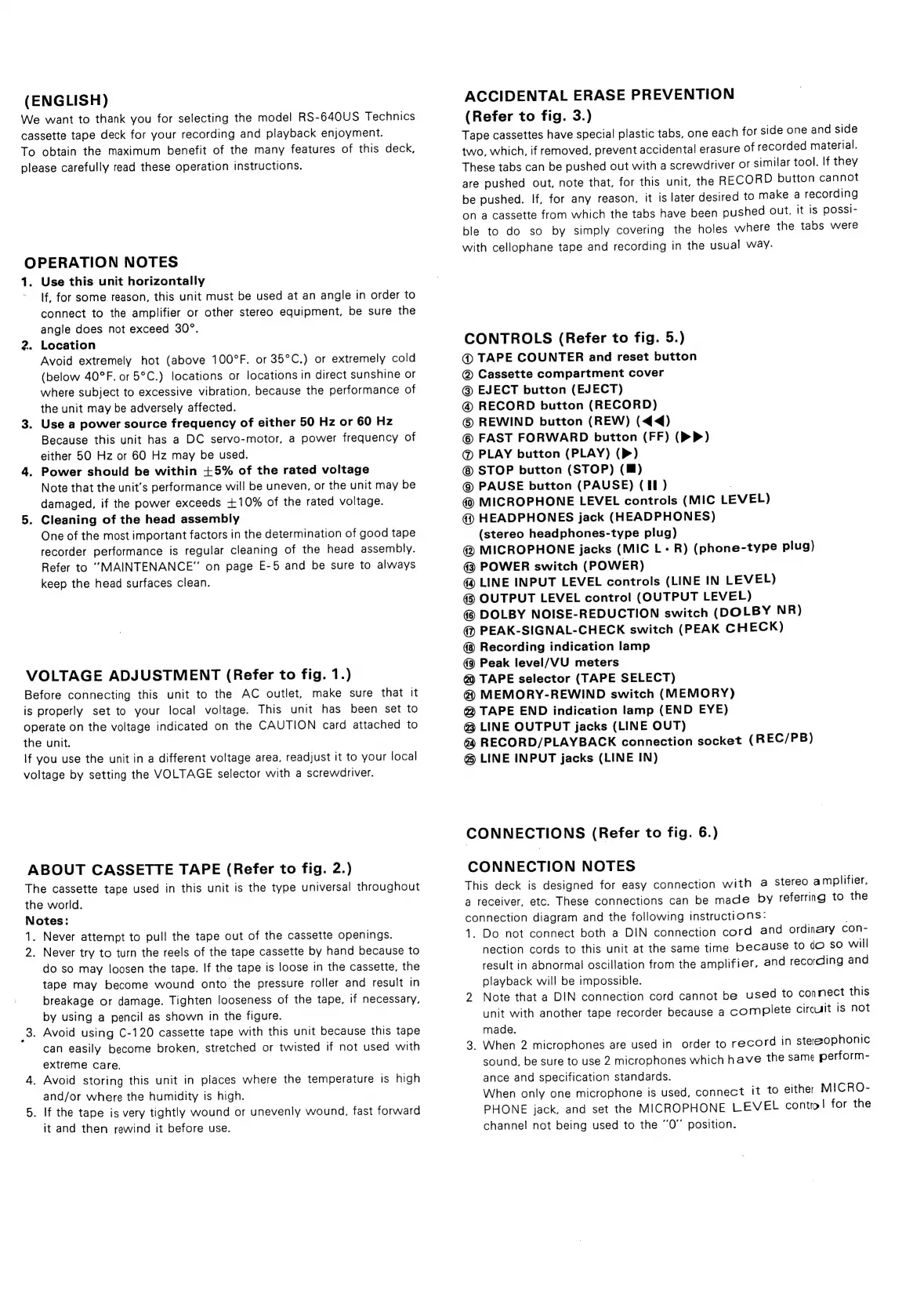

(ENGLISH)
We
want
to
thank
you
for
selecting
the
model
RS-640US
Technics
cassette
tape
deck
for
your
recording
and
playback
enjoyment.
To
obtain
the
maximum
benefit
of
the
many
features
of
this
deck,
please
carefully
read
these
operation
instructions.
OPERATION NOTES
1. Use this unit horizontally
~
If,
for
some
reason,
this
unit
must
be
used
at
an
angle
in
order
to
connect
to
the
amplifier
or
other
stereo
equipment,
be
sure
the
angle
does
not
exceed
30°.
2. Location
Avoid
extremely
hot
(above
100°F.
or
35°C.)
or
extremely
cold
(below
40°F.
or
5°C.)
locations
or
locations
in
direct
sunshine
or
where
subject
to
excessive
vibration,
because
the
performance
of
the unit may be adversely affected.
3.
Use
a
power
source
frequency
of
either
50
Hz
or
60
Hz
Because
this unit
has
a
DC
servo-motor,
a
power
frequency
of
either
50
Hz
or
60
Hz
may
be
used.
4. Power should be within +5% of the rated voltage
Note
that
the
unit’s
performance
will
be
uneven,
or
the
unit
may
be
damaged,
if
the
power
exceeds
+10%
of
the
rated
voltage.
5. Cleaning of the head assembly
One
of
the
most
important
factors
in
the
determination
of
good
tape
recorder
performance
is
regular
cleaning
of
the
head
assembly.
Refer
to
“MAINTENANCE”
on
page
E-5
and
be
sure
to
always
keep the head surfaces clean.
VOLTAGE ADJUSTMENT (Refer to fig. 1.)
Before
connecting
this
unit
to
the
AC
outlet,
make
sure
that
it
is
properly
set
to
your
local
voltage.
This
unit
has
been
set
to
operate
on
the
voltage
indicated
on
the
CAUTION
card
attached
to
the
unit.
If you use the unit in a different voltage area, readjust it to your local
voltage by setting the VOLTAGE selector with a screwdriver.
ABOUT CASSETTE TAPE (Refer to fig. 2.)
The cassette tape used in this unit Is the type universal throughout
the world.
Notes:
1. Never attempt to pull the tape out of the cassette openings.
2. Never try to turn the reels of the tape cassette by hand because to
do so may loosen the tape. If the tape is loose in the cassette, the
tape may become wound onto the pressure roller and result in
breakage or damage. Tighten looseness of the tape, if necessary,
by using a pencil as shown in the figure.
3. Avoid using C-120 cassette tape with this unit because this tape
can easily become broken, stretched or twisted if not used with
extreme care.
4. Avoid storing this unit in places where the temperature is high
and/or where the humidity is high.
5. If the tape is very tightly wound or unevenly wound, fast forward
it and then rewind it before use.
ACCIDENTAL ERASE PREVENTION
(Refer to fig. 3.)
Tape
cassettes
have
special
plastic
tabs,
one
each
for
side
one
and
side
two,
which,
if
removed,
prevent
accidental
erasure
of
recorded
material.
These
tabs
can
be
pushed
out
with
a
screwdriver
or
similar
tool.
If
they
are
pushed
out,
note
that,
for
this
unit,
the
RECORD
button
cannot
be
pushed.
If,
for
any
reason,
it
is
later
desired
to
make
a
recording
on
a
cassette
from
which
the
tabs
have
been
pushed
out,
it
is
possi-
ble
to
do
so
by
simply
covering
the
holes
where
the
tabs
were
with
cellophane
tape
and
recording
in
the
usual
way.
CONTROLS (Refer to fig. 5.)
@ TAPE COUNTER and reset button
@ Cassette compartment cover
@ EJECT button (EJECT)
@ RECORD button (RECORD)
6 REWIND button (REW) (44)
© FAST FORWARD button (FF) (>>)
@ PLAY button (PLAY) (>)
STOP button (STOP) (@)
©
PAUSE
button
(PAUSE)
(II
)
MICROPHONE
LEVEL
controls
(MIC
LEVEL)
@
HEADPHONES
jack
(HEADPHONES)
(stereo headphones-type plug)
@
MICROPHONE
jacks
(MIC
L-
R)
(phone-type
plug)
@
POWER
switch
(POWER)
LINE
INPUT
LEVEL
controls
(LINE
IN
LEVEL)
@ OUTPUT LEVEL control (OUTPUT LEVEL)
DOLBY NOISE-REDUCTION switch (DOLBY NR)
@
PEAK-SIGNAL-CHECK
switch
(PEAK
CHECK)
Recording indication lamp
Peak level/VU meters
@ TAPE selector (TAPE SELECT)
@) MEMORY-REWIND switch (MEMORY)
@ TAPE END indication lamp (END EYE)
@ LINE OUTPUT jacks (LINE OUT)
@
RECORD/PLAYBACK
connection
socket
(REC/PB)
@
LINE
INPUT
jacks
(LINE
IN)
CONNECTIONS (Refer to fig. 6.)
CONNECTION NOTES
This
deck
is
designed
for
easy
connection
with
a
stereo
amplitier,
a
receiver,
etc.
These
connections
can
be
made
by
referring
to
the
connection
diagram
and
the
following
instructions:
1.
Do
not
connect
both
a
DIN
connection
cord
and
ordinary
con-
nection cords to this unit at the same time because to do so will
result
in
abnormal
oscillation
from
the
amplifier,
and
recording
and
playback will be impossible.
2
Note
that
a
DIN
connection
cord
cannot
be
used
to
connect
this
unit with another tape recorder because a complete circuit is not
made.
3.
When
2
microphones
are
used
in
order
to
record
in
steeeophonic
sound,
be
sure
to
use
2
microphones
which
have
the
same
perform-
ance
and
specification
standards.
When
only
one
microphone
is
used,
connect
it
to
either
MICRO-
PHONE
jack,
and
set
the
MICROPHONE
LEVEL
contro!
for
the
channel
not
being
used
to
the
“0”
position.
