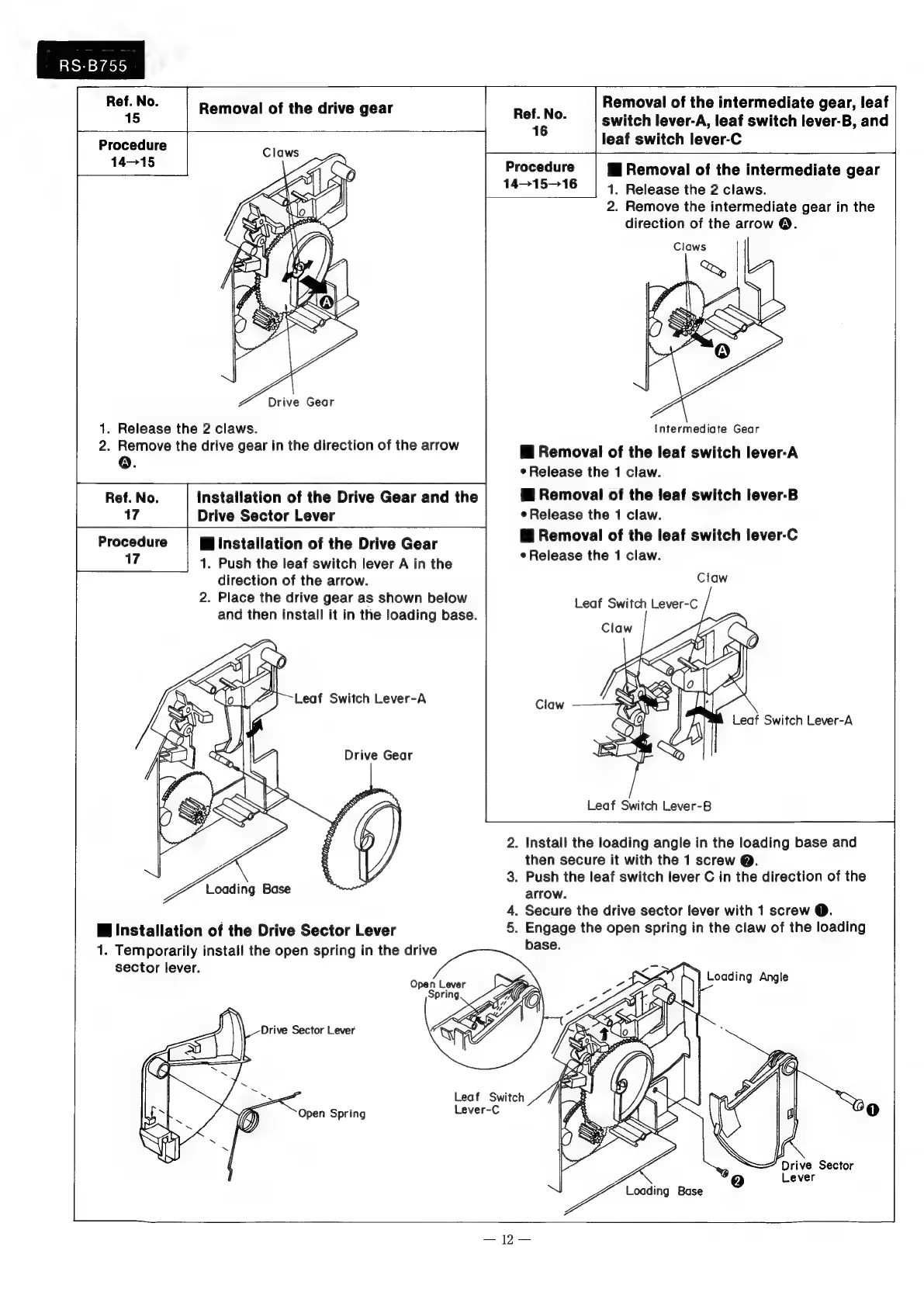

Removal
of
the
drive
gear
Procedure
14-15
Removal of the intermediate gear, leaf
switch lever-A, leaf switch lever-B, and
leaf switch lever-C
Procedure
14-15-16
@ Removal of the intermediate gear
1. Release the 2 claws.
2. Remove the intermediate gear in the
direction of the arrow ®.
Drive Gear
Intermediate Gear
Hi Removal of the leaf switch lever-A
e Release the 1 claw.
@ Removal of the leaf switch lever-B
e Release the 1 claw.
Hi Removal of the leaf switch lever-C
e Release the 1 claw.
1. Release the 2 claws.
2. Remove the drive gear in the direction of the arrow
@ Installation of the Drive Gear
1. Push the leaf switch lever A in the
direction of the arrow.
2. Place the drive gear as shown below
and then install it in the loading base.
Procedure
17
Claw
Leaf Switch Lever-C
Claw
Leaf Switch Lever-A
Leaf Switch Lever-B
2. Install the loading angle in the loading base and 7
then secure it with the 1 screw @.
3. Push the leaf switch lever C in the direction of the
arrow.
4. Secure the drive sector lever with 1 screw @.
5. Engage the open spring in the claw of the loading
base.
i Installation of the Drive Sector Lever
1. Temporarily install the open spring in the drive
sector lever.
Leaf Switch
Lever-C
Drive Sector
Lever
