RS-X102

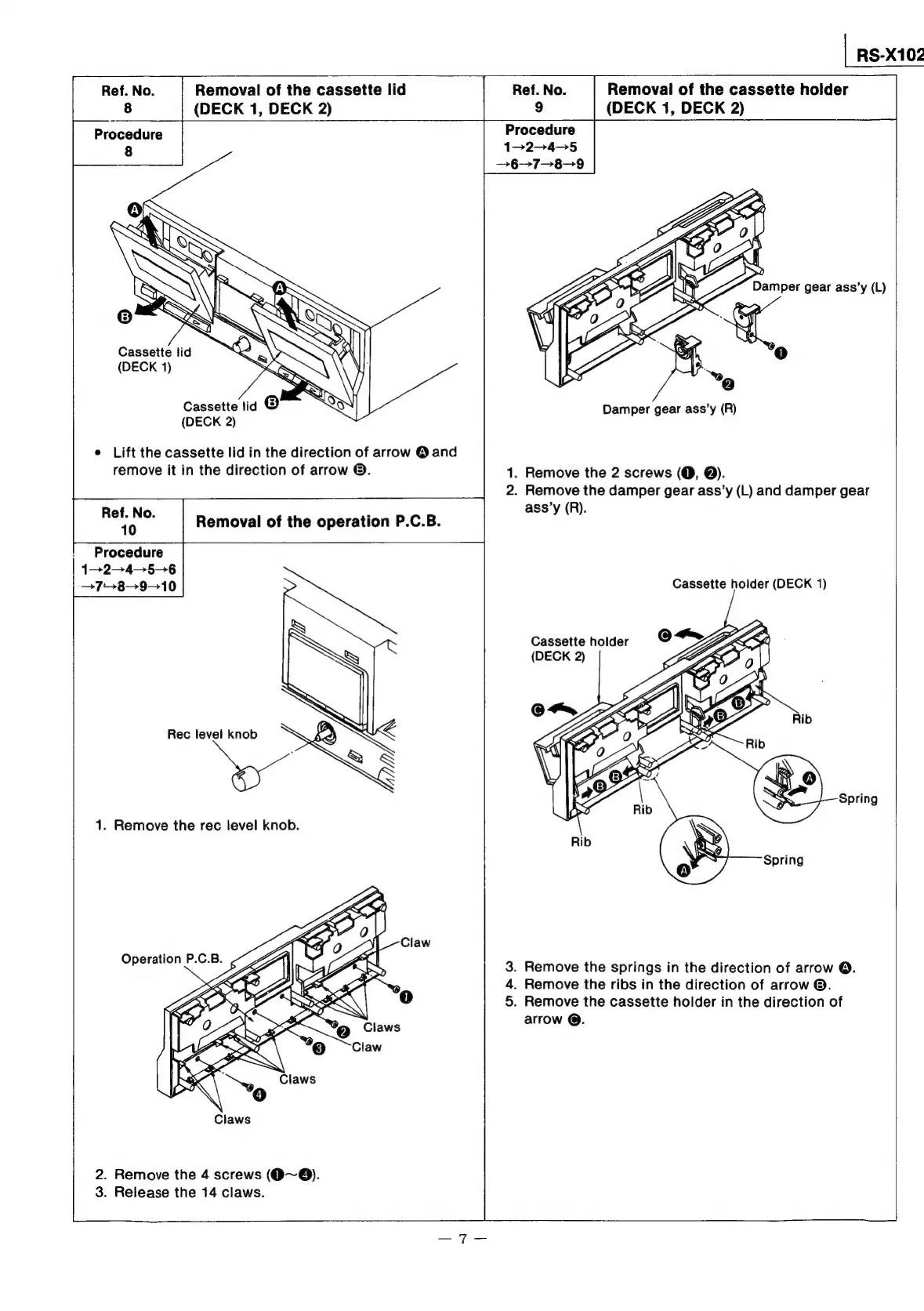

Removal of the cassette lid Removal of the cassette holder
(DECK 1, DECK 2) (DECK 1, DECK 2)
Procedure
1324-5
—6—7-8--9
Cassette lid
(DECK 1)
Cassette lid ©
Damper gear ass’y (R)
(DECK 2)
e Lift the cassette lid in the direction of arrow @ and
remove it in the direction of arrow ©. 1. Remove the 2 screws (O, @).
2. Remove the damper gear ass’y (L) and damper gear
Ref.
No.
:
ass’y
(R).
10 Removal of the operation P.C.B.
Procedure
1-24-56
78-910
Cassette holder (DECK 1)
SS
SN
Rec level knob XS
; & x
SS
1. Remove the rec level knob.
. Remove the springs in the direction of arrow ©.
. Remove the ribs in the direction of arrow ©.
. Remove the cassette holder in the direction of
arrow @.
oe ©
3. Release the 14 claws.
| 2. Remove the 4 screws (@~®@).
