RS-X102
Ref.
No.
P
11
|

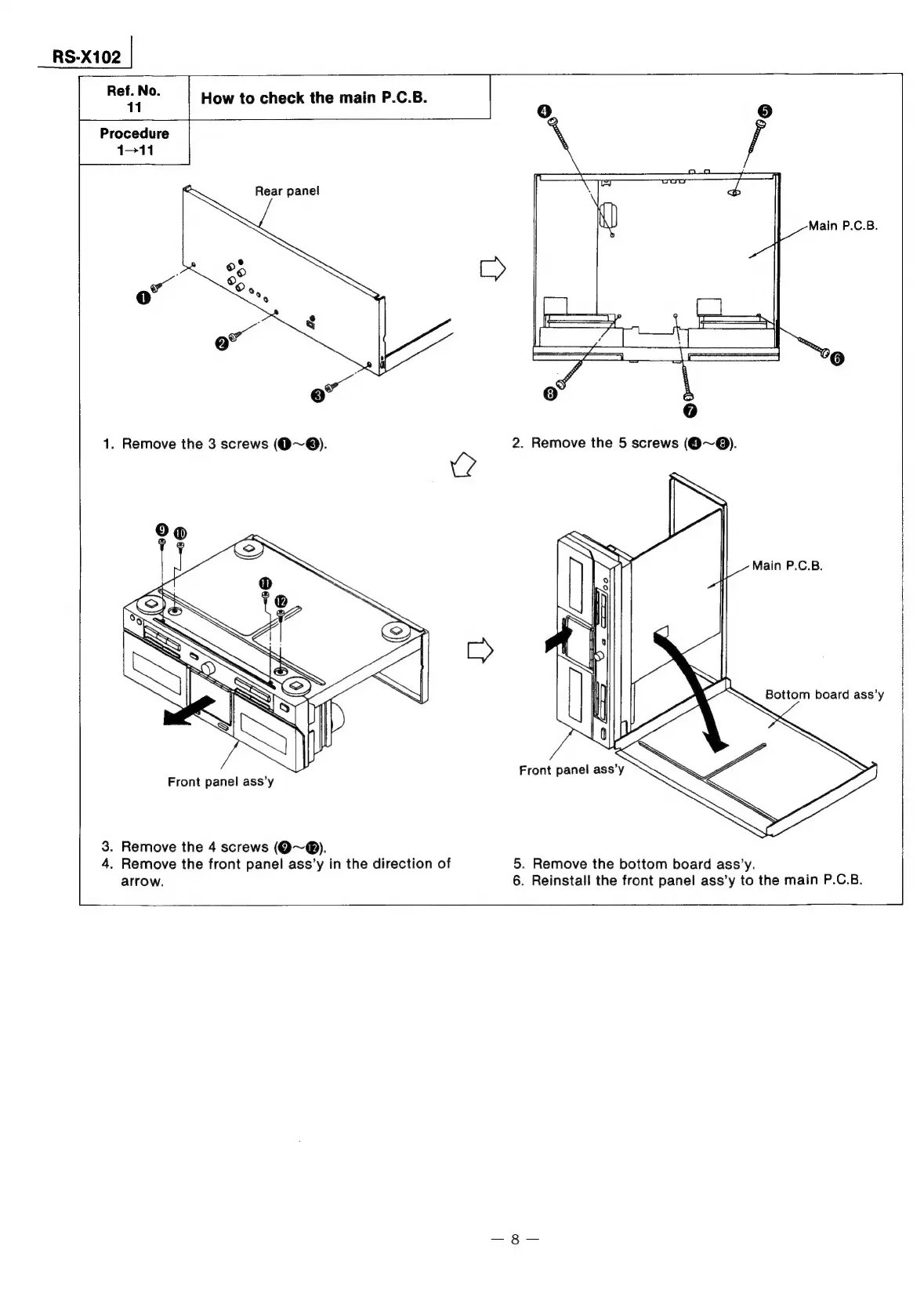

How
to
check
the
main
P.C.B.
|
0
Ps
Procedure
%
1-11
Rear
panel
Front
panel
ass’y
3.
Remove
the
4
screws
(O~®).
4.
Remove
the
front
panel
ass’y
in
the
direction
of
5.
Remove
the
bottom
board
ass’y.
arrow.
6.
Reinstall
the
front
panel
ass’y
to
the
main
P.C.B.
