Technics SA-DA15 User Manual

IN IN
FRONT
SURROUND CENTER
LF HF
+
–
+
–
AC IN
A
BI-WIRE
VCR 1 TVDVD
S-VIDEO
RLRL
RLRL
RL
RL
B
MONITOR
OUT
LOOP ANT
HOLDER
GND
OPTICAL 1 (TV)
OPTICAL 2 (DVD)
COAXIAL
FRONT
RL
SUBWOOFER
IN
CENTER
SURROUND
R
SURROUND
L
RLIN
IN
IN
IN
IN
IN
IN
OUT
OUT
VCR 2 VCR 1
REC
(OUT)
PLAY
(IN)
DIGITAL IN
DVD/
DVD 6CH
TV
MONITOR OUT
TV
SUBWOOFER
OUT
CD TAPE
PHONO
L
R
R
L
R
L
FM
ANT
75 Ω
EXT
AM
ANT
LOOP
LOOP ANT
HOLDER
GND
OPTICAL 1 (TV)
OPTICAL 2 (DVD)
COAXIAL
FRONT
RL
SUBWOOFER
IN
CENTER
SURROUND
R
SURROUND
L
RLIN
IN
IN
IN
IN
IN
IN
OUT
OUT
VCR 2 VCR 1
REC
(OUT)
PLAY
(IN)
DIGITAL IN
DVD/
DVD 6CH
TV
MONITOR OUT
TV
SUBWOOFER
OUT
CD TAPE
PHONO
L
R
R
L
R
L
FM
ANT
75 Ω
EXT
AM
ANT
LOOP
5–12 m
9
RQT5861

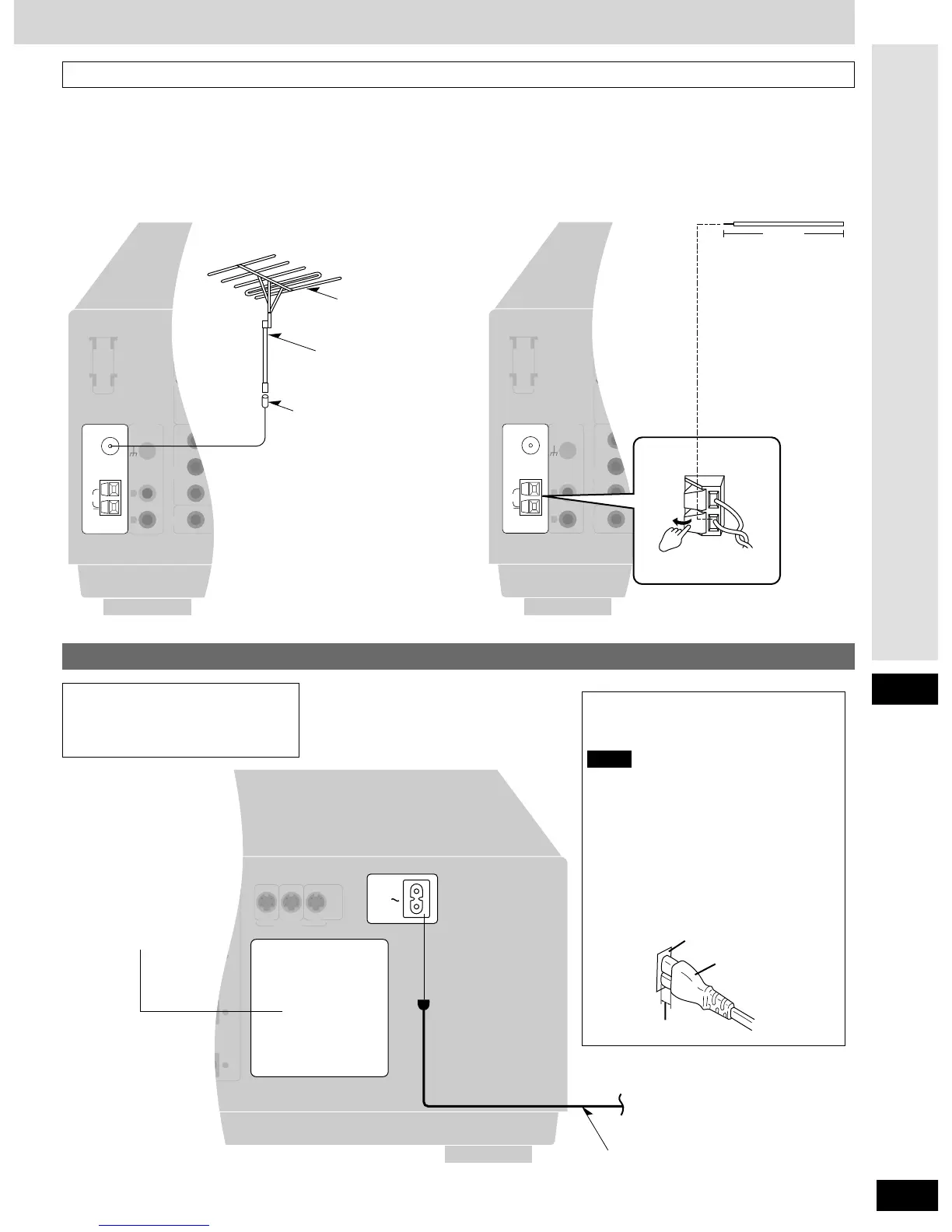

Connections
Connecting the AC mains lead and other information
To connect an outdoor antenna
FM outdoor antenna
¡Disconnect the FM indoor antenna.
¡The antenna should be installed by a competent technician.
AM outdoor antenna
¡Run a piece of vinyl wire horizontally across a window or other
convenient location.
¡Leave the loop antenna connected.
¡Disconnect the antenna when the unit is not in use. Do not use
the antenna during an electrical storm.
c Vinyl-covered wire
[Only for the United Kingdom]
Antenna plug (included)
a FM outdoor antenna
b 75 Ω coaxial cable
e To household
mains socket
d Cooling fan
The cooling fan operates
at high power output
levels only.
f AC mains lead (included)
AC mains lead
Connect this lead only after all other cables
and cords are connected.
The included AC mains lead is for use with
this unit only. Do not use it with other
equipment.
Insertion of Connector
Even when the connector is perfectly inserted,
depending on the type of inlet used, the front
part of the connector may jut out as shown in
the drawing.
However there is no problem using the unit.
Note
g Appliance inlet
i Approx. 6 mm
h Connector
(FOR THE UNITED KINGDOM ONLY)
READ THE CAUTION FOR THE
AC MAINS LEAD ON PAGE 4
BEFORE CONNECTION.
