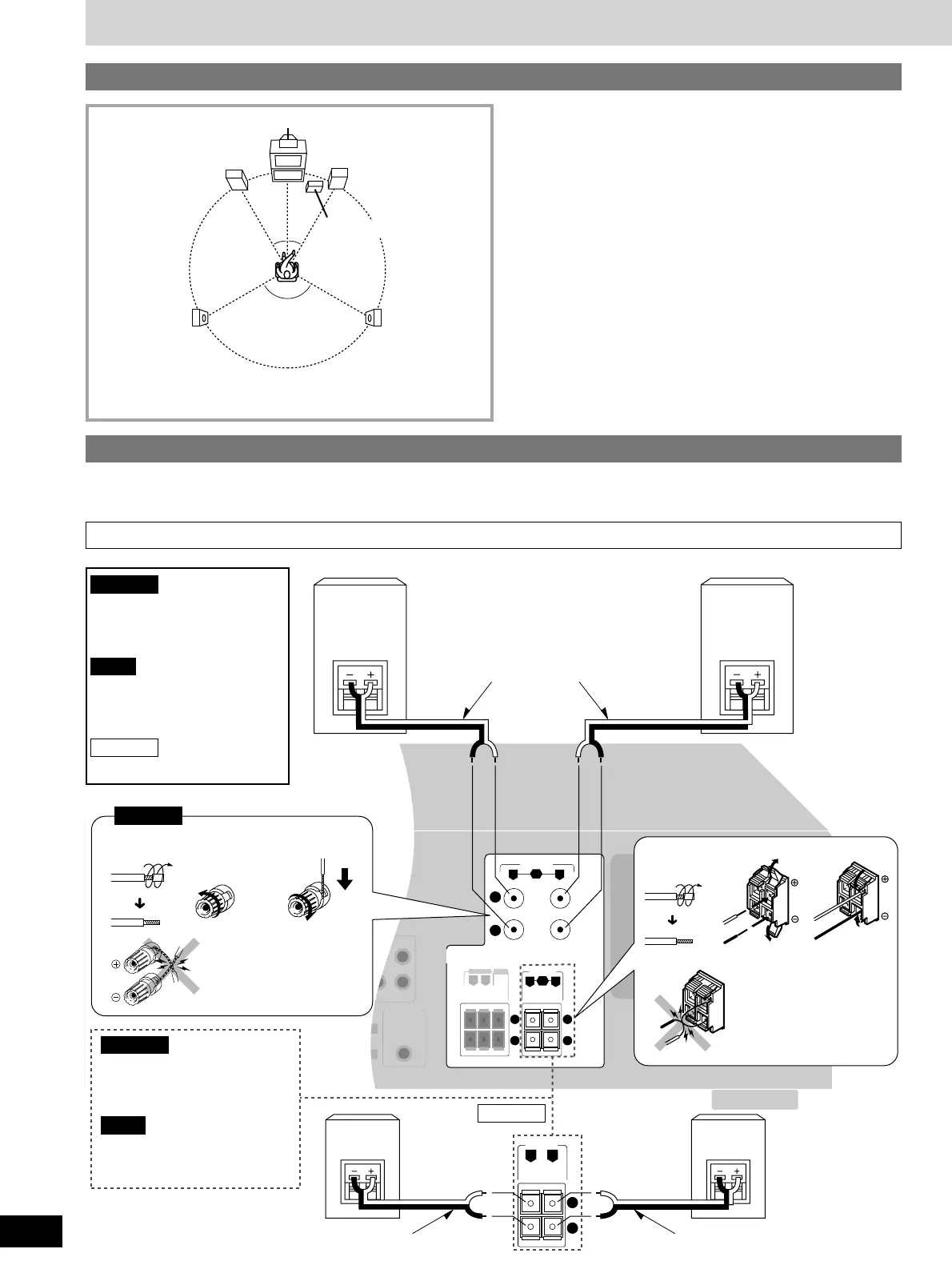

b Front speaker
(left)
d Subwoofer
e Surround speaker
(left)
f Surround speaker
(right)
a Center speaker
c Front speaker
(right)
Front speakers
Place on the left and right of the TV at seated ear height so that
there is good coherency between the picture and sound.
Center speaker
Place underneath or above the center of the TV. Aim the speaker at
the seating area.
Surround speakers
Place on the side of or slightly behind the seating area, about one
meter higher than ear level.
Subwoofer
The subwoofer can be placed in any position as long as it is at a
reasonable distance from the TV.
Note that some experimentation can yield the smoothest low
frequency performance. Placement near a corner can increase the
apparent output level, but can result in unnatural bass.
Other connections are possible depending on your speaker system.
See your speaker system’s operating instructions for details.
g Front speaker
(right)
i Speaker cables
k Speaker cable l Speaker cable
j Front speaker
(right)
m Front speaker
(left)
h Front speaker
(left)
Speaker impedance:
A or B: 4-16 Ω
A and B: 8-16 Ω
If you connect speakers with an
impedance under 6 Ω, switch on
“LOW IMP” (
\
page 14).
Speaker impedance
: 6-16 Ω
SA-DX750
Note
SA-DX850
“B” terminals
For connection to a second pair of
speakers.
Use the A terminals to enjoy
SURROUND, SFC and DVD 6CH
INPUT.
Note
SA-DX850
The front, center, and surround speakers should be placed at
approximately the same distance from the seating area. The angles
in the diagram are approximate.
SA-DX750
