Technics SA-DX850 User Manual

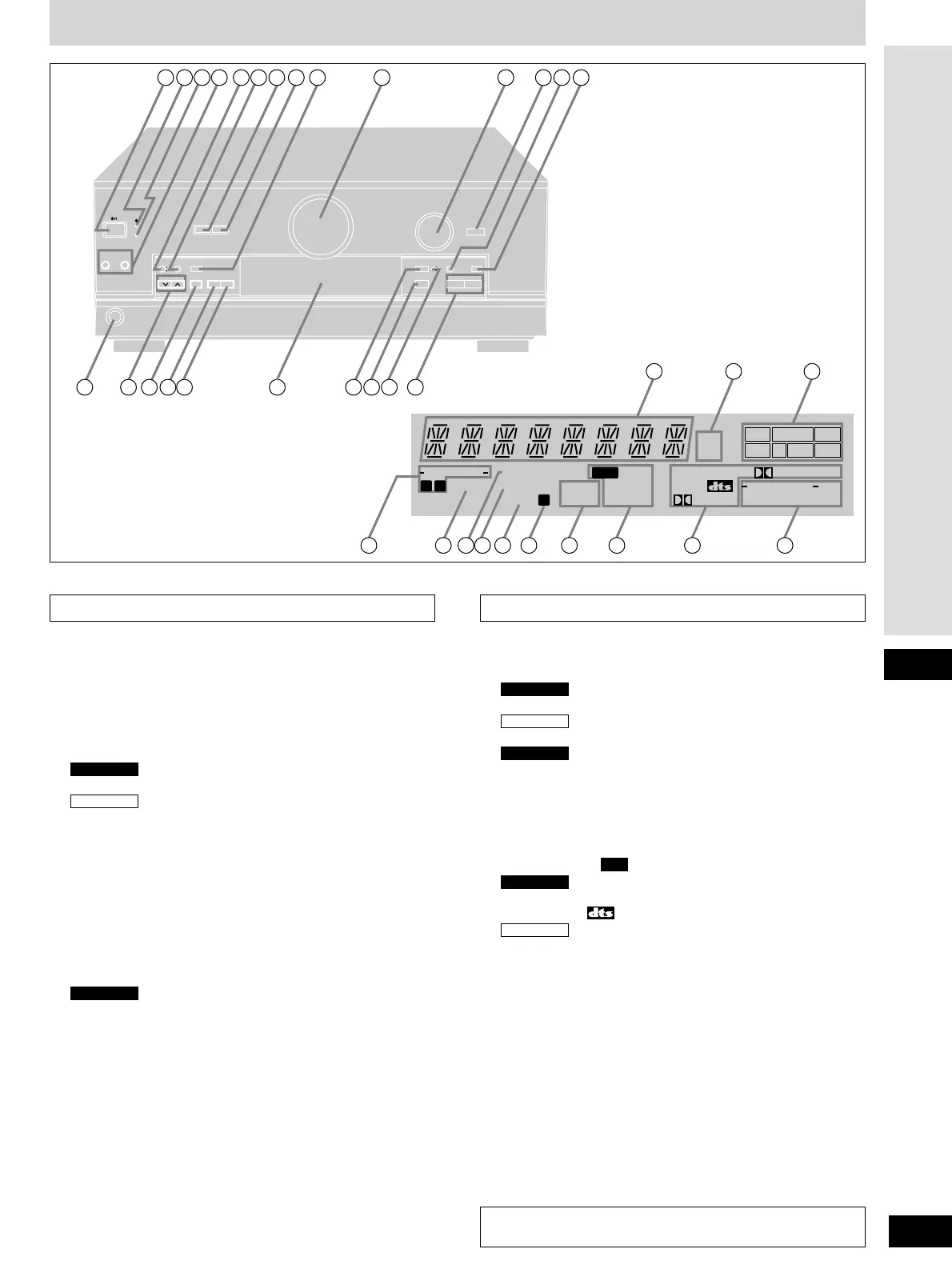

Control reference guide
5
RQT5818
Before use
TUNED
MONO
LOW IMP
SPEAKERS
EON
PS
PTYRT
kHz
MHz
PRO LOGIC
DIGITALWAKE
SLEEP
SOUND MODE
STEREO SURROUND
SFC
LCR
LS S LFE RS
PCM
FIXED
M
RDS
AB
INPUT SELECTOR
TAPE MONITOR
BASS/TREBLE
BALANCE
UP
VOLUME
DOWN
SPEAKERS
PHONES
PRESET BAND FM MODE
TUNING
AB
DVD 6CH INPUT
LR
– +
DIGITAL INPUT
25 26 27
28 29 30 31 32 33 363534 37
STEREO
TIMER MEMORYRDS
SFC MODE
DSP
SOUND MODE
10 11 12 13 14
15 16 17 18 19 20 21 22 23 24
4 5 6
1 2 3
7 8 9
EONDISPLAY MODE PTY SEARCH
MODE
TIME
WAKE
HELP
RESET
PTY SELECTOR
Main unit Display section
qq
Standby/on switch [8]........................................................(13)
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of power.
ww
Standby indicator [^]
When the unit is connected to the AC mains supply, this
indicator lights up in standby mode and goes out when the unit
is turned on.
ee
Wake indicator [WAKE] .......................................................(27)
rr
Speaker select buttons [SPEAKERS, A, B]..................(13, 18)
Speaker on/off button [SPEAKERS].............................(15, 18)
tt
RDS button [RDS].................................................................(24)
yy
Timer button [TIMER, -MODE, –TIME] ................................(27)
uu
DSP sound mode select button
[DSP SOUND MODE]......................................................(13, 18)
ii
SFC mode select button [SFC MODE]..........................(13, 18)
oo
Memory button [MEMORY]..................................................(23)
!!00
Volume control [VOLUME] ..................................................(18)
!!11
Input selector [INPUT SELECTOR].....................................(18)
!!22
Digital input select button/indicator [DIGITAL INPUT]......(18)
!!33
Help/reset button [-HELP, –RESET]....................................(28)
!!44
DVD 6ch input select button/indicator [DVD 6CH INPUT] .....(19)
!!55
Headphone jack [PHONES] .................................................(20)
!!66
Tuning/PTY select buttons
[TUNING, PTY SELECTOR, 2, 1]..................................(22, 24)
!!77
Preset channel/display mode button
[PRESET, DISPLAY MODE] ...........................................(23, 24)
!!88
Band select/EON button [BAND, EON].........................(22, 25)
!!99
FM mode select/PTY search button
[FM MODE, PTY SEARCH].............................................(22, 24)
@@00
Display section
@@11
Tape monitor button [TAPE MONITOR]..............................(21)
@@22
Tone and balance select button
[BASS/TREBLE, BALANCE]................................................(20)
@@33
Tape monitor indicator ........................................................(21)
@@44
Tone and balance adjust buttons [–, +, L, R].....................(20)
SA-DX850
SA-DX750
SA-DX850
@@55
Display
@@66
Frequency unit indicators [kHz, MHz] ................................(22)
@@77
Program format indicators [L, C, R, LS, S, LFE, RS].........(18)
@@88
Front speaker indicators [-SPEAKERS-, Å, ı].................(18)
Front speaker indicator [-SPEAKERS-]..............................(18)
@@99
Low impedance indicator [LOW IMP].................................(14)
##00
Tuned indicator [TUNED].....................................................(22)
##11
Stereo indicator [STEREO]..................................................(22)
##22
Monaural indicator [MONO].................................................(22)
##33
Memory indicator [˜] ..........................................................(23)
##44
Timer indicators [SLEEP, WAKE] .......................................(27)
##55
RDS indicators [ , PS, RT, PTY, EON] .........................(24)
##66
Signal format indicators
[FIXED, PCM, , % DIGITAL, % PRO LOGIC] .....(16, 18)
Signal format indicators
[FIXED, PCM, % DIGITAL, % PRO LOGIC] ................(16, 18)
##77
DSP sound mode indicators
[-SOUND MODE-, SFC, STEREO, SURROUND].................(18)
SA-DX750
SA-DX850
RDS
SA-DX850
SA-DX750
SA-DX850
Reference pages are given in parentheses.
Refer to the separate booklet, “Remote Control”, for a guide to the
remote control’s buttons.
