Technics SA-EX510

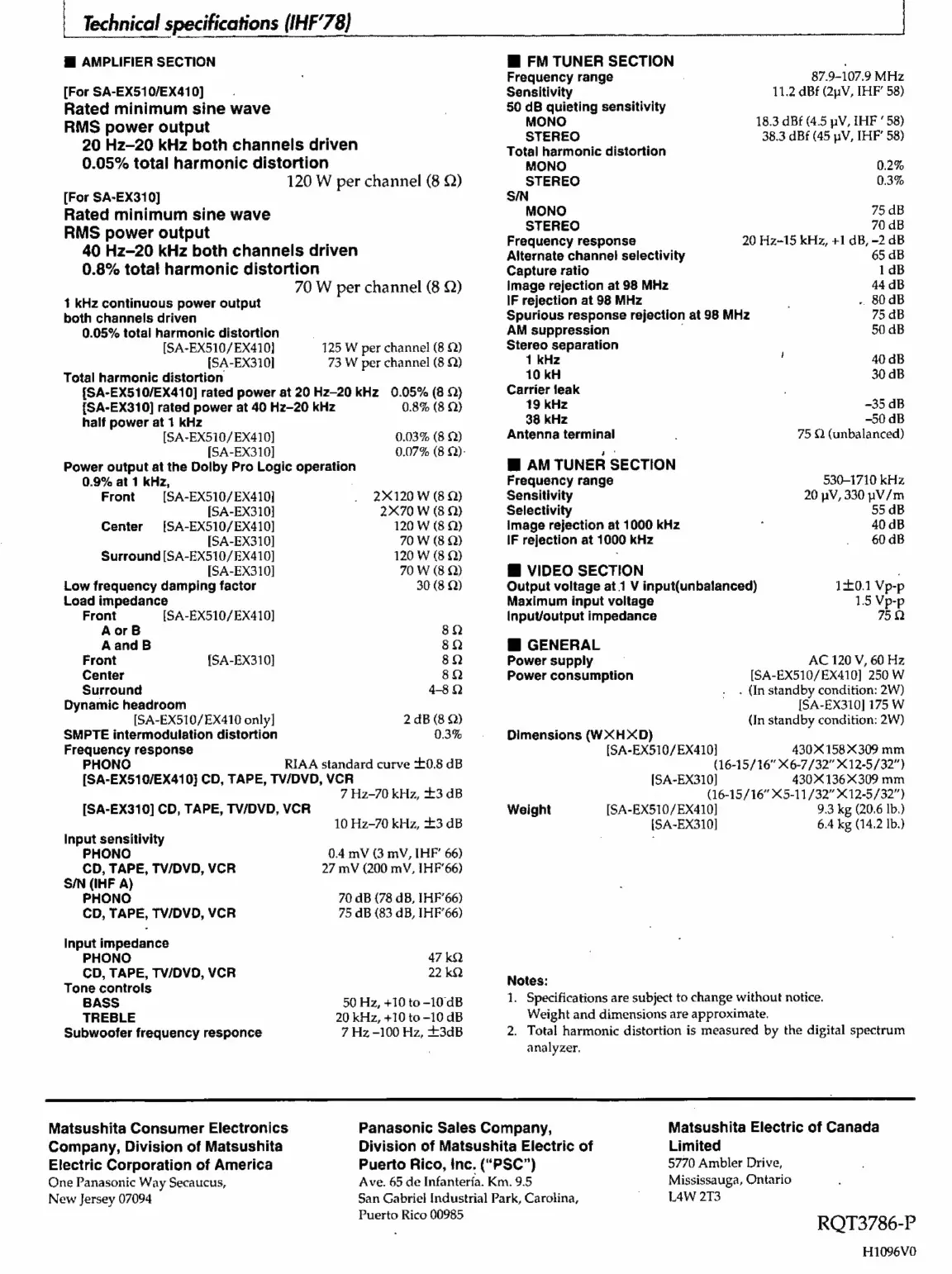

| Technical specifications (IHF’78)
E AMPLIFIER SECTION
[For SA-EX510/EX410]
Rated minimum sine wave
RMS power output
20 Hz—20 kHz both channels driven
0.05% total harmonic distortion
120 W per channel (8 Q)
[For SA-EX310]
Rated minimum sine wave
RMS power output
40 Hz-20 kHz both channels driven
0.8% total harmonic distortion
70 W per channel (8 Q)
1 kHz continuous power output
both channels driven
0.05% total harmonic distortion
[SA-EX510/EX410]
[SA-EX310}
Total harmonic distortion
{SA-EX510/EX410] rated power at 20 Hz-20 kHz 0.05% (8 9)
125 W per channel (8 22)
73 W per channel (8 Q)
{SA-EX310] rated power at 40 Hz-20 kHz 0.8% (8 2)
half power at 1 kHz
[SA-EX510/EX410] 0.03% (8 Q)
[SA-EX310] 0.07% (8 Q)-
Power output at the Dolby Pro Logic operation
0.9% at 1 kHz,
Front [SA-EX510/EX410] 2X120 W (8 Q)
[SA-EX310] 2X70 W (8 Q)
Center [SA-EX510/EX410] 120 W (8 Q)
[SA-EX310] 70 W (8 Q)
Surround [SA-EX510/EX410] 120 W (8 Q)
[SA-EX310] 70 W (8 Q)
Low frequency damping factor 30 (8 Q)
Load impedance
Front [SA-EX510/EX410]
AorB 8
AandB 82
Front {SA-EX310] 8D
Center 82
Surround 4-8 Q
Dynamic headroom
[SA-EX510/EX410 only] 2 dB (8 Q)
SMPTE intermodulation distortion 0.3%
Frequency response
PHONO RIAA standard curve £0.8 dB
[SA-EX510/EX410} CD, TAPE, TV/DVD, VCR
7 Hz-70 kHz, £3 dB
[SA-EX310] CD, TAPE, TV/DVD, VCR
10 Hz-70 kHz, +3 dB
Input sensitivity
PHONO 0.4 mV (3 mV, IHF’ 66)
CD, TAPE, TV/DVD, VCR 27 mV (200 mV, IHF’66)
S/N (IHF A)
PHONO 70 dB (78 dB, IHF’66)
CD, TAPE, TV/DVD, VCR 75 dB (83 dB, IHF’66)
Input impedance
PHONO 47 kQ
CD, TAPE, TV/DVD, VCR 22 kQ
Tone controls
BASS 50 Hz, +10 to-10 dB
TREBLE 20 kHz, +10 to -10 dB
Subwoofer frequency responce 7 Hz -100 Hz, +3dB
=
E FM TUNER SECTION ;
| 87.9-107.9 MHz
Frequency range
Sensitivity 11.2 dBf (2V, THF’ 58)
50 dB quieting sensitivity
MONO 18.3 dBf (4.5 pV, IHF ‘ 58)
STEREO 38.3 dBf (45 pV, THF’ 58)
Total harmonic distortion
MONO 0.2%
STEREO 0.3%
S/N
MONO 75 dB
STEREO 70 dB
Frequency response 20 Hz-15 kHz, +1 dB, -2 dB
Alternate channel selectivity 65 dB
Capture ratio 1daB
Image rejection at 98 MHz 44 dB
IF rejection at 98 MHz . 80 dB
Spurious response rejection at 98 MHz 75 dB
AM suppression 50 dB
Stereo separation
1 kHz 40 dB
10 kH 30 dB
Carrier leak
19 kHz -35 dB
38 kHz -50 dB
Antenna terminal 75 Q (unbalanced)
E AM TUNER SECTION
Frequency range 530-1710 kHz
Sensitivity 20 pV, 330 pV/m
Selectivity 55 dB
Image rejection at 1000 kHz $ 40 dB
IF rejection at 1000 kHz . 60dB
E VIDEO SECTION F
Output voltage at 1 V input(unbalanced) 10.1 Vp-p
Maximum input voltage 1.5 Vp-p
input/output impedance 75 Q
E GENERAL
Power supply AC 120 V, 60 Hz
[SA-EX510/EX410] 250 W
. (In standby condition: 2W)
[SA-EX310] 175 W
(In standby condition: 2W)
Power consumption
Dimensions (WXHXD)
[SA-EX510/EX410} 430X 158X309 mm
(16-15/16”" X6-7/32” X12-5/32")
[SA-EX310] 430X 136X309 mm
(16-15/16” X5-11/32” X12-5/32")
Weight [SA-EX510/EX410] 9.3 kg (20.6 lb.)
[SA-EX310] 6.4 kg (14.2 lb.)
Notes:
1. Specifications are subject to change without notice.
Weight and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
