Technics SA-EX510

Front
speaker (R)
2
NL”
Ne”
eee
Surround
speaker {R)
Front
speaker {L}
Center
speaker
Surround
speaker (L)
Front
speaker (L)
Front
speaker (R)
Surround
speaker {R}
Surround
speaker (L)
f
SA-EX510/EX410
[OG PROLOGIC For SURROUND mode
Ose ana 7
LUST
Liked
a
te
O10
3
STEREO
Displayed for approximately 1 second only.
SUAROUND 3 STEREO For 3 STEREO mode
Displayed for approximately 1 second only.
|
APARA
uitt I OOOO

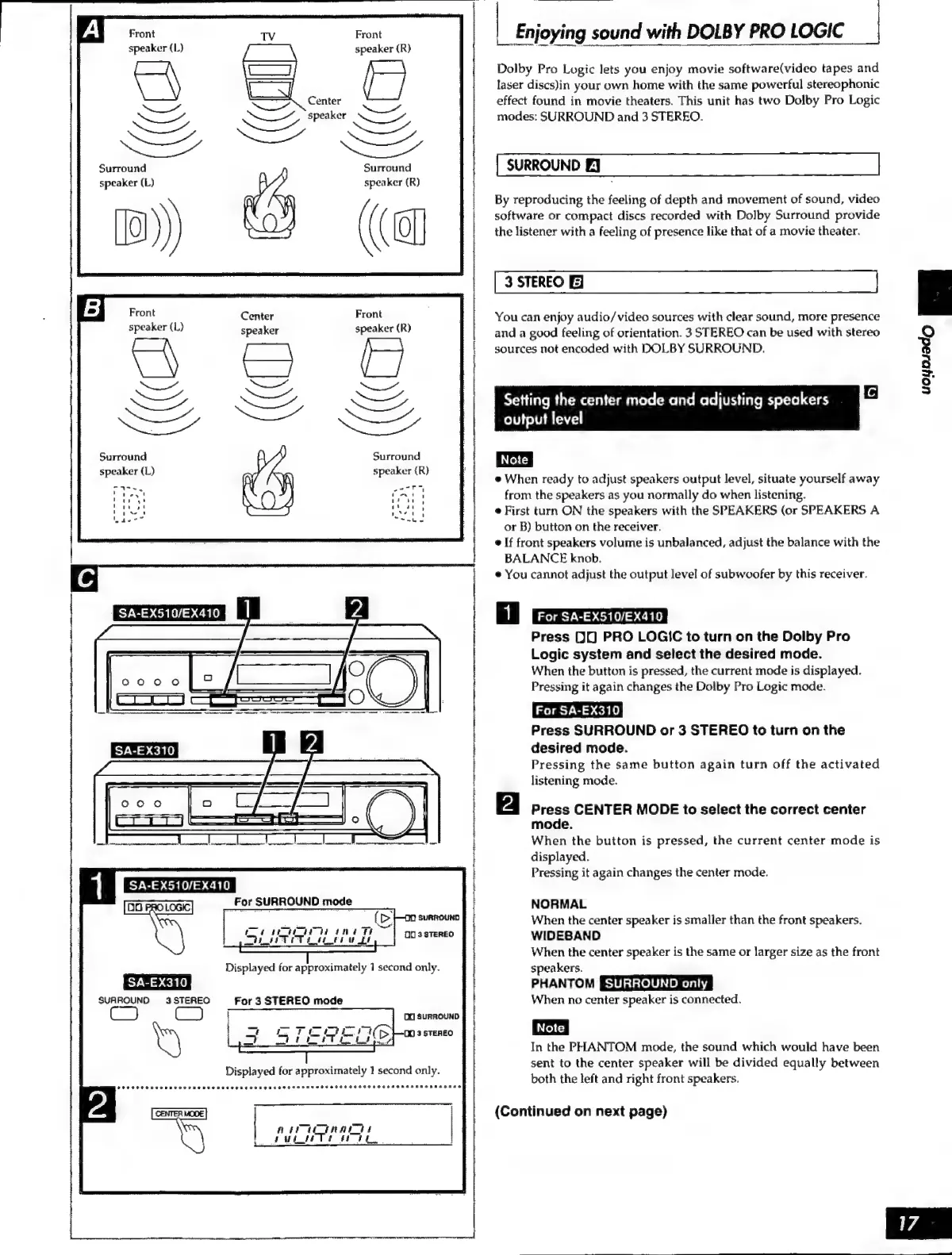

njoying sound with DOLBY PRO LOGIC |
tn
Dolby Pro Logic lets you enjoy movie software(video tapes and
laser discs)in your own home with the same powerful stereophonic
effect found in movie theaters. This unit has two Dolby Pro Logic
modes: SURROUND and 3 STEREO.
SURROUND EJ
By reproducing the feeling of depth and movement of sound, video
software or compact discs recorded with Dolby Surround provide
the listener with a feeling of presence like that of a movie theater.
3 STEREO E]
You can enjoy audio/video sources with clear sound, more presence
and a good feeling of orientation. 3 STEREO can be used with stereo
sources not encoded with DOLBY SURROUND.
Setting the center mode and adjusting speakers
output level
ə When ready to adjust speakers output level, situate yourself away
from the speakers as you normally do when listening.
e First turn ON the speakers with the SPEAKERS (or SPEAKERS A
or B) button on the receiver.
ə If front speakers volume is unbalanced, adjust the balance with the
BALANCE knob.
e You cannot adjust the output level of subwoofer by this receiver.
For SA-EX510/EX410
Press 00 PRO LOGIC to turn on the Dolby Pro
Logic system and select the desired mode.
When the button is pressed, the current mode is displayed.
Pressing it again changes the Dolby Pro Logic mode.
For SA-EX310
Press SURROUND or 3 STEREO to turn on the
desired mode.
Pressing the same button again turn off the activated
listening mode.
Press CENTER MODE to select the correct center
mode.
When the button is pressed, the current center mode is
displayed.
Pressing it again changes the center mode.
NORMAL
When the center speaker is smaller than the front speakers.
WIDEBAND
When the center speaker is the same or larger size as the front
speakers.
PHANTOM § iste emery
When no center speaker is connected.
In the PHANTOM mode, the sound which would have been
sent to the center speaker will be divided equally between
both the left and right front speakers.
(Continued on next page)
