Technics SA-EX510 User Manual

FM outdoor antenna
(not included)
75 Q coaxial cable
ee {not included)
@ Remove a piece of the outer
vinyl insulator.
(= Om
L
20mm(25/32”)
@ Twist the shield braid
to expose the core wire.
Core wire
Shield braid 10 mm (3/8")
®© Connect the shield braid and the
core wire as shown at the left.
Vinyl-covered wire
{not included}
AM loop antenna
{included}
AM LOOP ANT
L

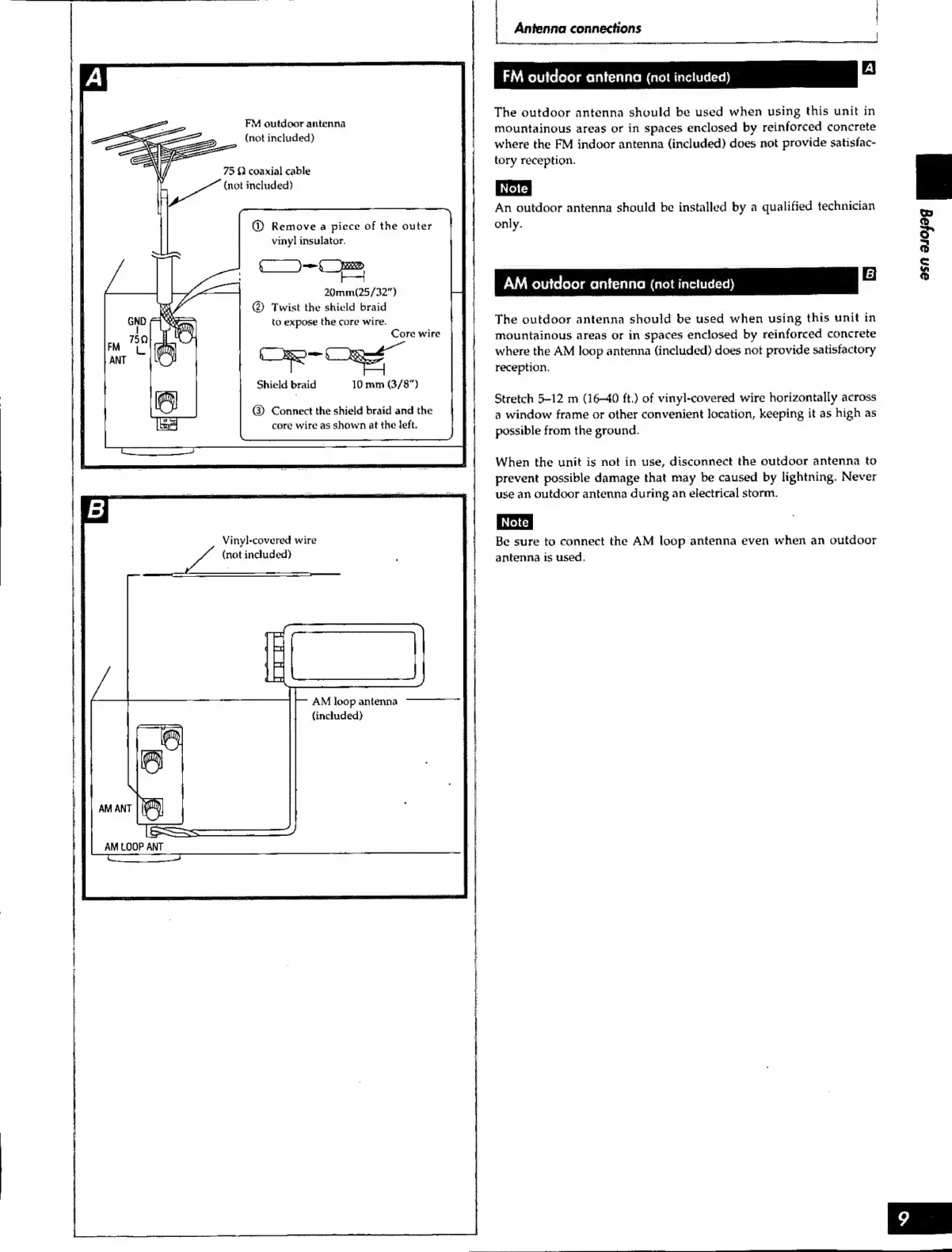

Antenna connections
em. arere Aeererren reene
FM outdoor antenna (not included)
The outdoor antenna should be used when using this unit in
mountainous areas or in spaces enclosed by reinforced concrete
where the FM indoor antenna (included) does not provide satisfac-
tory reception.
An outdoor antenna should be installed by a qualified technician
only.
AM outdoor antenna (not included) 5)
The outdoor antenna should be used when using this unit in
mountainous areas or in spaces enclosed by reinforced concrete
where the AM loop antenna (included) does not provide satisfactory
reception.
Stretch 5-12 m (16-40 ft.) of vinyl-covered wire horizontally across
a window frame or other convenient location, keeping it as high as
possible from the ground.
When the unit is not in use, disconnect the outdoor antenna to
prevent possible damage that may be caused by lightning. Never
use an outdoor antenna during an electrical storm.
Be sure to connect the AM loop antenna even when an outdoor
antenna is used.
