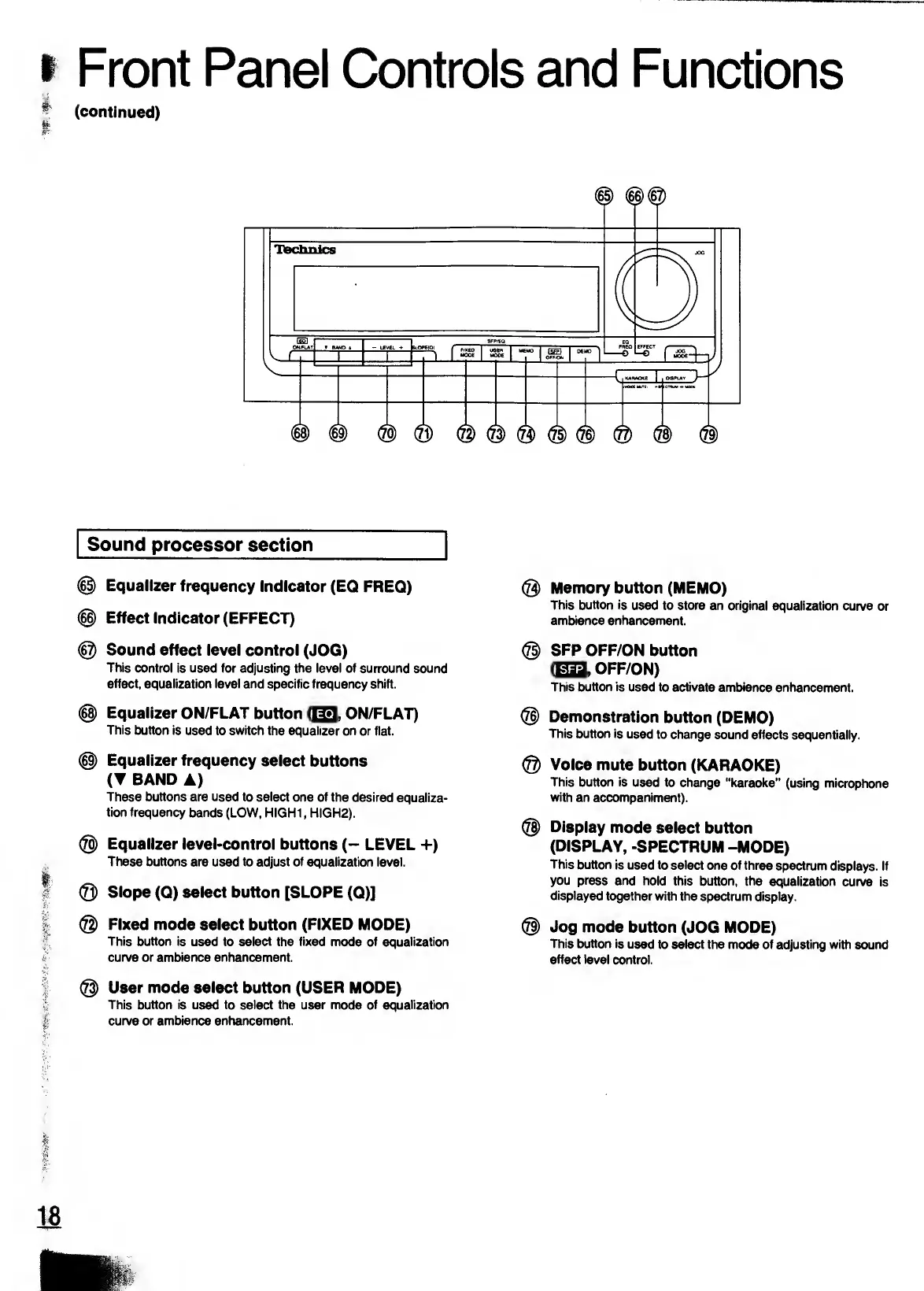

i Front Panel Controls and Functions
*' (continued)
Sound processor section
H) Equalizer frequency indicator (EQ FREQ)
@ Effect indicator (EFFECT)
@ Sound effect level control (JOG)
This control is used for adjusting the level of surround sound
effect, equalization ievel and specific frequency shift.
@) Equalizer ON/FLAT button d^, ON/FLAT)
This button is used to switch the equalizer on or flat.
Equalizer frequency select buttons
( ▼ BAND A)
These buttons are used to select one of the desired equaiiza-
tion frequency bands (LOW, HIGH1, HIGH2).
@ Equalizer level-control buttons (— LEVEL +)
These buttons are used to adjust of equalization level.
i
f ® Slope (Q) select button [SLOPE (Q)]
I @ Fixed mode select button (FIXED MODE)
This button is used to select the fixed mode of equalization
« curve or ambience enhancement.
@ User mode select button (USER MODE)
t This button is used to select the user mode of equalization
L curve or ambience enhancement.
@ Memory button (MEMO)
This button is used to store an original equalization curve or
ambience enhancement.
® SFP OFF/ON button
(Sa, OFF/ON)
This button is used to activate ambience enhancement.
@ Demonstration button (DEMO)
This button is used to change sound effects sequentially.
(g) Voice mute button (KARAOKE)
This button is used to change “karaoke” (using microphone
with an accompaniment).
@ Display mode select button
(DISPLAY, -SPECTRUM -MODE)
This button is used to select one of three spectrum displays. If
you press and hold this button, the equalization curve is
displayed together with the spectrum display.
@ Jog mode button (JOG MODE)
This button is used to select the mode of adjusting with sound
effect level control.
IB
