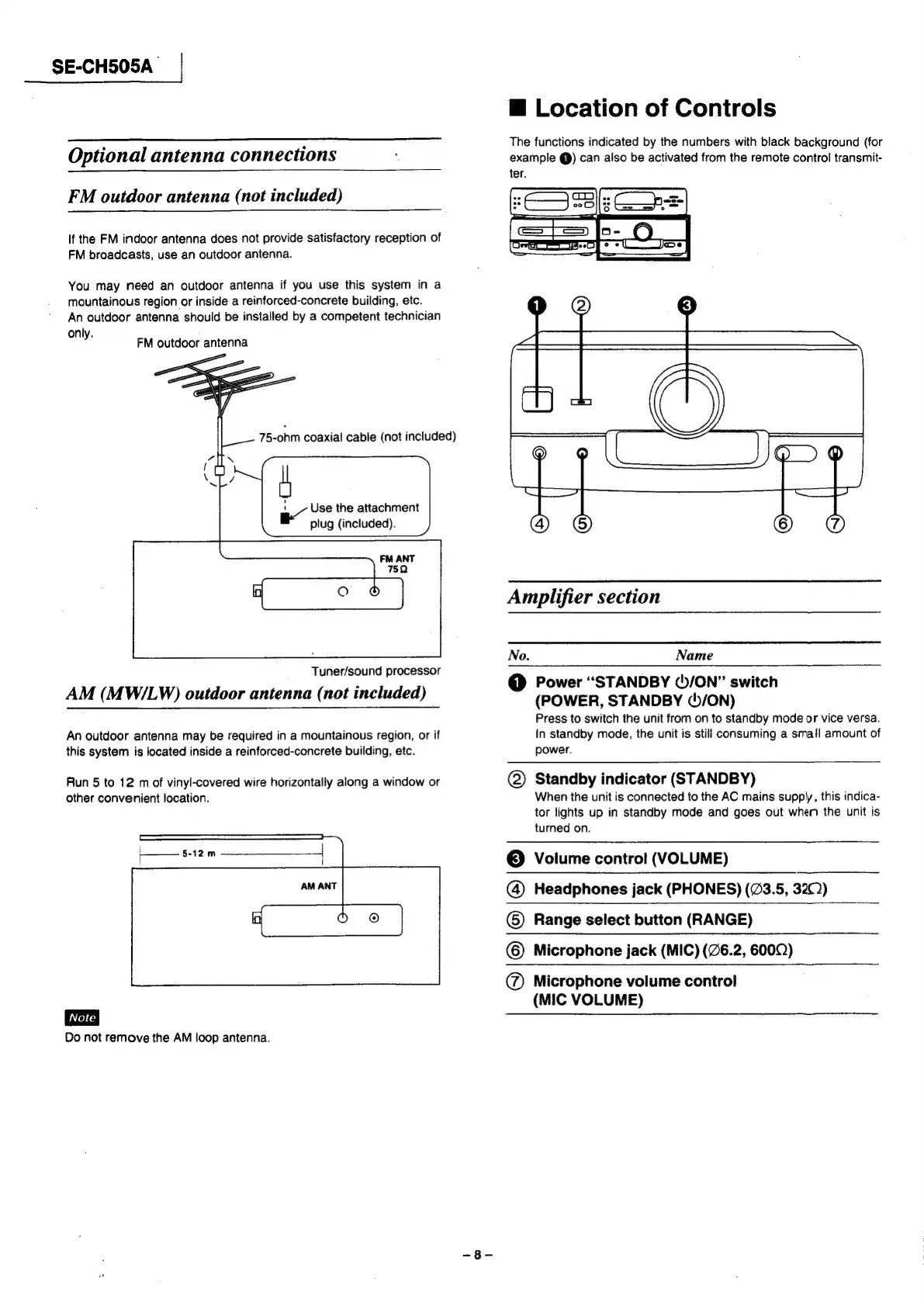

Optional antenna connections
FM outdoor antenna (not included)
If the FM indoor antenna does not provide satisfactory reception of
FM broadcasts, use an outdoor antenna.
You may need an outdoor antenna if you use this system in a
mountainous region or inside a reinforced-concrete building, etc.
An outdoor antenna should be installed by a competent technician
only.
FM outdoor antenna
. Use the attachment
plug (included).
Tuner/sound processor
AM (MW/LW) outdoor antenna (not included)
An outdoor antenna may be required in a mountainous region, or if
this system is located inside a reinforced-concrete building, etc.
Run 5 to 12 m of vinyl-covered wire horizontally along a window or
other convenient location.
Do not remove the AM loop antenna.
H Location of Controls
The functions indicated by the numbers with black background (for
example @) can also be activated from the remote control transmit-
ter.
Amplifier section
No. Name
@ Power “STANDBY (5/ON” switch
(POWER, STANDBY (5/ON)
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of
power.
Standby indicator (STANDBY)
When the unit is connected to the AC mains suppl, this indica-
tor lights up in standby mode and goes out when the unit is
turned on.
© Volume contro! (VOLUME)
(4) Headphones jack (PHONES) (23.5, 320)
() Range select button (RANGE)
© Microphone jack (MIC) (26.2, 6000)
@) Microphone volume control
(MIC VOLUME)
@
