SH-8017
m@

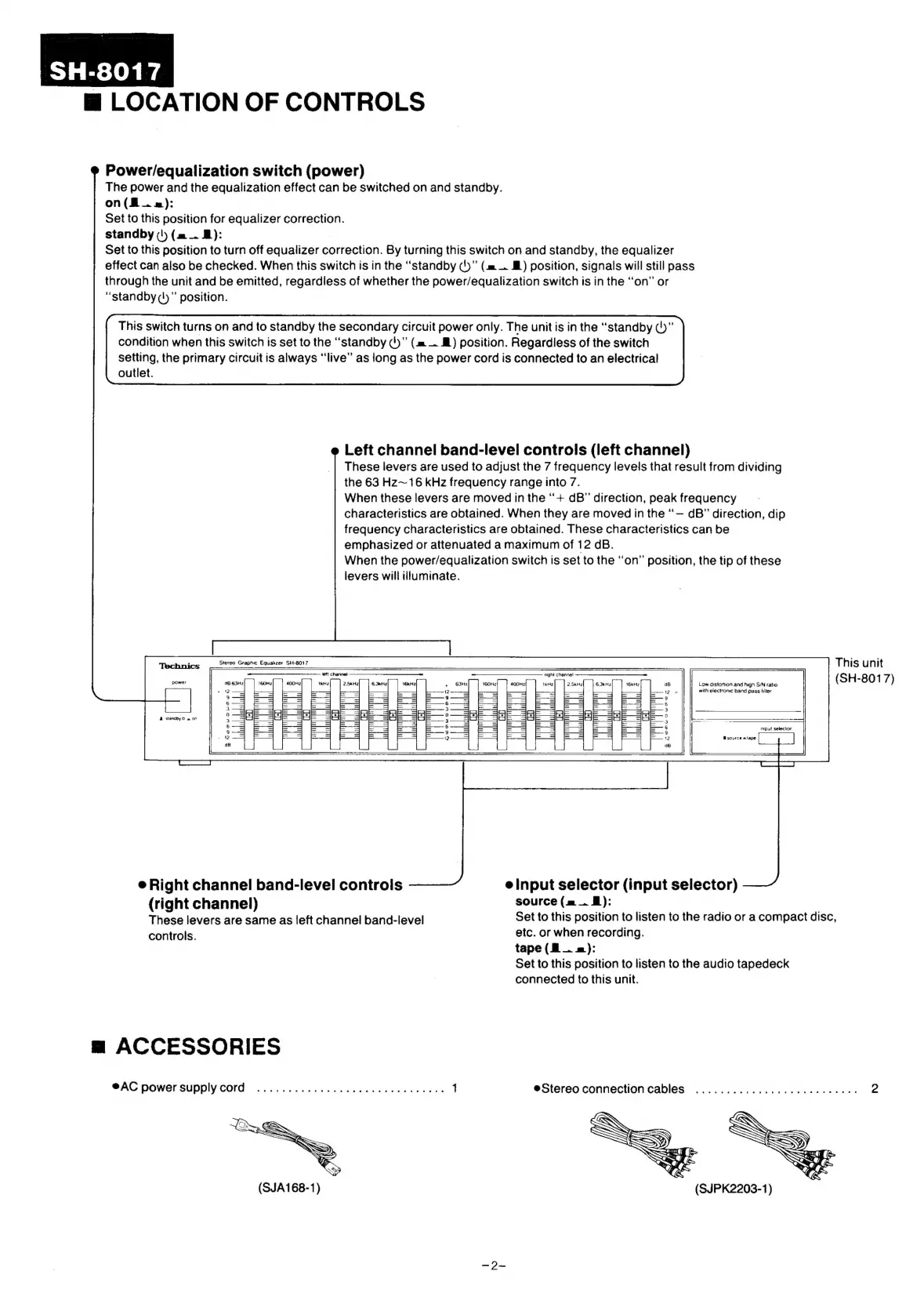

LOCATION
OF
CONTROLS
Power/equalization
switch
(power)
The
power
and
the
equalization
effect
can
be
switched
on
and
standby.
on
(H_.
=):
Set
to
this
position
for
equalizer
correction.
standby
(|)
(m_.
Mf):
,
Set
to
this
position
to
turn
off
equalizer
correction.
By
turning
this
switch
on
and
standby,
the
equalizer
effect
can
also
be
checked.
When
this
switch
is in
the
“standby
(')”
(m_
HL)
position,
signals
will
still
pass
through
the
unit
and
be
emitted,
regardless
of
whether
the
power/equalization
switch
is in
the
“on”
or
“standby
(!)”
position.
This
switch
turns
on
and
to
standby
the
secondary
circuit
power
only.
The
unit
is
in
the
“standby
(”
condition
when
this
switch
is
set
to
the
“standby
(+)
(1
HL)
position.
Regardless
of
the
switch
setting,
the
primary
circuit
is
always
“live”
as
long
as
the
power
cord
is
connected
to
an
electrical
outlet.
Left
channel
band-level
controls
(left
channel)
These
levers
are
used
to
adjust
the
7
frequency
levels
that
result
from
dividing
the
63
Hz~16
kHz
frequency
range
into
7.
When
these
levers
are
moved
in
the
“+
dB”
direction,
peak
frequency
characteristics
are
obtained.
When
they
are
moved
in
the
“—
dB”
direction,
dip
frequency
characteristics
are
obtained.
These
characteristics
can
be
emphasized
or
attenuated
a
maximum
of
12
dB.
When
the
power/equalization
switch
is
set
to
the
“on”
position,
the
tip
of
these
levers
will
illuminate.
Technics
Stereo
Grapnic
Equalizer
SH-8017
This
sic
Low
distortion
and
high
S/N
ratio
|
(SH-80
1
7)
with
electromic
band pass
filter
y+
A
Standby
©
=
on
VwWMHoOUwAy
VWPROUAB
a
te)
e
Right
channel
band-level
controis
e
input
selector
(input
selector)
(right
channel)
source
(m_.
Hl):
|
These
levers
are
same
as
left
channel
band-level
Set
to
this
position
to
listen
to
the
radio
or
a
compact
disc,
controls.
etc.
or
when
recording.
tape
(H_.
m=):
Set
to
this
position
to
listen
to
the
audio
tapedeck
connected
to
this
unit.
m
ACCESSORIES
@AC
power
supply
cord
.......
0...
ce
cee
eee
1
(SJA168-1)
(SJPK2203-1)
