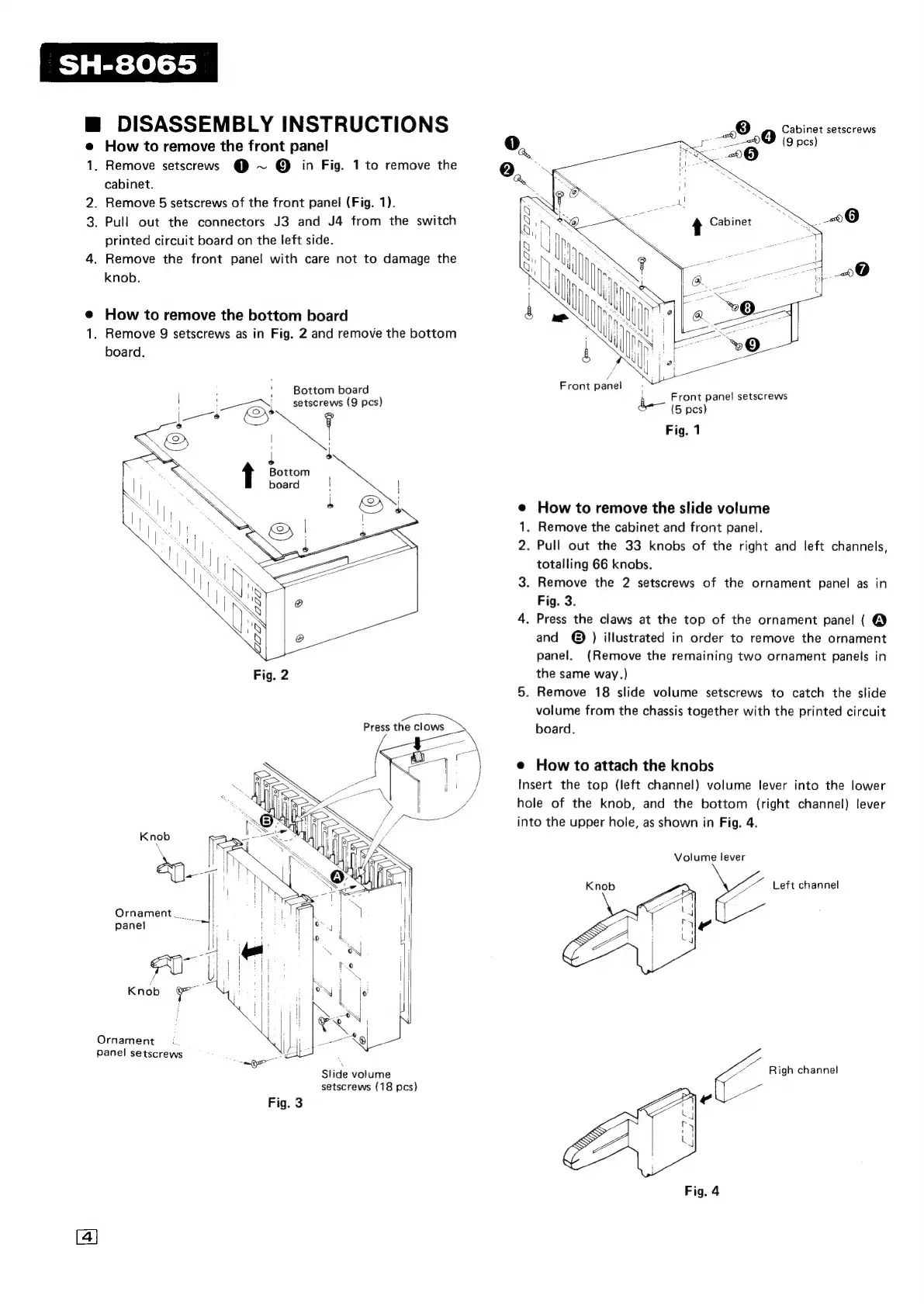

SH-8O065
DISASSEMBLY
INSTRUCTIONS
How
to
remove
the
front
panel
.
Remove
setscrews
@
~
@
in
Fig.
1
to
remove
the
cabinet.
.
Remove
5
setscrews
of
the
front
panel
(Fig.
1).
.
Pull
out
the
connectors
J3
and
J4
from
the
switch
printed
circuit
board
on
the
left
side.
.
Remove
the
front
panel
with
care
not
to
damage
the
knob.
How
to
remove
the
bottom
board
.
Remove
9
setscrews
as
in
Fig.
2
and
remove
the
bottom
board.
Bottom
board
&
setscrews
(9
pcs)
|
4
4
Bottom
board
Press
the
clows
Ornament___
panel
Ornament
panel
setscrews
Slide
volume
setscrews
(18
pcs)
Fig.
3
Cabinet
setscrews
A
Front
panel
setscrews
(5
pes)
Fig.
1
e
How
to
remove
the
slide
volume
.
Remove
the
cabinet
and
front
panel.
2.
Pull
out
the
33
knobs
of
the
right
and
left
channels,
totalling
66
knobs.
3.
Remove
the
2
setscrews
of
the
ornament
panel
as
in
Fig.
3.
4.
Press
the
claws
at
the
top
of
the
ornament
panel
(
@
and
@©
)
illustrated
in
order
to
remove
the
ornament
panel.
(Remove
the
remaining
two
ornament
panels
in
the
same
way.)
5.
Remove
18
slide
volume
setscrews
to
catch
the
slide
volume
from
the
chassis
together
with
the
printed
circuit
board.
—_
e
How
to
attach
the
knobs
Insert
the
top
(left
channel)
volume
lever
into
the
lower
hole
of
the
knob,
and
the
bottom
(right
channel)
lever
into
the
upper
hole,
as
shown
in
Fig.
4.
Volume
lever
~
Left
channel
om
Righ
channel
\
Fig.
4
