Technics SH-CH900 User Manual

SH-CH900
Ref. No.
6
Procedure
1^6

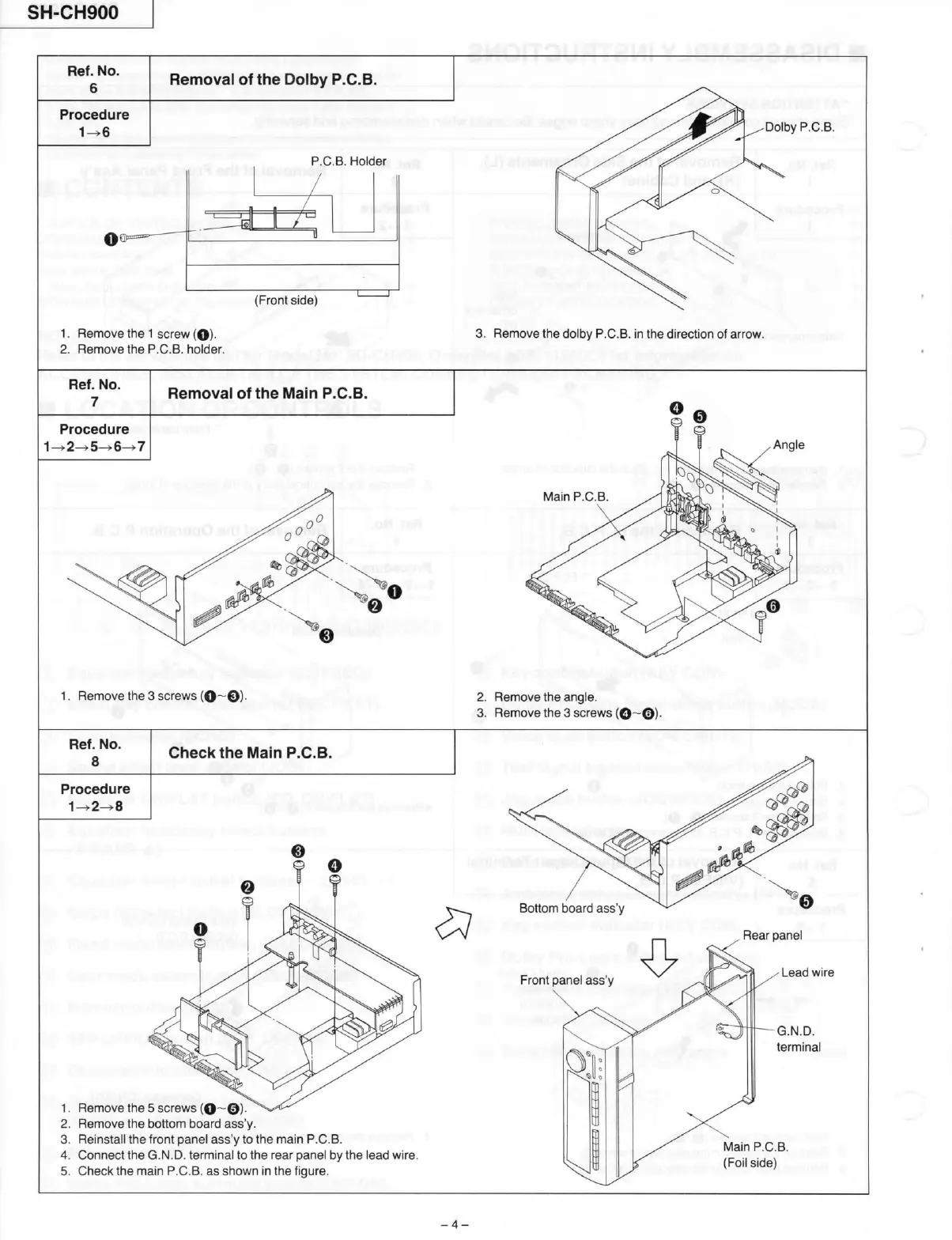

Removal of the Dolby
P.C.B.
P.C.B. Holder
1. Remove the 1 screw (O)-
2. Remove the P.C.B. holder.
(Front side)
Dolby P.C.B.
i
3. Remove the dolby P.C.B. in the direction of arrow.
Ref. No.
7
Procedure
Removal of the Main P.C.B.
Angle
1. Remove the 3 screws (0~©)-
2. Remove the angle.
3. Remove the 3 screws (0~©).
1. Remove the 5 screws (0~©)-
2. Remove the bottom board ass'y.
3. Reinstall the front panel ass'y to the main P.C.B.
4.
Connectthe G.N.D. terminal to the rear panel by the lead wire.
5. Check the main P.C.B. as shown in the figure.
-4-
