Technics SH-EH750

SH-EH750
Hole
Claw
Ler Main P.C.B.

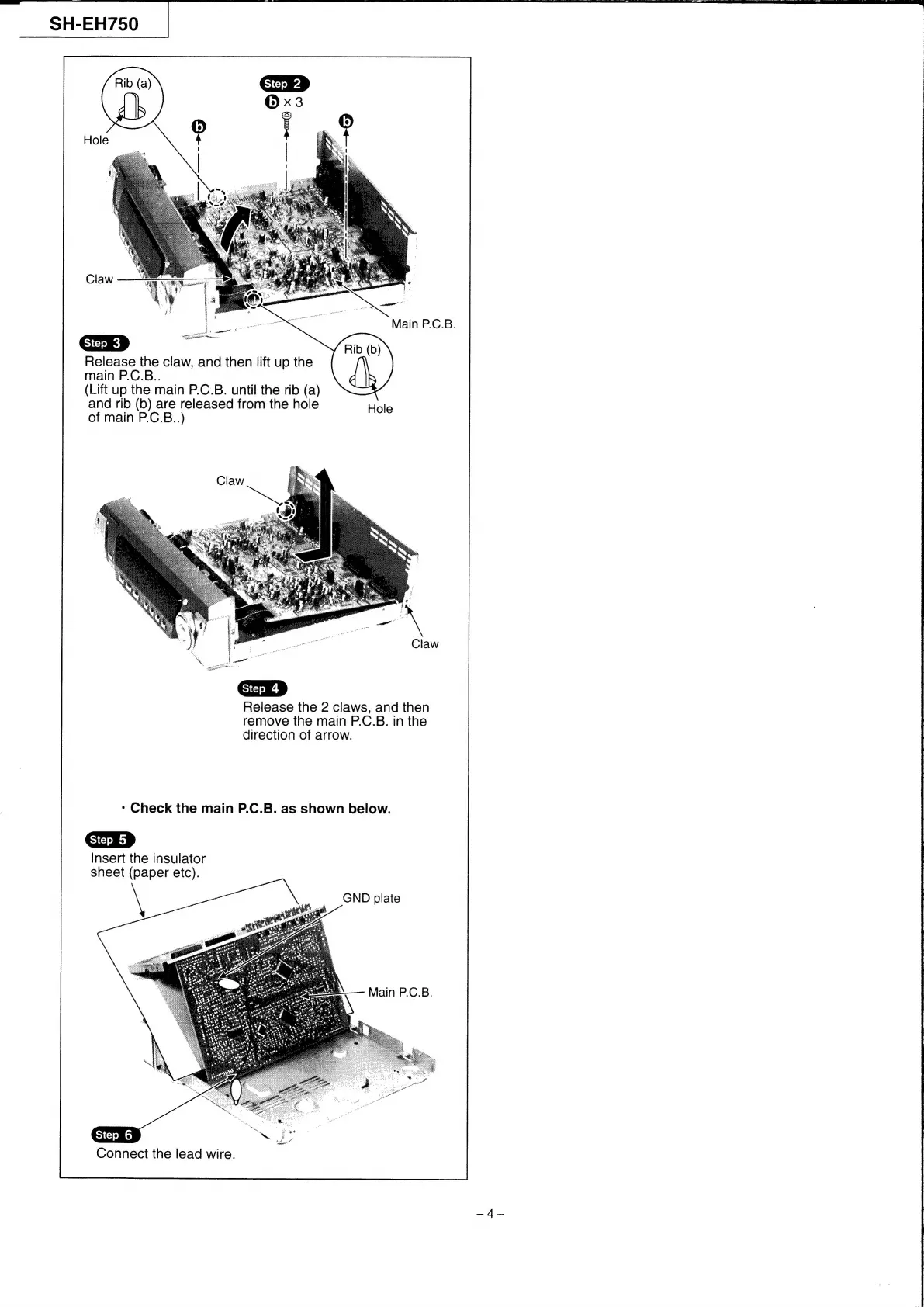

Release the claw, and then lift up the
main P.C.B..
(Lift up the main P.C.B. until the rib (a)
and rib (b) are released from the hole
of main P.C.B..)
Hole
Release the 2 claws, and then
remove the main P.C.B. in the
direction of arrow.
- Check the main P.C.B. as shown below.
Insert the insulator
sheet (paper etc).
GND plate
Main P.C.B.
Connect the lead wire.
j
t
‘
