Technics SH-EX1200 - Front Panel Connections; Connecting Two Audio Mixers Side by Side

RQT6018
7
Front panel connections
To listen with the headphones:
•Before connecting headphones, turn down the volume with [MONITOR LEVEL], etc.
•Avoid listening for prolonged periods of time to prevent hearing damage.

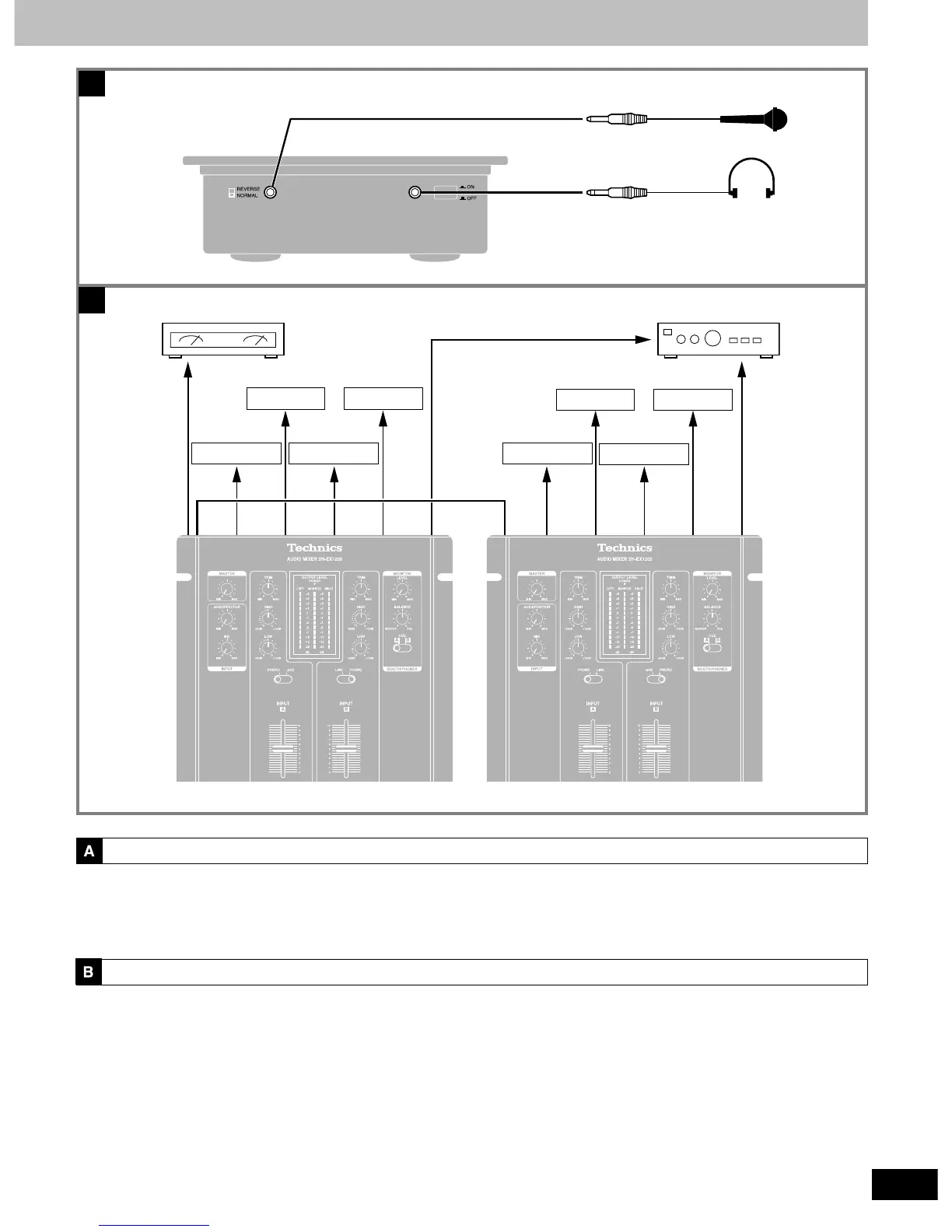

Connecting two audio mixers side by side
Connect the [LINE OUT] connector of the sub mixer to the [AUX IN] connector on the master mixer.
How to align the volume levels of the master and sub mixers:
Adjust [AUX/EFFECTOR] volume on the master mixer and [MASTER] volume on the sub mixer so the levels are identical.
Microphone
(not included)
Plug type: 6.3 mm (1/4 in.) monaural
Plug type: 6.3 mm (1/4 in.) stereo Headphones
(not included)
Mic input jack Headphones jack
Amplifier
Monitor amplifier
Turntable 1 Turntable 2
Turntable 3 Turntable 4
Master mixer Sub mixer
LINE
OUT
AUX
IN
MONITOR
OUT
LINE
OUT
MONITOR
OUT
CD, MD player 1 MD, CD player 2 CD, MD player 3
MD, CD player 4
A
B
