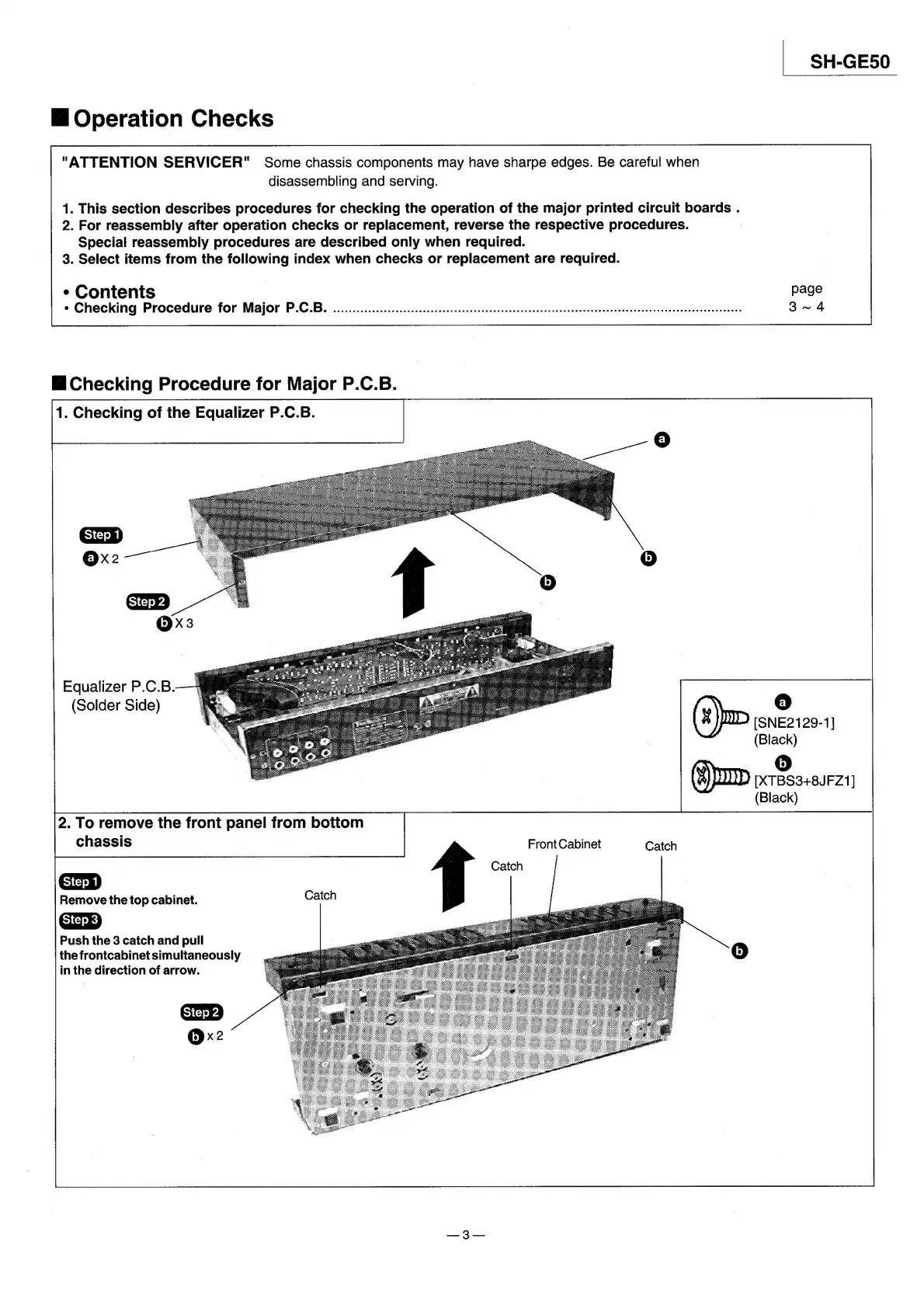

Mi Operation Checks
"ATTENTION SERVICER" Some chassis components may have sharpe edges. Be careful when
disassembling and serving.
1. This section describes procedures for checking the operation of the major printed circuit boards .
2. For reassembly after operation checks or replacement, reverse the respective procedures.
Special reassembly procedures are described only when required.
3. Select items from the following index when checks or replacement are required.
¢ Contents
¢ Checking Procedure for Major P.C.B.
Mi Checking Procedure for Major P.C.B.
1. Checking of the Equalizer P.C.B.
QOx3
Equalizer P.C.B.
(Solder Side)
& }D [sne2129-1)
(Black)
\b )
[XTBS3+8JFZ1]
(Black)
2. To remove the front panel from bottom
chassis
Front Cabinet Catch
Catch
Remove the top cabinet.
Push the 3 catch and pull
the frontcabinet simultaneously
in the direction of arrow.
‘Step 2)
Q«2
