Technics SH-GE50 Service Manual

SH-GE50

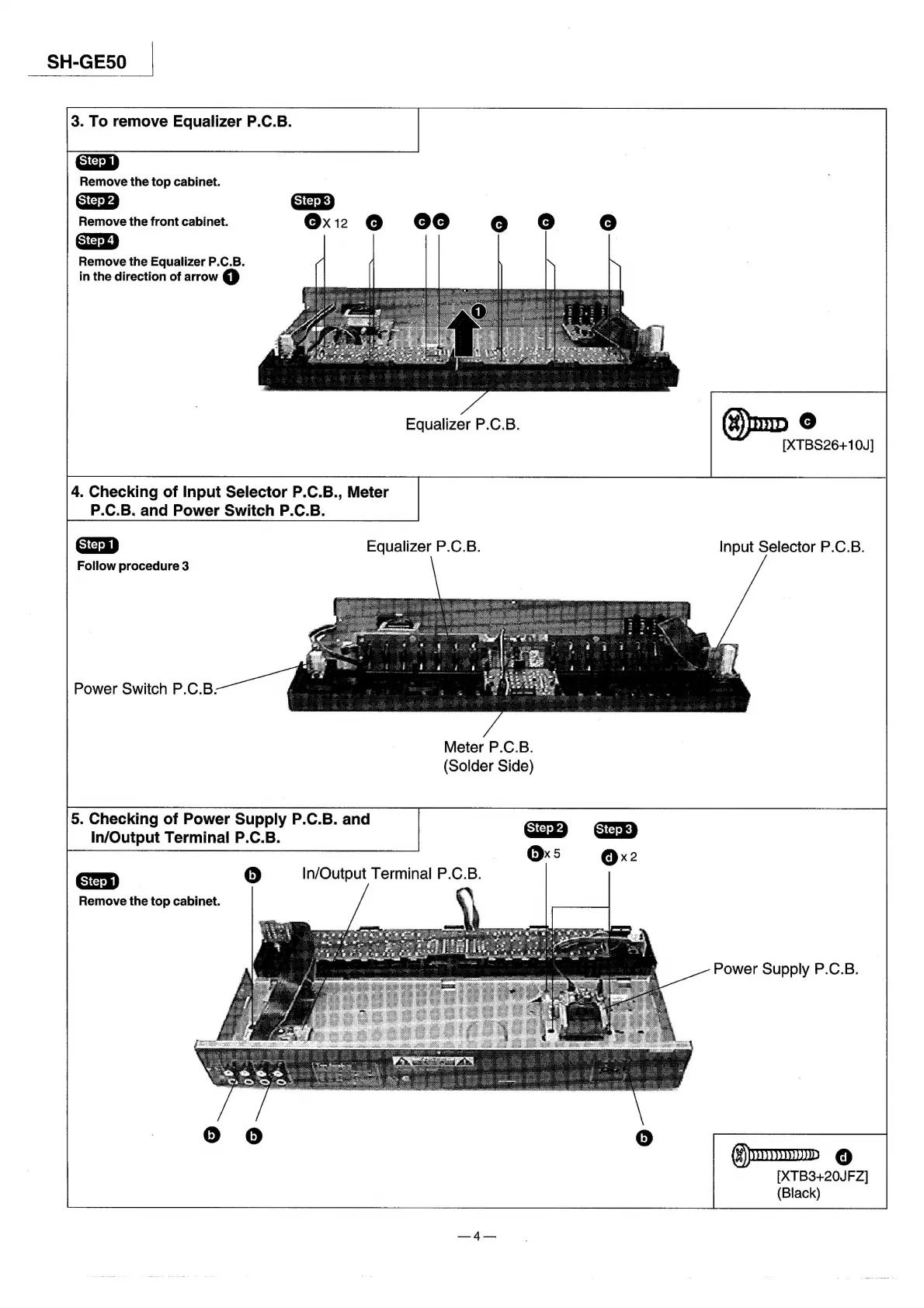

3. To remove Equalizer P.C.B.
Remove the top cabinet.
Step 2) Gap |
Remove the front cabinet. Oxi2 @ OO o 9 Oo
Step 4 |
Remove the Equalizer P.C.B.
in the direction of arrow @
Equalizer P.C.B. one c ]
[XTBS26+10J]
4. Checking of Input Selector P.C.B., Meter
P.C.B. and Power Switch P.C.B.
‘Step 1] Equalizer P.C.B. Input Selector P.C.B.
Follow procedure 3
Power Switch P.C.B:
Meter P.C.B.
(Solder Side)
5. Checking of Power Supply P.C.B. and
In/Output Terminal P.C.B.
Exp Cb In/Output Terminal P.C.B.
Remove the top cabinet.
Power Supply P.C.B.
(Imm +O
[XTB3+20JFZ]
(Black)
