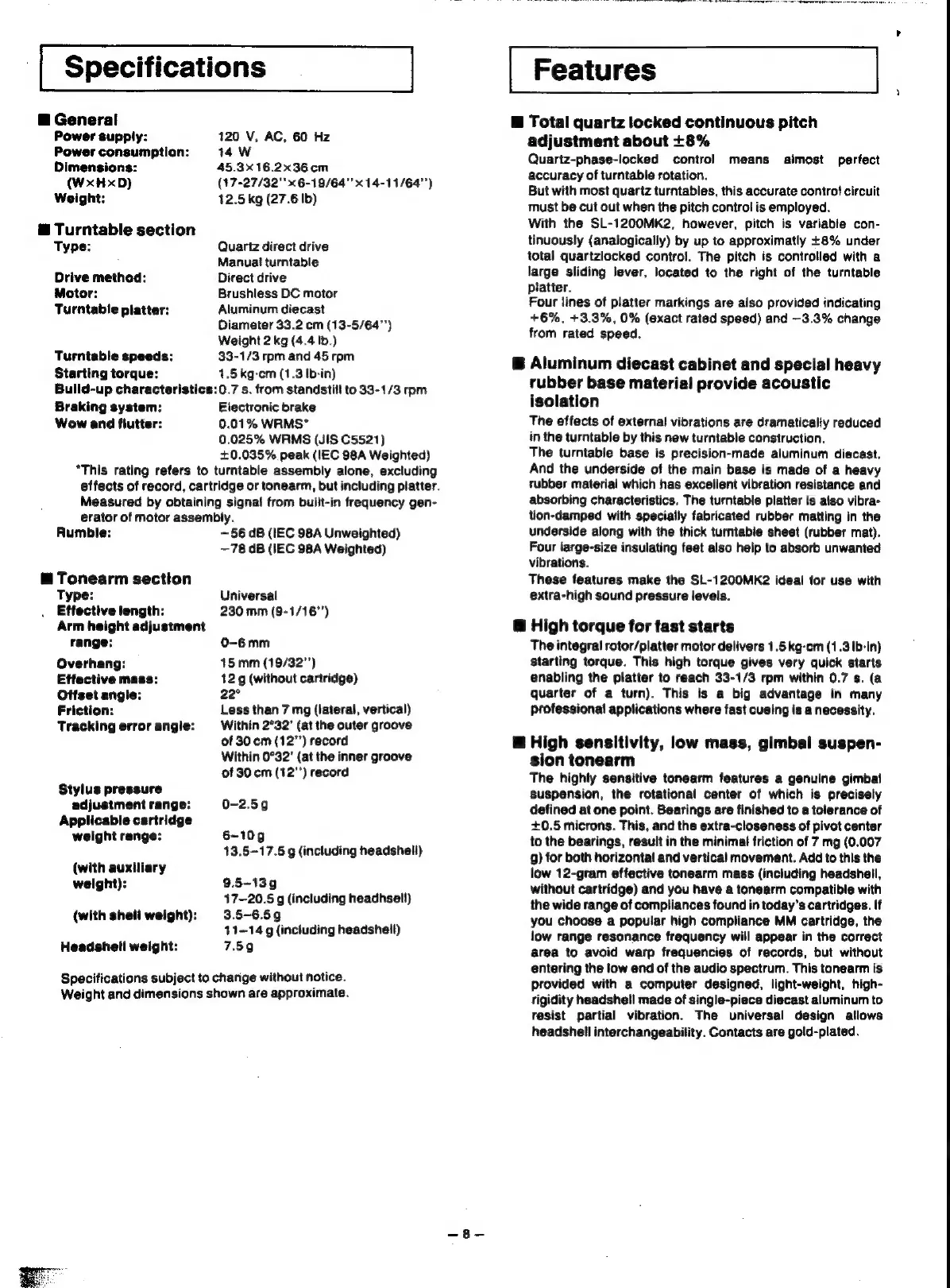

Technics SL-1200MK2 Operating Instructions

@ General
Power supply: 120 V, AC, 60 Hz
Power consumption: 14W
Dimensions: 45.3x16.2x36 em
(WxHxD) (17-27/32"' x 6-19/64"’ x 14-11/64"")
Weight: 12.5 kg (27.6 Ib)
@ Turntable section
Type: Quartz direct drive
Manual turntable
Orive method: Direct drive
Motor: Brushless DC motor
Turntable platter: Aluminum diecast
Diameter 33.2 cm (13-5/64"")
Weight 2 kg (4.4 Ib.)
Turntable speeds: 33-1/3 rpm and 45 rpm
Starting torque: 4.5 kg-cm (1.3 Ib-in)
Bulld-up characteristics: 0.7 s. from standstill to 33-1/3 rpm
Braking system: Electronic brake
Wow and flutter: 0.01% WRMS*
0.025% WRMS (JIS C5521)
+0.035% peak (IEC 98A Weighted)
*This rating refers to turntable assembly alone, excluding
effects of record, cartridge or tonearm, but including platter.
Measured by obtaining signal from built-in frequency gen-
erator of motor assembly.
Rumble: ~56 dB (IEC 98A Unweighted)
~78 dB (IEC 98A Weighted)
@ Tonearm section
Type: Universal
Effective length: 230 mm (9-1/16"')
Arm height adjustment
range: 0-6mm
Overhang: 15 mm (19/32"")
Effective mass: 12 g (without cartridge)
Offset angie: 22°
Friction: Less than 7 mg (lateral, vertical)
Tracking error angie: Within 2°32’ (at the outer groove
of 30 cm (12"') record
Within 0°32’ (at the inner groove
of 30 cm (12"') record
Stylus pressure
adjustment range: 0-2.59
Applicable cartridge
weight range: 6-109
13.5—17.5 g (including headshell)
(with auxiliary
weight): 9.5-139
17-20.5 g (including headhsel!)
(with shell weight): 3.5-6.59
11-14 g (including headshell)
Headshell weight: 7.59
Specifications subject to change without notice.
Weight and dimensions shown are approximate.
@ Total quartz locked continuous pitch
adjustment about +8%
Quartz-phase-locked control means aimost perfect
accuracy of turntable rotation.
But with most quartz turntables, this accurate control circuit
must be cut out when the pitch control is employed.
With the SL-1200MK2, however, pitch is variabie con-
tinuously (analogically) by up to approximatly +8% under
total quartzlocked control. The pitch is controlled with a
large sliding lever, located to the right of the turntable
piatter.
Four lines of platter markings are also provided indicating
+6%, +3.3%, 0% (exact rated speed) and —3.3% change
from rated speed.
& Aluminum diecast cabinet and special heavy
rubber base material provide acoustic
isolation
The effects of external vibrations are dramatically reduced
in the turntable by this new turntable construction.
The turntable base is precision-made aluminum diecast.
And the underside of the main base is made of a heavy
rubber material which has excelient vibration resistance and
absorbing characteristics. The turntable platter is also vibra-
tion-damped with specially fabricated rubber matting in the
underside along with the thick turntable sheet (rubber mat).
Four large-size insulating feet also help to absorb unwanted
vibrations.
These features make the SL-1200MK2 ideal for use with
extra-high sound pressure levels.
@ High torque for fast starts
The integral rotor/platter motor delivers 1.5kg-cm (1.3 Ib-in)
starting torque. This high torque gives very quick starts
enabling the platter to reach 33-1/3 rpm within 0.7 s. (a
quarter of a turn). This is a big advantage in many
professional applications where fast cueing is a necessity.
@ High sensitivity, low mass, gimbal suspen-
sion tonearm
The highly sensitive tonearm features a genuine gimbal
suspension, the rotational center of which is precisely
defined at one point. Bearings are finished to a tolerance of
+0.5 microns. This, and the extra-closeness of pivot center
to the bearings, result in the minimal friction of 7 mg (0.007
g) for both horizontal and vertical movement. Add to this the
low 12-gram effective tonearm mass (including headshell,
without cartridge) and you have a tonearm compatible with
the wide range of compliances found in today’s cartridges. If
you choose a popular high compliance MM cartridge, the
low range resonance frequency will appear in the correct
area to avoid warp frequencies of records, but without
entering the low end of the audio spectrum. This tonearm is
provided with a computer designed, light-weight, high-
rigidity headshell made of single-piece diecast aluminum to
resist partial vibration. The universal design atlows
headshell interchangeability. Contacts are gold-plated.

Technics SL-1200MK2 Specifications

General

Product color	Silver
Power requirements	AC120V, 60Hz
Signal-to-Noise Ratio (SNR)	78 dB
Power consumption (typical)	14 W

Weight and Dimensions

Depth	360 mm
Width	453 mm
Height	160 mm
Weight	12000 g
