Technics SL-1200MK2

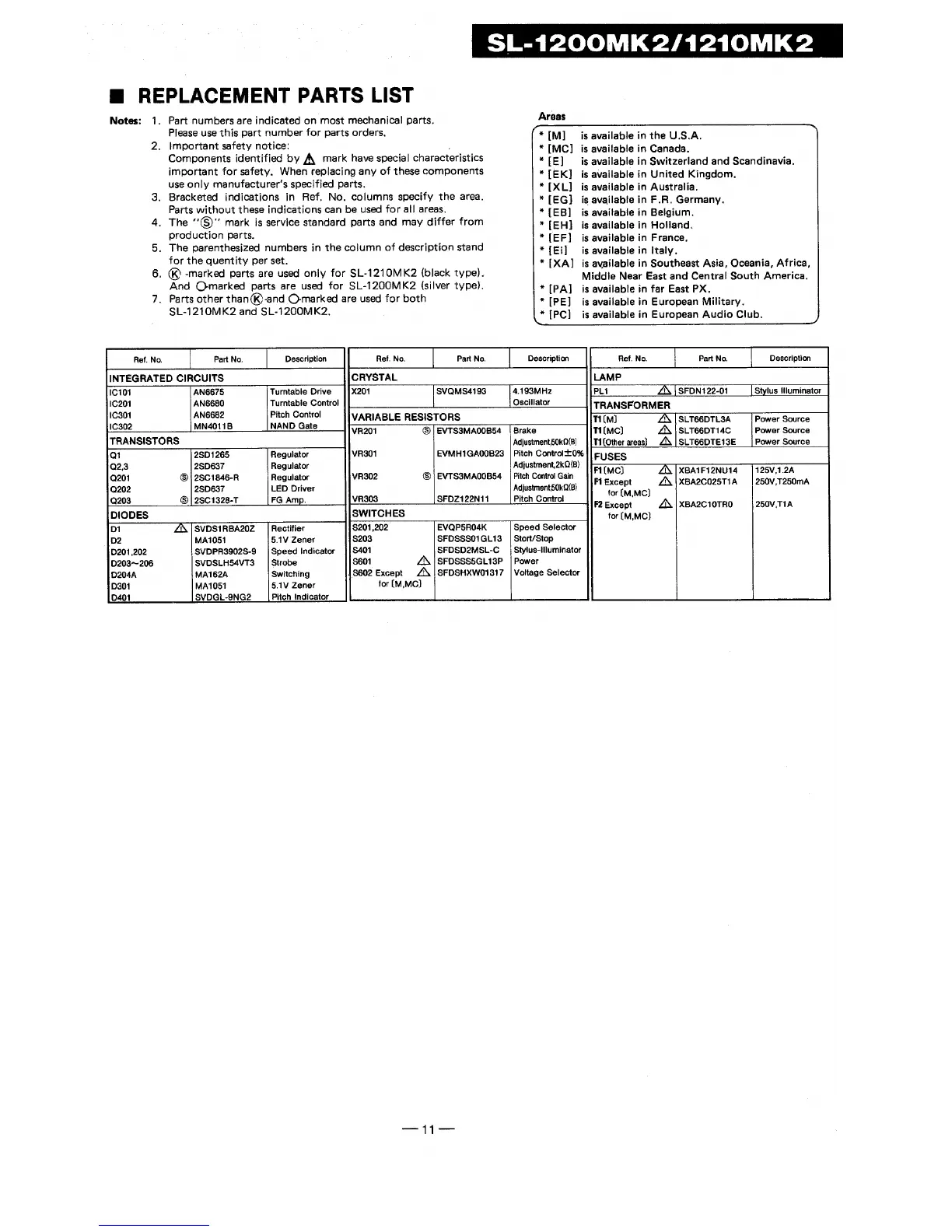

[] REPLACEMENT PARTS LIST
Notes: 1. Part numbers are indicated on most mechanical parts.
Please use this part number for parts orders.
2. Important safety notice:
Components identified by A mark have special characteristics
important for safety. When replacing any of these components
use only manufecturer°s specified parts.
3. Bracketed indications in Ref. No. columns specify the area.
Parts without these indications can be used for ell areas.
4. The "'(_" mark is service standard parts and may differ from
production parts.
5. The parenthesized numbers in the column of description stand
for the quentity per set.
6. _ -marked parts are used only for SL-1210MK2 (black type).
And Omarked parts are used for SL-1200MK2 (silver type),
7. Parts other than®-and Omarked are used for both
SL-1210MK2 and SL-1200MK2,
Areas
* [M] is available in the U.S.A.
* [MC] is available in Canada.
* [E] is available in Switzerland and Scandinavia.
* [EK] is available in United Kingdom.
* [XL] is available in Australia.
* [EG] iS available in F.R. Germany.
* [EB] is available in Belgium.
* [EH] is available in Holland,
* [EF] is available in France.
* [El] is available in Italy.
* [XA] isavailable in Southeast Asia, Oceania, Africa,
Middle Near East and Central South America.
* [PA] is available in far East PX.
* [PE] is available in European Military.
* [PC] is available in European Audio Club.
Ref. No, Part No. Description Ref. No. Part No. Description Ref. No. Part No. Description
CRYSTAL
X201 SVQMS4193
INTEGRATED CIRCUITS
IC101 AN6675
IC201 AN6680
IC301 AN6682
IC302 MN4011 B
TRANSISTORS
Q1 2SD1265
Q2,3 2SD637
Q201 _ 2SC1846-R
iQ202 2SD637
Q203 _ 2SC1328-T
DIODES
D1 Z_ SVDSIRBA20Z
D2 MA1051
D201,202 SVDPR3902S-9
D203_206 SVDSLH54VT3
D204A MA162A
D301 MA1051
D401 SVDGL-9NG2
Turntable Drive
Turntable Control
Pitch Control
NAND Gate
Regulator
Regulator
Regulator
LED Driver
FG Amp.
Rectifier
5.1V Zener
Speed Indicator
Strobe
Switching
5.1V Zener
Pitch Indicator
VARIABLE RESISTORS
VR201 (_ EVTS3MA00B54
VR301 EVM H 1GAOOB23
VR302 (_ EVTS3MA00B54
VR303 SFDZ122N 11
SWITCHES
$201,202 EVQP5R04K
$203 SFDSSS01 GL13
_401 SFDSD2MSL-C
$601 /_ SFDSSS5GL13P
$602 Except ,/_ SFDSHXW01317
for[M,MC]
4.193MHz
JOscillator
Brake
Adjustrnent_50k_3(B)
Pitch Control---i---0%
Adjustment,2kQ(B)
PitchControlGain
AdjustmentS0kO(B)
Pitch Control
Speed Selector
Stort/Stop
Stylus-Illuminator
Power
Voltage Selector
LAMP
PL1 Z_ ISFDN122-01
TRANSFORMER
I'1[M]
I'1[MC]
13[Other areas]
FUSES
FI[MC]
I:1 Except
for [M,MC]
P2 Except
for [M,MC]
IStylus Illuminator
Z_ SLT66DTL3A Power Source
/_X SLT66DT14C Power Source
,Ak SLT66DTE13E Power Source
XBAIF12NU14
XBA2C025T1A
XBA2CIOTR0
125V,1.2A
250V,T250mA
250V,T1 A
