Technics SL-BD22D Service Manual

@

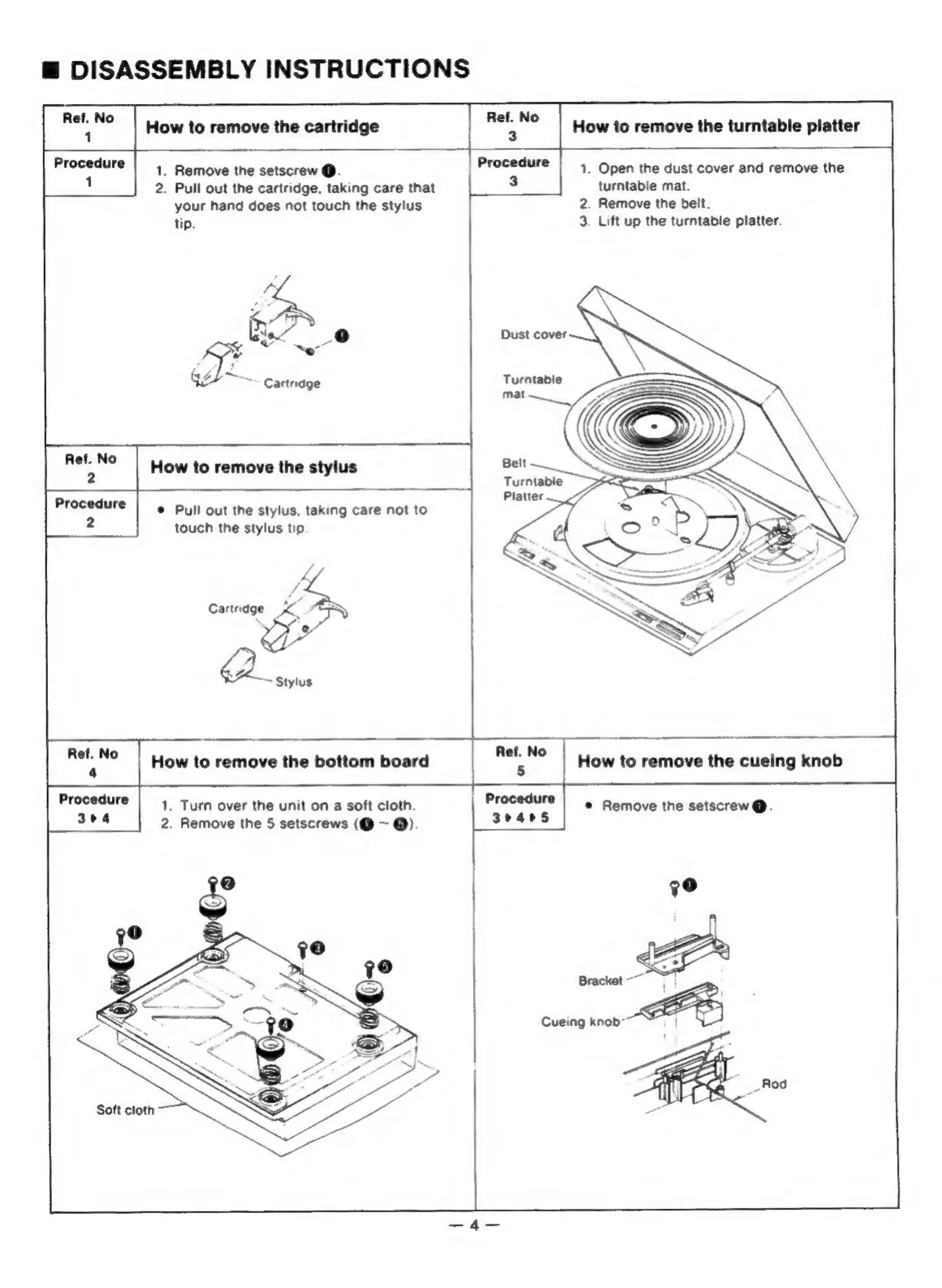

DISASSEMBLY
INSTRUCTIONS
How to remove the cartridge
Ref. No
3 How to remove the turntable platter
Procedure
1
1. Remove the setscrew @.
2. Pull out the cartridge, taking care that
your hand does not touch the stylus
tip.
Procedure
3
1. Open the dust cover and remove the
turntable mat.
2. Remove the belt.
3. Lift up the turntable platter.
Dust cover
Turntable
Soft cloth
f
f.
Be ane How to remove the stylus
Turntable
Platter
Procedure | «putt out the stylus, taking care not to
2 touch the stylus tip
Cartridge Ly
SY
; a
— Stylus
Ret.
Ref.
No
oe How to remove the bottom board 7 5 How to remove the cueing knob
Procedure | 4 Turn over the unit on a soft cloth. Procedure |. Remove the setscrew@.
304 2. Remove the 5 setscrews (@ ~ @) 3e4aes
fl
<2 Z 2
Bracket “~ if
Cueing knob E S
