Connections
(12)
Basic

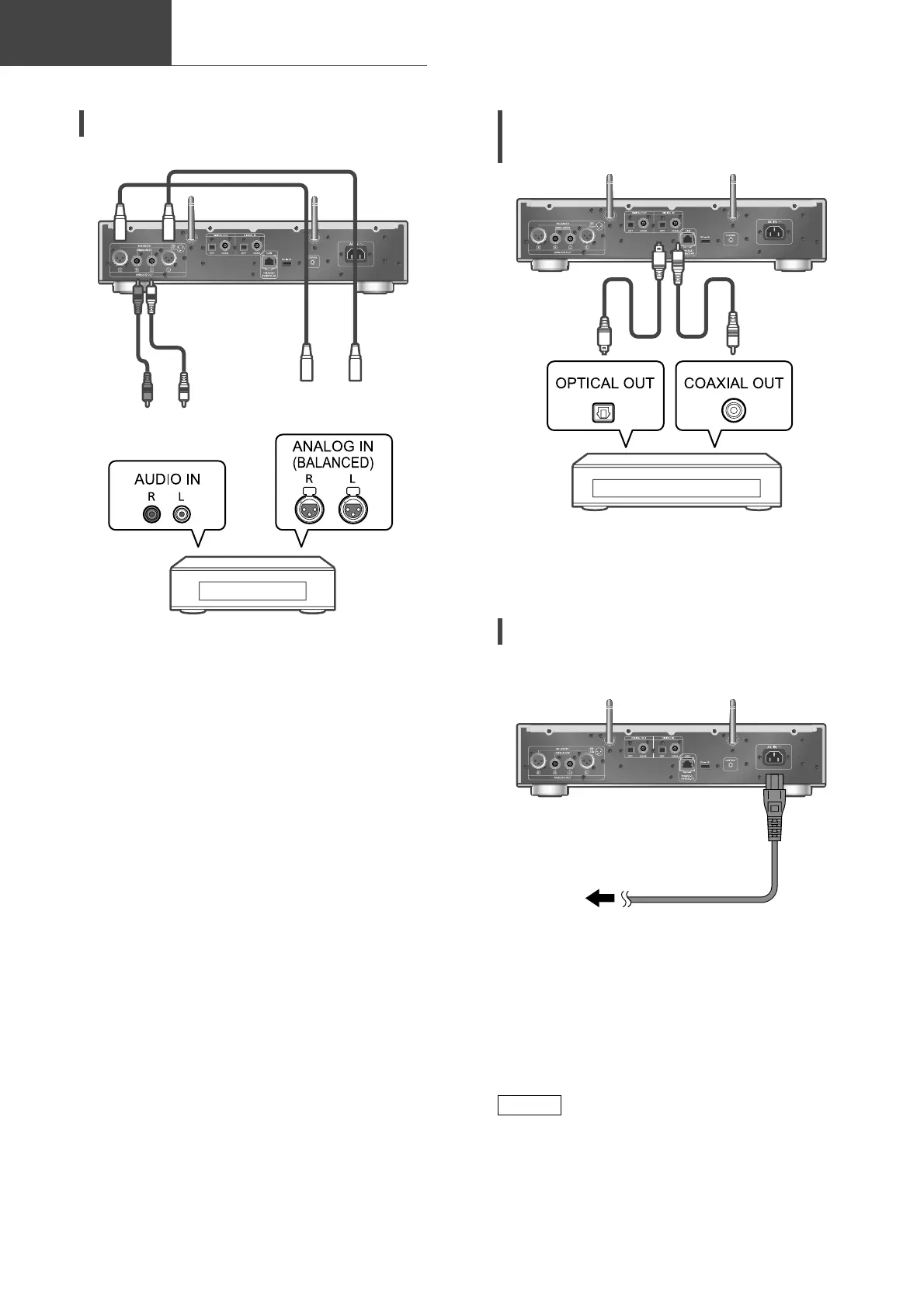

Connecting to an amplifier
XLR cable
*
(not supplied)
Analog audio
cable (supplied)
Amplifier
(AV receiver, control amplifier, etc.)
Pre-amplifier with
unbalanced input
terminals
Pre-amplifier with
balanced input
terminals
*
: We recommend using cables with a length of
3 m or less.
• For details, refer to the operating instructions of
the connected device.
• Do not use any other analog audio cables
except the supplied one.
Connecting to a digital audio output
device
Digital audio output device
Optical digital
audio cable
(not supplied)
Coaxial digital
cable
(not supplied)
• For details, refer to the operating instructions of
the connected device.
AC power supply cord connection
Connect only after all other connections are
completed.
AC power supply
cord (supplied)
To a household
AC outlet
• Use only the supplied AC power supply cord.
• Insert the plugs of the cables to be connected
all the way in.
• Do not bend cables at sharp angles.
• Wireless LAN (Wi-Fi
®
) setting may start when
this unit is turned on. If you stop the Wi-Fi
setting, set “Wi-Fi” to “On” to enable the Wi-Fi
function after “Wi-Fi Setup” is displayed. Select
“On” to keep the Wi-Fi setting. ( 14)
Note
• This unit consumes a small amount of AC power
( 20) even when the unit is in standby mode.
Remove the plug from the main electrical outlet
if you will not be using the unit for an extended
period of time. Place the unit so the plug can be
easily removed.
