Control reference guide (Continued)
(10)
 
 

   
01 Analog audio output terminals
(ANALOG OUT)
• You can connect the pre-amplifier which
has the unbalanced input terminals, etc.
with analog audio cable (supplied) to
output the analog audio signals.
• You can connect the pre-amplifier which
has the balanced input terminals, etc. with
XLR cable (not supplied).
02 Wireless LAN antenna
( 14)
03 Optical digital output terminal (OPT)
You can connect a digital audio input device
such as D/A converter, etc. with optical
digital audio cable (not supplied) and play
back music.
04 Coaxial digital output terminal (COAX)
You can connect a digital audio input device
such as D/A converter, etc. with coaxial
digital cable (not supplied) and play back
music.
05 Optical digital input terminal (OPT)
You can connect a digital audio output
device with optical digital audio cable (not
supplied) and play back music.
• The digital audio input terminals of this unit
can only detect the following linear PCM
signals. For details, refer to the operating
instructions of the connected device.
- Sampling frequency:
32/44.1/48/88.2/96 kHz
- Number of quantization bits:
16/24 bit

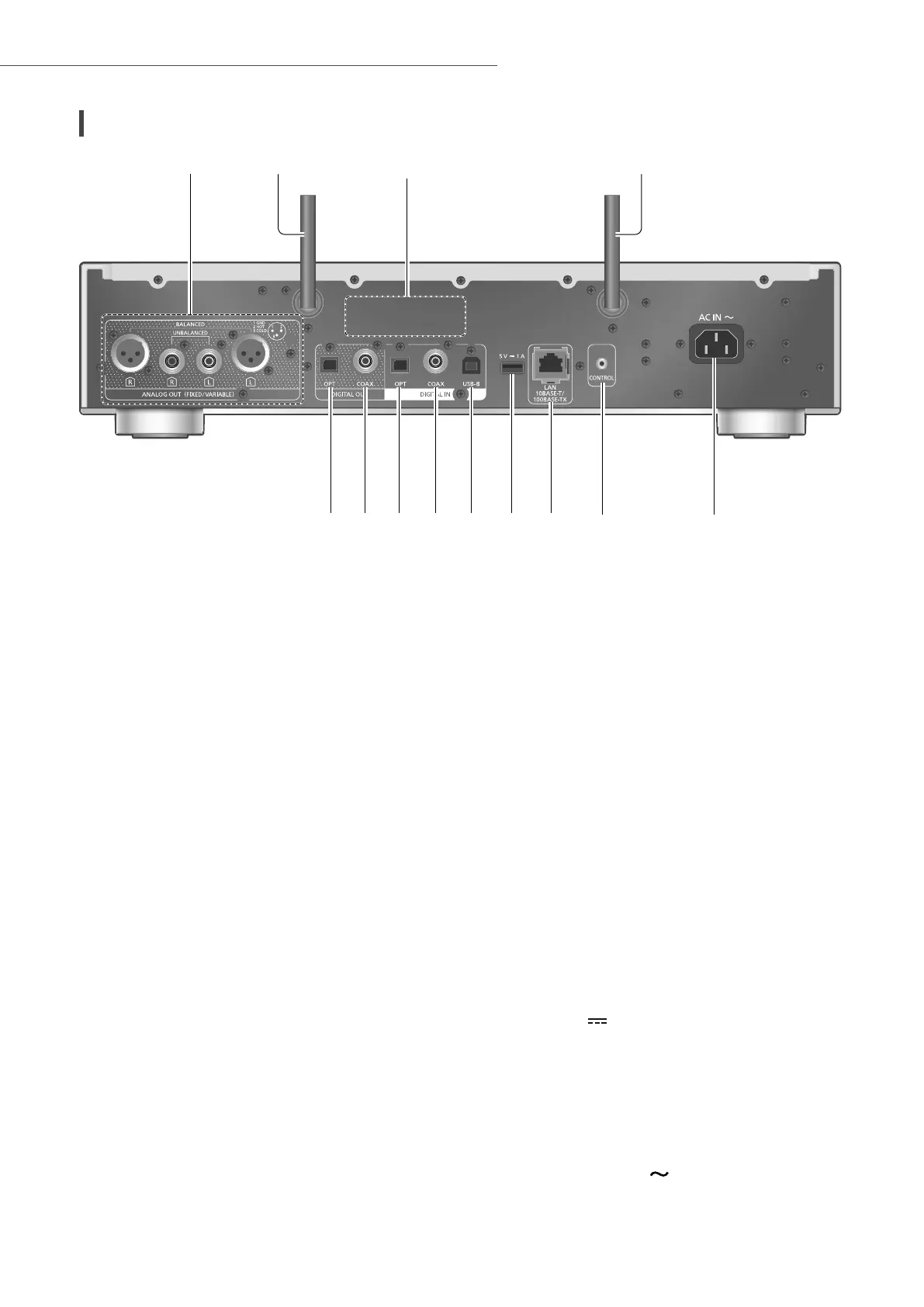

This unit (rear)
06 Coaxial digital input terminal (COAX)
You can connect a digital audio output
device with coaxial digital cable (not
supplied) to this unit and play back music.
• The digital audio input terminals of this unit
can only detect the following linear PCM
signals. For details, refer to the operating
instructions of the connected device.
- Sampling frequency:
32/44.1/48/88.2/96/176.4/192 kHz
- Number of quantization bits:
16/24 bit
07 USB-B terminal (USB-B)
You can connect the PC, etc. or another
device with USB 2.0 cable (not supplied) to
this unit and play back music.
• For details, refer to “Operating
Instructions”.
08 Product identification marking
• The model number is indicated.
09 USB-A terminal (USB-A Rear)
(DC 5 V
1 A)
You can connect a USB HDD to the unit and
play back music stored on the USB HDD.
( 18)
10 LAN terminal
( 14)
11 System terminal (CONTROL)
12 AC IN terminal (
)
( 12)
