(optical pickup).
3.1. Handling of traverse deck (optical pickup)
1. Do not subject the traverse deck (optical pickup) to static electricity as it is
extremely sensitive to electrical shock.
2. To protect the laser diode against electrostatic breakdown, short the flexible
board (FFC board) with a clip or similar object. Refer to Fig. 3-1.
3. Take care not to apply excessive stress to the flexible board (FFC board).
4. Do not turn the variable resistor (laser power adjustment). It has already been
adjusted. Refer to Fig. 3-1.

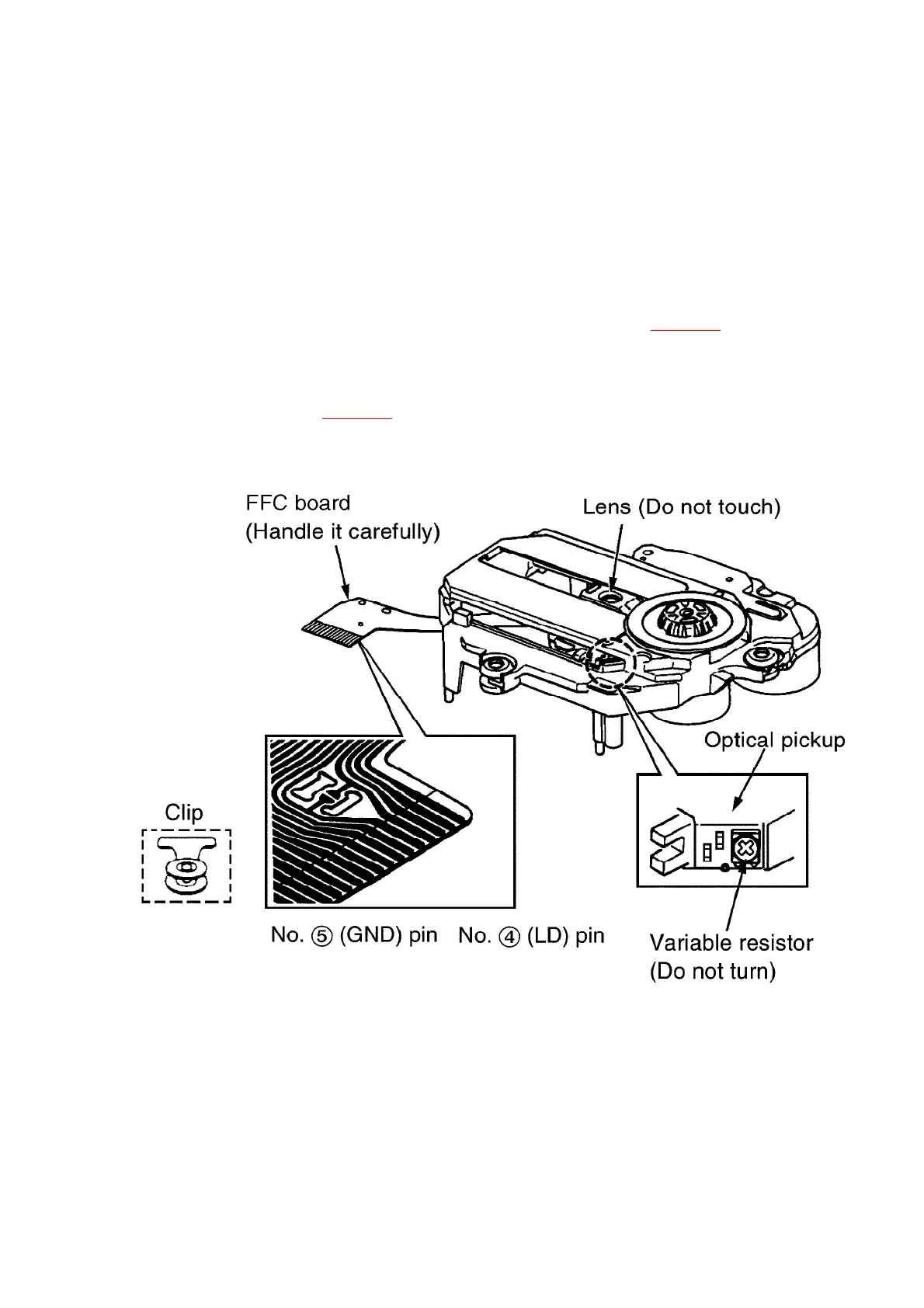

Fig. 3-1.
3.2. Grounding for electrostatic breakdown prevention
3.2.1. Human body grounding
Use the anti-static wrist strap to discharge the static electricity from your body.
