Technics SL-J110R Service Manual

SL-J110R.

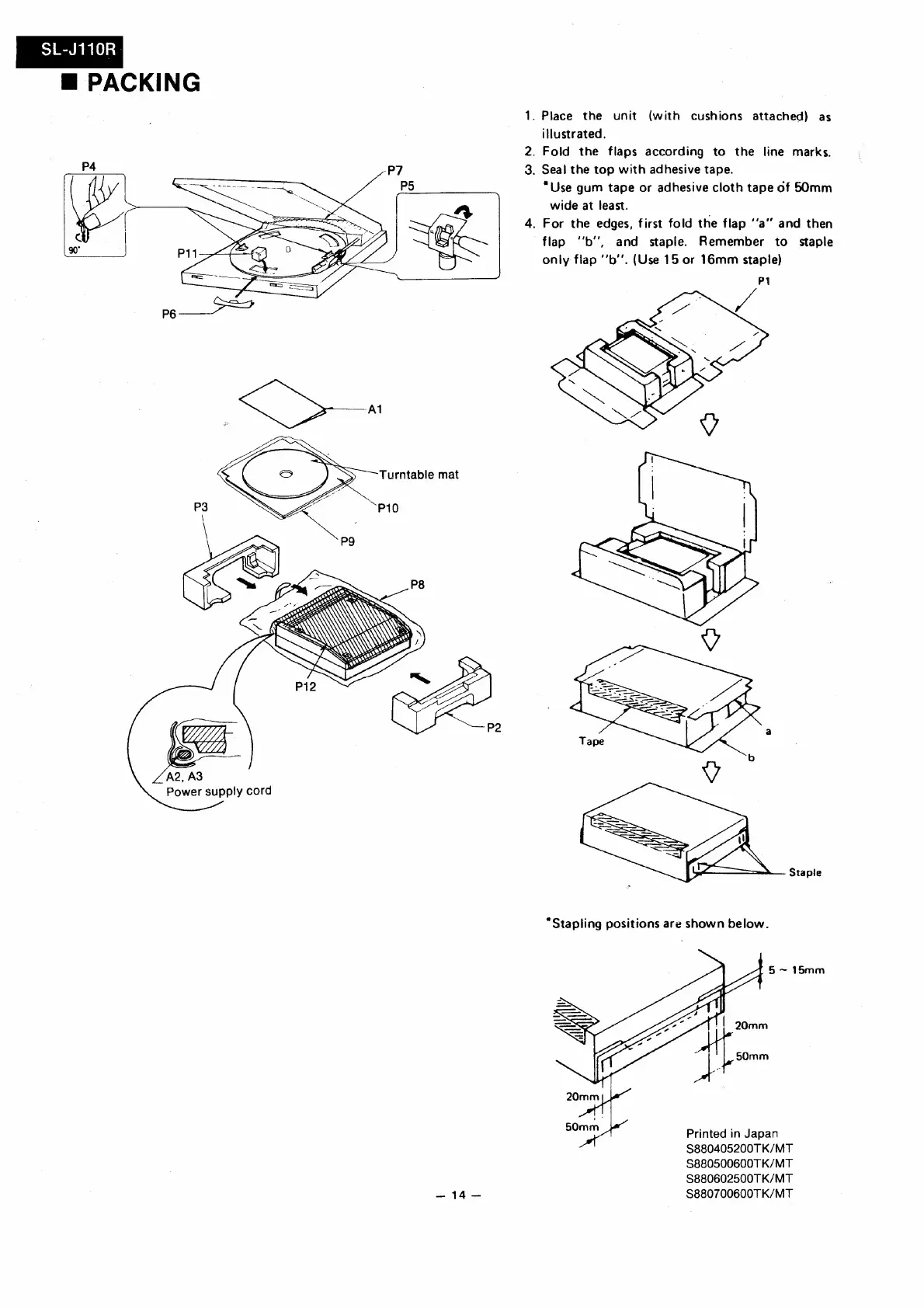

@ PACKING
A2,A3
Power supply cord
—~14—
. Place the unit (with cushions attached) as
illustrated.
. Fold the flaps according to the line marks.
. Seal the top with adhesive tape.
“Use gum tape or adhesive cloth tape of 50mm
wide at least.
. For the edges, first fold the flap ‘‘a” and then
flap ‘‘b’’, and staple. Remember to staple
only flap ‘‘b’’. (Use 15 or 16mm staple)
PI
Printed in Japan
$880405200TK/MT
S880500600TK/MT
S880602500TK/MT
$880700600TK/MT

Technics SL-J110R Specifications

Turntable Section

tracking error angle	Within 3°18' at inner groove of 30 cm (12”) disc
stylus pressure range	1.25 ±0.25 g
diameter	300 mm (12")

Cartridge Section

type	Moving magnet stereo cartridge
frequency response	10 Hz—30 kHz
output voltage	2.5 mV at 1 kHz

Power

power supply	AC 240V, 50/60 Hz
power consumption	3 W
motor	DC motor

Weight and Dimensions

weight	2.5 kg
dimensions	360 x 83 x 320 mm
cartridge weight	6 g
