Technics SL-PC25

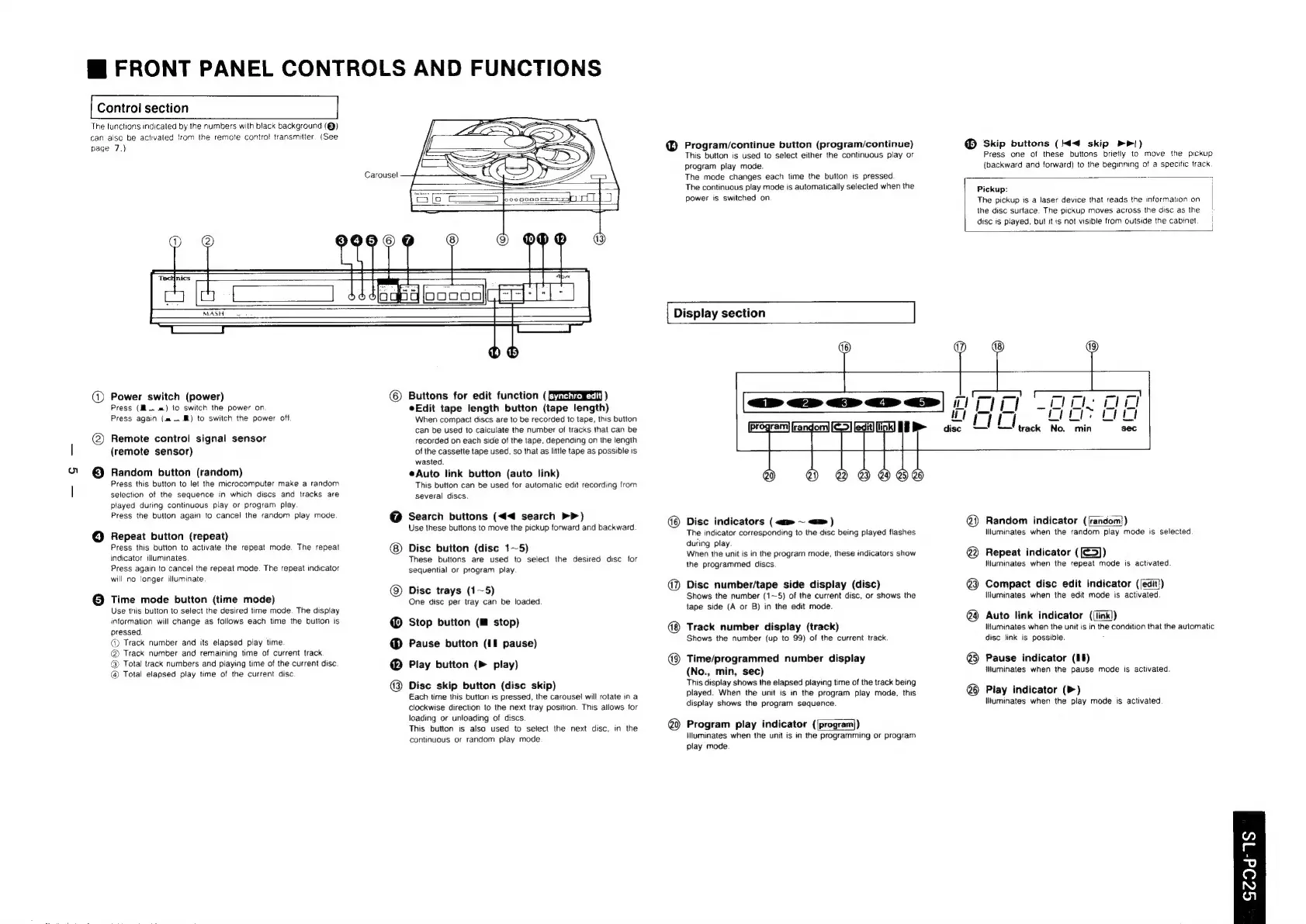

Mi FRONT PANEL CONTROLS AND FUNCTIONS
Control section
The functions indicated by the numbers with black background (@)
can also be activated from the remote contro! transmitter. (See
page 7.)
Carousel
@) Power switch (power)
Press (BW m) to switch the power on.
Press again (m_.M) to switch the power off
@ Remote control signal sensor
(remote sensor)
o ~@ Random button (random)
Press this button to let the microcomputer make a random
selection of the sequence in which discs and tracks are
played during continuous play or program play
Press the button again to cancel the random play mode
© Repeat button (repeat)
Press this button to activate the repeat mode. The repeat
indicator illuminates.
Press again to cancel the repeat mode. The repeat indicator
will no longer illuminate
© Time mode button (time mode)
Use this button to select the desired time mode. The display
information will change as follows each time the button is
pressed
(1) Track number and its elapsed play time
@ Track number and remaining time of current track
@ Total track numbers and playing time of the current disc
@ Total elapsed play time of the current disc
© Buttons for edit function ( IMIZETI )
eEdit tape length button (tape length)
When compact discs are to be recorded to tape, this button
can be used to calculate the number of tracks that can be
recorded on each side of the tape, depending on the length
of the cassette tape used. so that as little tape as possible is
wasted.
eAuto link button (auto link)
This button can be used for automatic edit recording from
several discs.
°
Search buttons (4< search >P)
Use these buttons to move the pickup forward and backward
©
Disc button (disc 1~5)
These buttons are used to select the desired disc for
sequential or program piay
Disc trays (1~5)
One disc per tray can be loaded
Stop button (MM stop)
Pause button (il pause)
Play button (P play)
©20ee6 ©
Disc skip button (disc skip)
Each time this button is pressed, the carousel! will rotate ina
clockwise direction to the next tray position. This allows for
loading or unloading of discs
This button is also used to select the next disc, in the
continuous or random play mode
@® Program/continue button (program/continue)
This button is used to select either the continuous play or
program play mode.
The mode changes each time the button is pressed
The continuous play mode is automatically selected when the
power is switched on
Display section
® Skip buttons (<4 skip PP!)
Press one of these buttons briefly to move the pickup
(backward and forward) to the beginning of a specific track
Pickup:
The pickup is a laser device that reads the information on
the disc surface. The pickup moves across the disc as the
disc is played, but it is not visible from outside the cabinet j
J
Disc indicators (<<. ~ «»)
The indicator corresponding to the disc being played flashes
during play
When the unit is in the program mode, these indicators show
the programmed discs.
@ Disc number/tape side display (disc)
Shows the number (1~5) of the current disc, or shows the
tape side (A or B) in the edit mode.
Track number display (track)
Shows the number (up to 99) of the current track
Time/programmed number display
(No., min, sec)
This display shows the elapsed playing time of the track being
played. When the unit is in the program play mode, this
display shows the program sequence.
@ Program play indicator ({program))
Hluminates when the unit is in the programming or program
play mode.
@) Compact disc edit indicator (
® ©
@) Random indicator ({random!
Mluminates when the random play mode is selected
@ Repeat indicator ([@5))
lluminates when the repeat mode is activated
llluminates when the edit mode is activat
@ Auto link indicator ((link])
Iluminates when the unit is in the condition that the automatic
disc link is possible.
Pause indicator (If)
luminates when the pause mode is activated.
Play indicator (>)
Iltuminates when the play mode is activated
