SL-D210

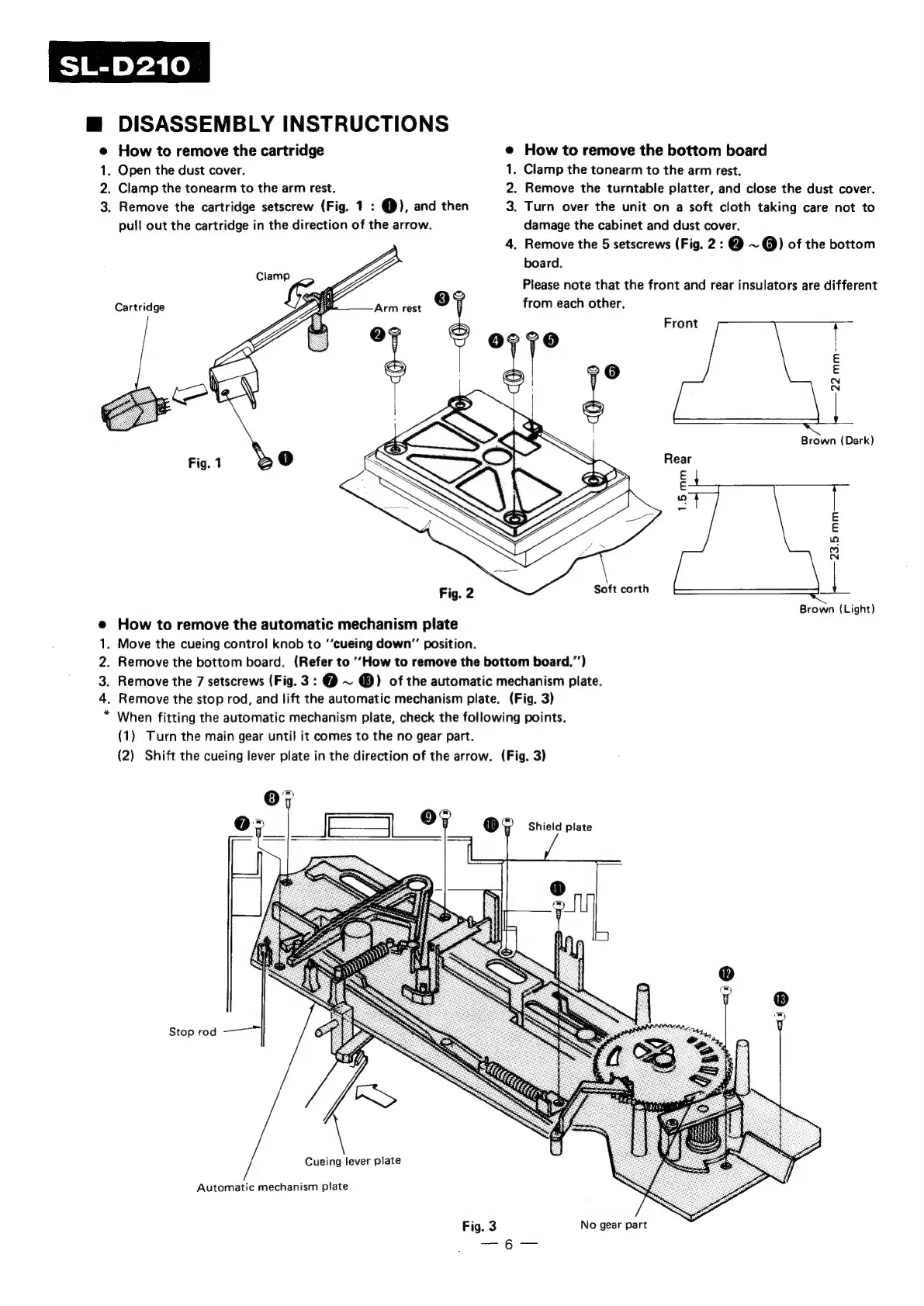

m@ DISASSEMBLY INSTRUCTIONS
e@ How to remove the cartridge
1. Open the dust cover.
How to remove the bottom board
. Clamp the tonearm to the arm rest.
2. Clamp the tonearm to the arm rest. . Remove the turntable platter, and close the dust cover.
3. Remove the cartridge setscrew (Fig. 1 : @), and then . Turn over the unit on a soft cloth taking care not to
pul! out the cartridge in the direction of the arrow. damage the cabinet and dust cover.
. Remove the 5 setscrews (Fig. 2: @ ~@) of the bottom
board.
Please note that the front and rear insulators are different
from each other.
Wn @
Cartridge
Front
22 mm———
Brown (Dark)
Rear
L-—225 OO]
Fig. 2 Soft corth
Brown (Light)
e How to remove the automatic mechanism plate
1. Move the cueing control knob to ‘‘cueing down” position.
2. Remove the bottom board. (Refer to ‘How to remove the bottom board.’’)
3. Remove the 7 setscrews (Fig. 3: @ ~ @) of the automatic mechanism plate.
4. Remove the stop rod, and lift the automatic mechanism plate. (Fig. 3)
* When fitting the automatic mechanism plate, check the following points.
(1) Turn the main gear until it comes to the no gear part.
(2) Shift the cueing lever plate in the direction of the arrow. (Fig. 3)
Stop rod
Cueing lever plate
Automatic mechanism plate
Fig. 3 No gear part
— 6 —
