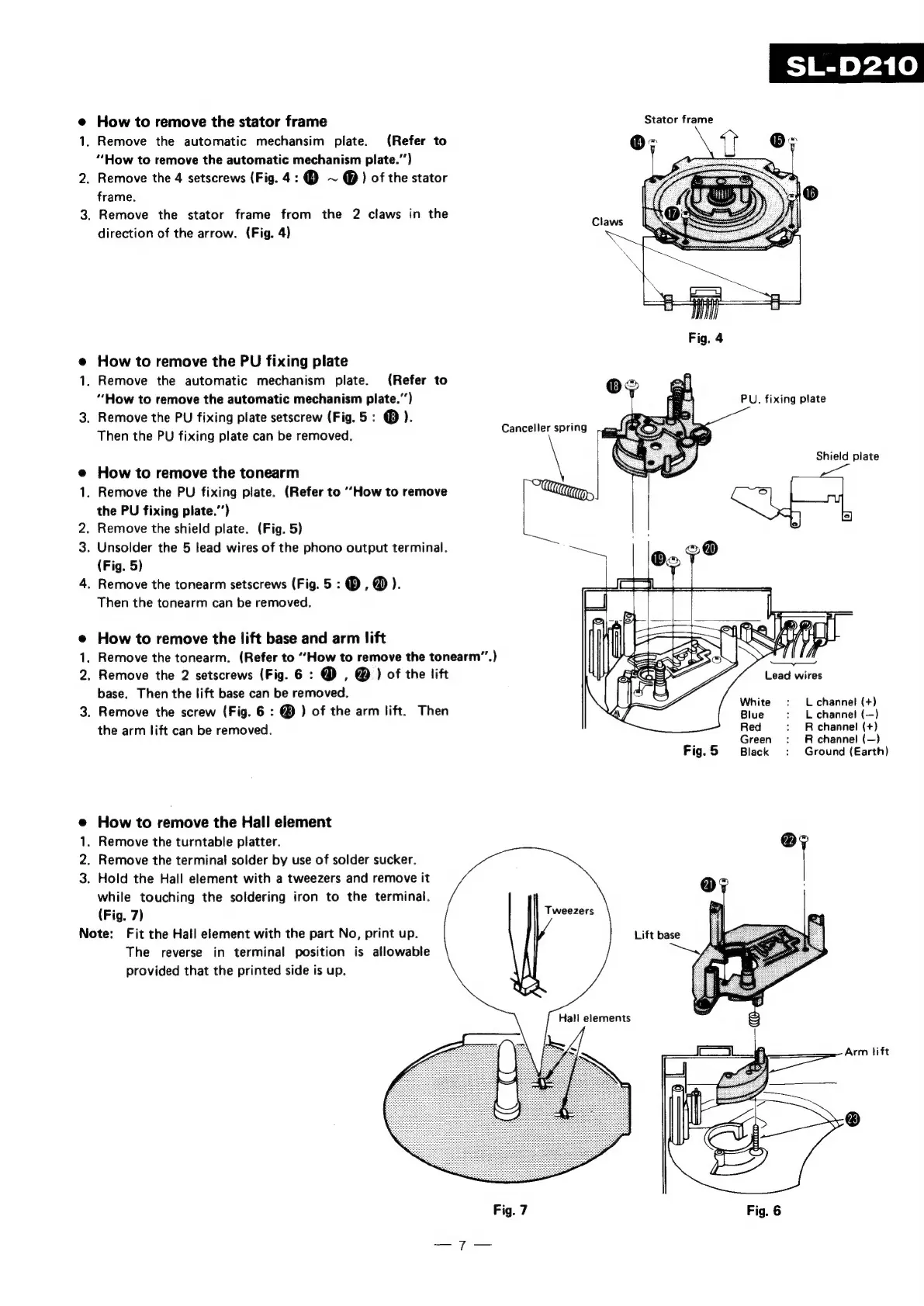

How
to
remove
the
stator
frame
1.
Remove
the
automatic
mechansim
plate.
(Refer
to
“How
to
remove
the
automatic
mechanism
plate.’’)
.
Remove
the
4
setscrews
(Fig.
4:
@
~
@)
of
the
stator
frame.
.
Remove
the
stator
frame
from
the
2
claws
in
the
direction
of
the
arrow.
(Fig.
4)
How
to
remove
the
PU
fixing
plate
1.
Remove
the
automatic
mechanism
plate.
(Refer
to
“‘How
to
remove
the
automatic
mechanism
plate.’’)
.
Remove
the
PU
fixing
plate
setscrew
(Fig.5:
).
Then
the
PU
fixing
plate
can
be
removed.
How
to
remove
the
tonearm
1.
Remove
the
PU
fixing
plate.
(Refer
to
“How
to
remove
the
PU
fixing
plate.’’)
2.
Remove
the
shield
plate.
(Fig.
5)
3.
Unsolder
the
5
lead
wires
of
the
phono
output
terminal.
(Fig.
5)
4.
Remove
the
tonearm
setscrews
(Fig.
5:
@,
@
).
Then
the
tonearm
can
be
removed.
e
How
to
remove
the
lift
base
and
arm
lift
1.
Remove
the
tonearm.
(Refer
to
“How
to
remove
the
tonearm”.)
2.
Remove
the
2
setscrews
(Fig.
6
:
@
,
@
)
of
the
lift
base.
Then
the
lift
base
can
be
removed.
3.
Remove
the
screw
(Fig.
6
:
@
)
of
the
arm
lift.
Then
the
arm
lift
can
be
removed.
e
How
to
remove
the
Hall
element
1.
Remove
the
turntable
platter.
2.
Remove
the
terminal
solder
by
use
of
solder
sucker,
3.
Hold
the
Hall
element
with
a
tweezers
and
remove
it
while
touching
the
soldering
iron
to
the
terminal.
(Fig.
7)
Note:
Fit
the
Hall
element
with
the
part
No,
print
up.
The
reverse
in
terminal
position
is
allowable
provided
that
the
printed
side
is
up.
Fig.
7
Stator
frame
PU.
fixing
plate
Canceller
spring
Shield
plate
Lead
wires
White
L
channel
(+)
Blue
L
channel
(—)
Red
R
channel
(+)
:
Green
R
channel
(—)
Fig.5
~—
Black
Ground
(Earth)
Tweezers
Lift
base
Hall
elements
Arm
tift
