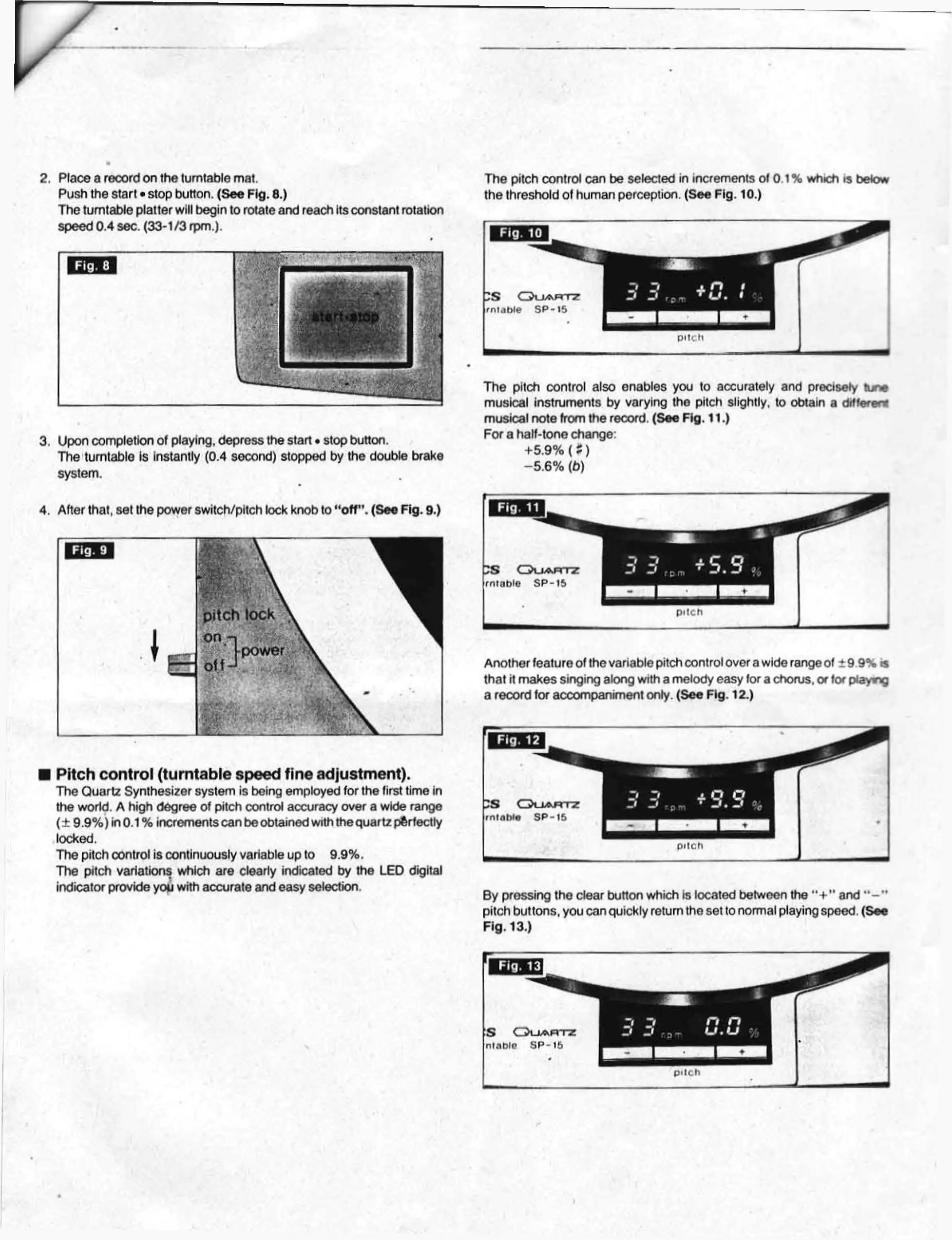

2.
Place
a record on the turntable mat.
Push
the start • stop button.
(See Fig.
8.)
The
turntable platter will begin to rotate and
reach
Its
constant rotation
speed
0.4
sec.
(33-1/3 rpm.).
Fio.
8
1
•
3.
Upon completion of playing,
depress
the start • stop button.
The
turntable is instantly (0.4 second) stopped by the double brake
system.
4. After that, set the power switch/pitch lock knob to
"off".
(See Fig.
9.)
Pitch
control (turntable
speed
fine adjustment).
The
Quartz
Synthesizer
system
is being employed for the first time in
the world. A high degree of pitch control
accuracy
over a wide range
(± 9.9%)
in 0.1
%
increments
can be
obtained with the quartz perfectly
locked.
The
pitch control is continuously variable up to 9.9%.
The
pitch variations which are clearly indicated by the LED digital
indicator provide you with accurate
and
easy
selection.
The
pitch control can be selected in increments of
0.1%
which is betow
the threshold of human perception. (See
Fig.
10.)
The
pitch control also enables you to accurately and precisely
turn
musical
instruments by varying the pitch slightly, to obtain a different
musical
note from the record. (See
Fig.
11.)
For
a half-tone change:
+5.0% (9)
-5.6% (o)
Fig.
11
CS
OUAHTZ
rniabie SP-15
i?3
rpm
+5.S
pitch
Another feature of the
variable
pitch control over
a
wide
range
of ±9 9% is
that it
makes
singing along with a melody
easy
for
a
chorus,
or for ptayng
a
record for accompaniment only. (See
Fig.
12.)
Fig.
12
OLLOJTTZ
rninWe SP-15
By
pressing the clear
button
which is located between the "+" and
pitch buttons, you
can
quickly return the
set
to normal
playing
speed.
(!
Fig.
13.)
Fig.
13
S
OUARTZ
nl.iblo SP-15
