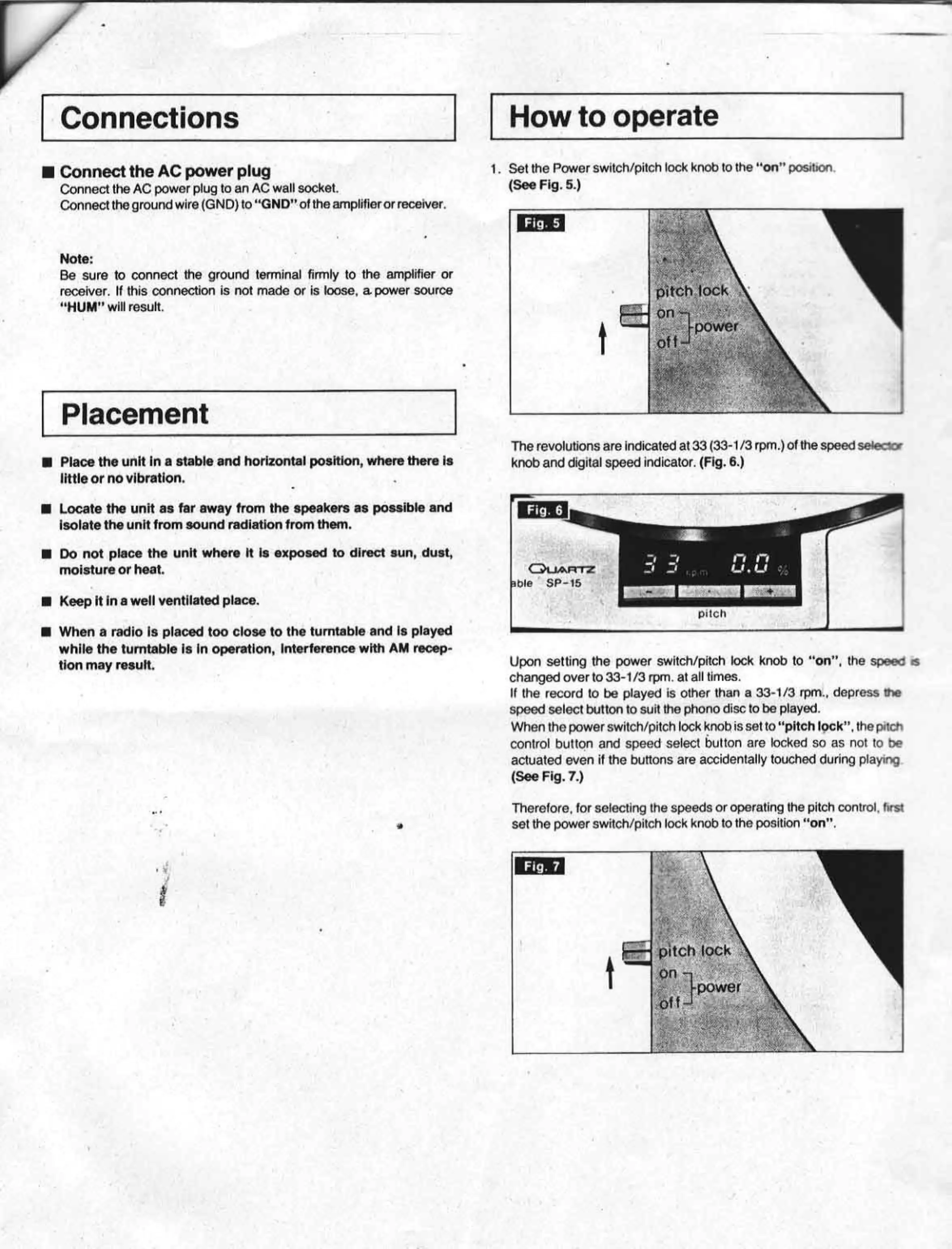

Connections
How to operate
Connect
the
AC
power plug
Connect
the
AC
power plug to
an
AC
wall socket.
Connect
the ground
wire
(GND)
to
"GND"
of
the
amplifier or
receiver.
Note:
Be
sure to connect the ground terminal firmly to the amplifier or
receiver.
If this connection is not made or is loose, a power source
"HUM"
will result.
Placement
Place
the unit In a stable and horizontal
position,
where there is
little
or no vibration.
Locate
the unit as far away from the
speakers
as
possible
and
isolate
the unit from
sound
radiation from them.
Do not place the unit where it Is exposed to direct sun, dust,
moisture
or heat.
Keep
It in a well ventilated
place.
When a radio is placed too
close
to the turntable and Is played
while the turntable is In operation, Interference with AM
recep-
tion may result.
1.
Set the
Power
switch/pitch lock knob to the
"on"
position.
(See
Fig.
5.)
The
revolutions are indicated
at
33 (33-1/3
rpm.)
of the
speed
knob and
digital
speed
indicator.
(Fig.
6.)
Fig.
6
OUAfTTZ
mie SP-15
n
n
u.u
pitch
Upon setting the power switch/pitch lock knob to "on", the speed is
changed
over to 33-1/3
rpm.
at
all
times.
If the record to be played is other than a 33-1/3 rpm., depress the
speed
select
button
to suit the phono
disc
to be
played.
When
the power
switch/pitch
lock knob
is
set
to
"pitch
lock",
the
pitch
control
button
and speed select
button
are locked so as not to be
actuated
even if the buttons are accidentally touched during playing
(See
Fig.
7.)
Therefore,
for selecting the
speeds
or operating the pitch control, first
set
the power switch/pitch lock knob to the position "on".
