Technics ST-600

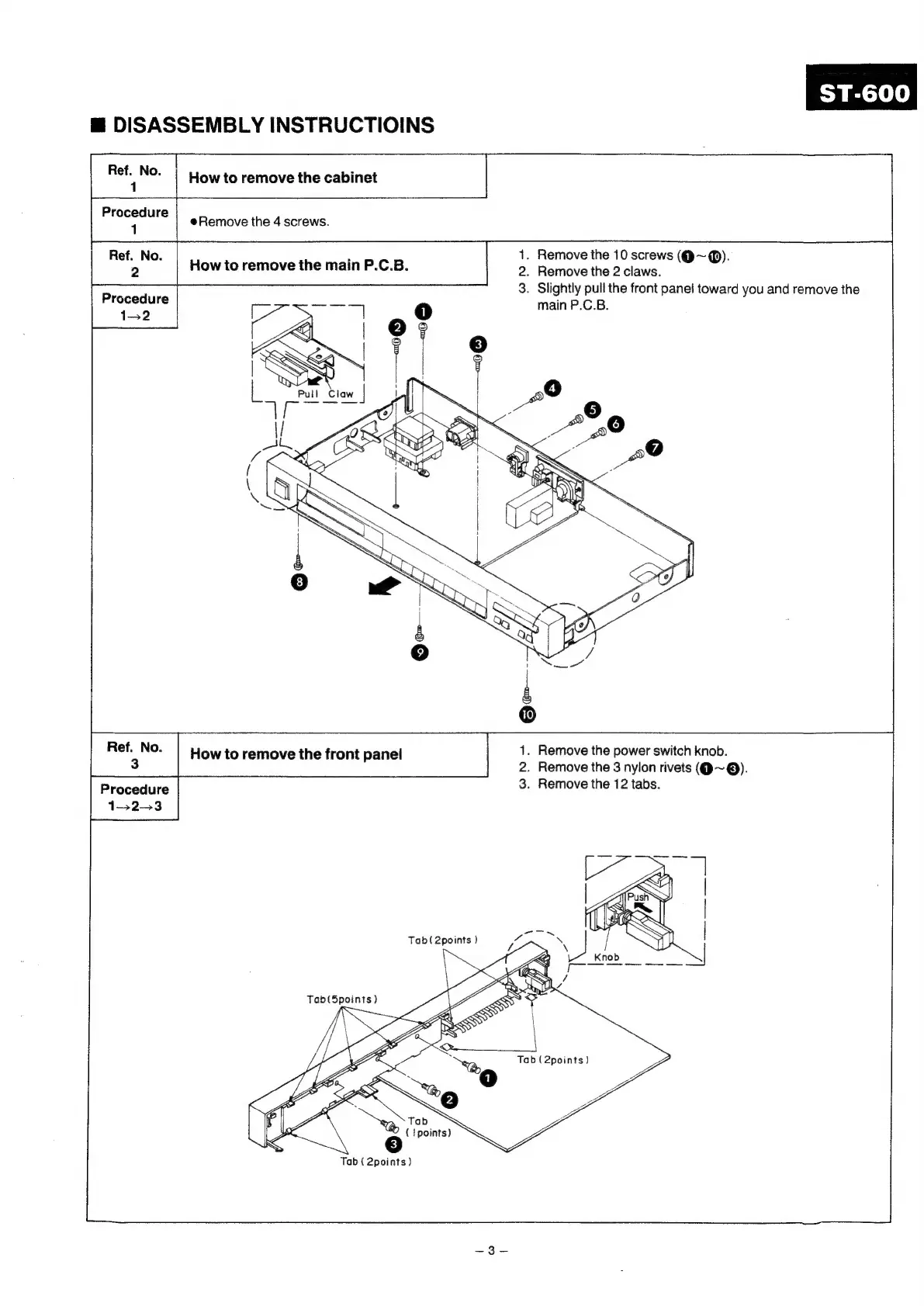

m@ DISASSEMBLY INSTRUCTIOINS
Ref. No. | How to remove the cabinet
1
e@Remove
the
4
screws.
Ref. No. 1. Remove the 10 screws (Q@~@®).
2 How to remove the main P.C.B. Hamovethe 2 laws:
Procedure
1-2
. Slightly pull the front pane! toward you and remove the
main P.C.B.
©
How to remove the front pane! 1. Remove the power switch knob.
2. Remove the 3 nylon rivets (Q@~®).
Procedure
3.
Remove
the
12
tabs.
152-3
