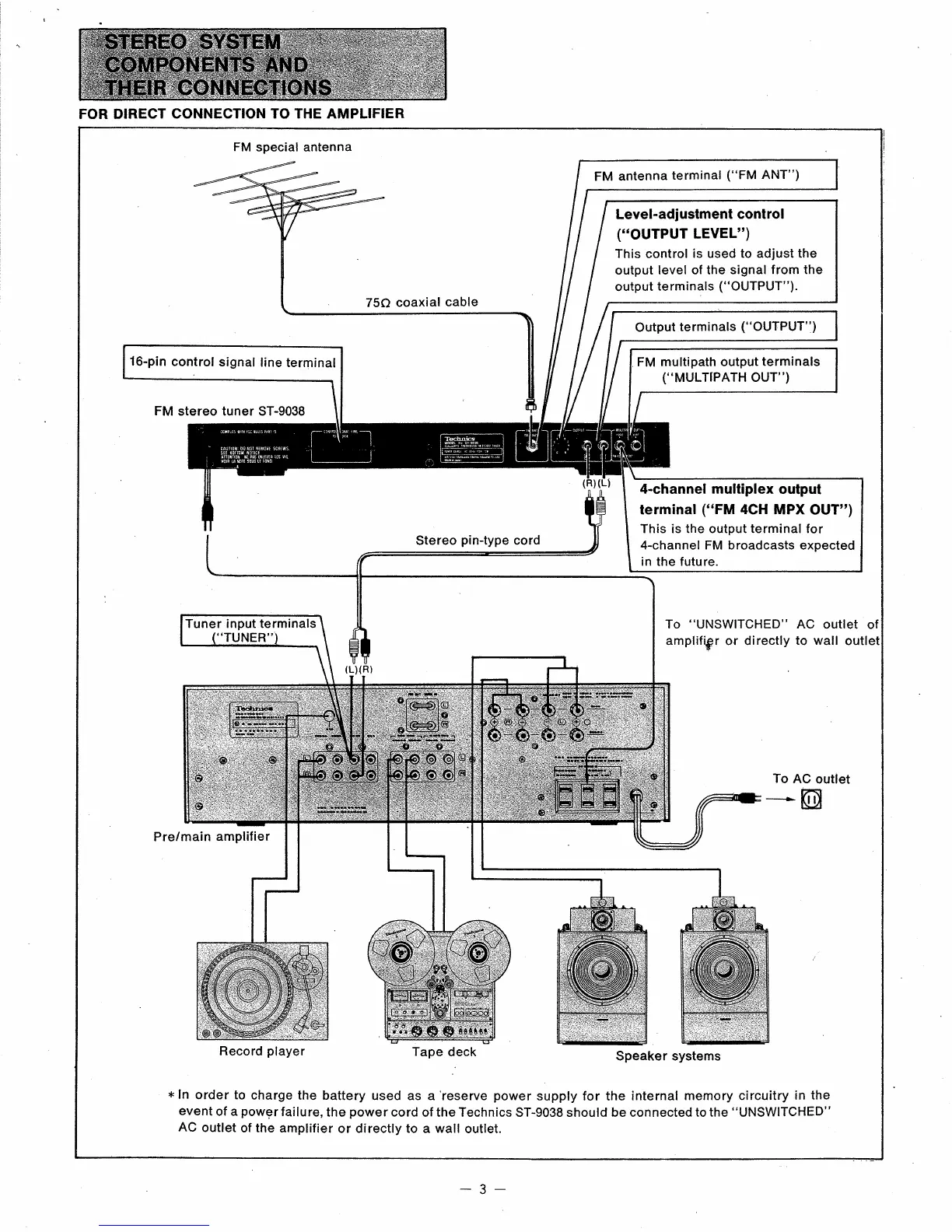

FOR DIRECT
CONNECTION TO THE AMPLIF¡ER
Tuner input
terminals
..TUNER'
FM
antenna
terminal
("FM
ANT")
Output
terminals
("OUTPUT")
Level-adjustmenl control
("ouTPUT
LEVEL")
This control
is used to adjust the
output level
of the signal
from the
output
terminals
("OUTPUT").
16-pin
control
signal
line term¡nal
FM
multipath output
terminals
("MULTIPATH
OUT")
4-channel
multiplex
output
terminal
("FM
4CH
MPX
OUT")
This is
the output terminal for
4-channel FM broadcasts expected
in the future.
FM
special antenna
75O
coaxial
cable
FM
stereo tuner ST-9038
Stereo
pinlype
cord
To
"UNSWITCHED"
AC
outlet of
amplifiçr or directly to wall outlet
ïo
AC
outlet
.-*@
Pre/main
amplifier
Record
player
Tape
deck
Speaker systems
x
ln
order
to charge
the battery used
as a reserve
power
supply for the
internal memory
circuitry in
the
event
of a
power
failure,
the
power
cord of the Technics ST-9038
should
be connected to the
"UNSWITCHED"
AC
outlet
of the ampl¡f¡er
or
directly
to a
wall
outlet.
-3-
