Technics SU-C909U Service Manual

3.2 Operation Check
TOP PREVIOUS NEXT
1. Input a signal (1 kHz, 100 mV) to the each line-in terminal.
2. Connect the oscilloscope or the speaker with the built-in amplifier to the PRE OUT terminals and
check if the signals are outputting from this unit.

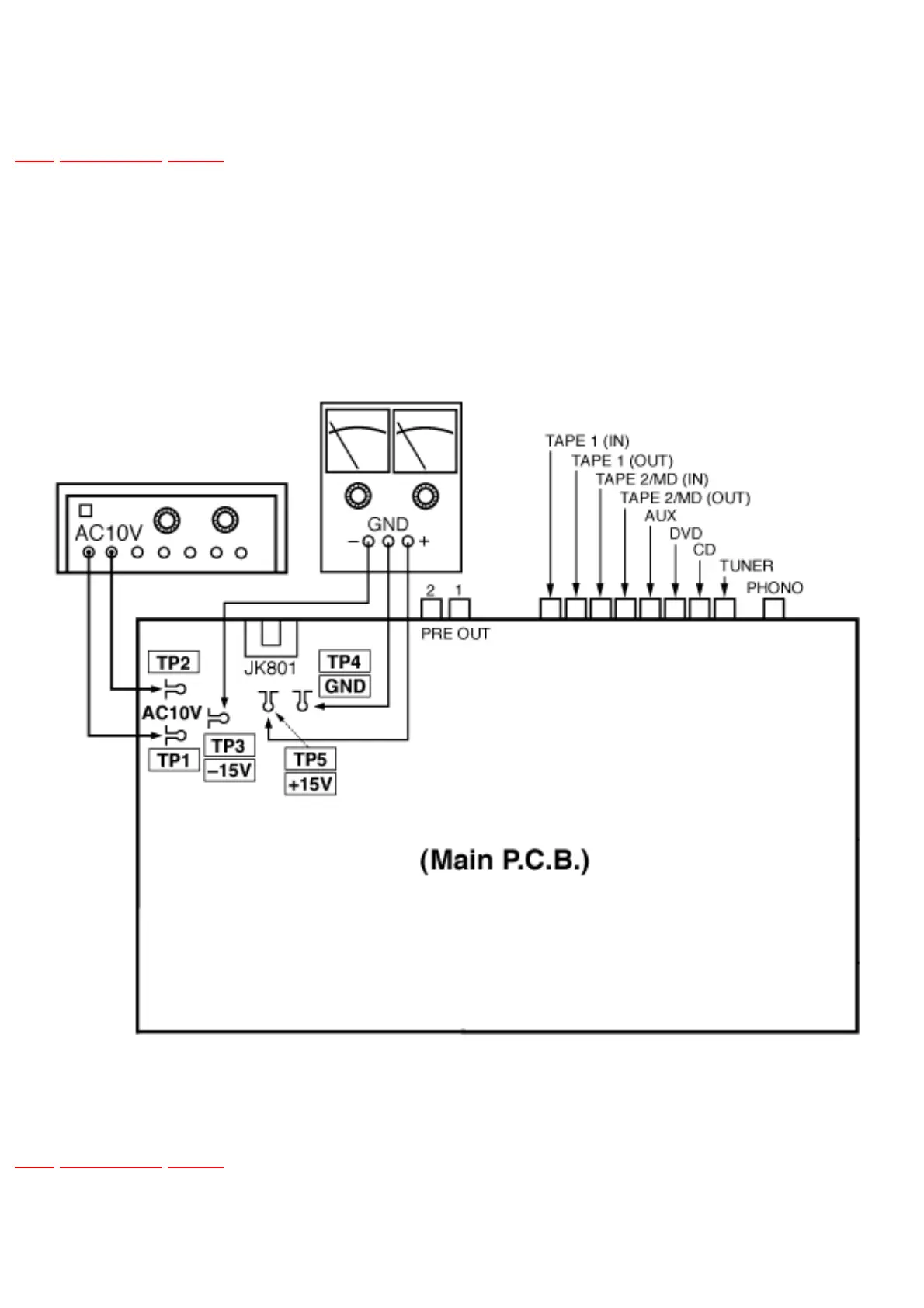

Fig.1
•@
