Technics SU-G700M2

English
09
Control reference guide
(09)


 
 

   
 

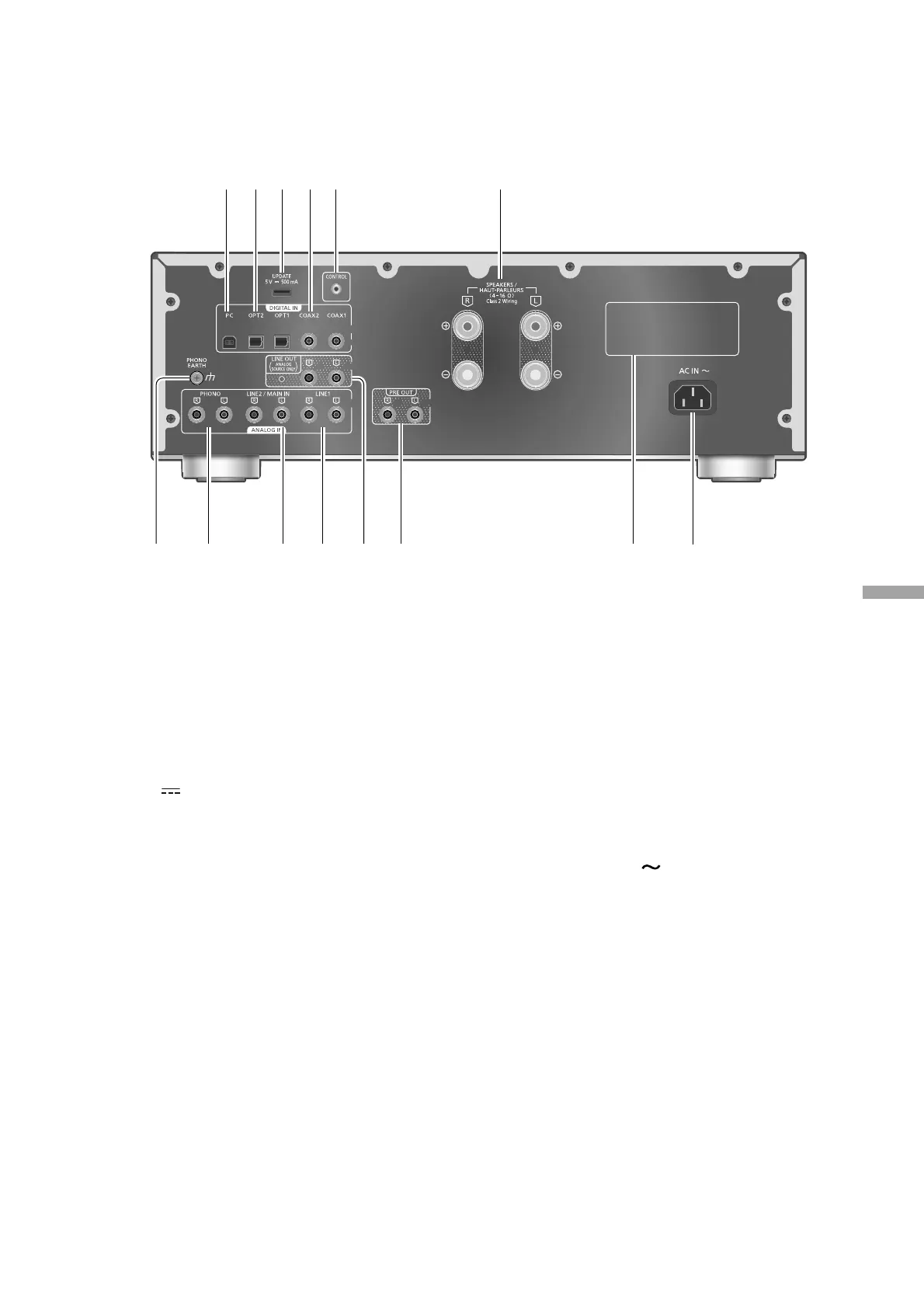

10 USB-B terminal
• For connecting to a PC, etc. ( 15)
11 Optical digital input terminals
(OPT1/OPT2) ( 14)
12 UPDATE terminal (USB-A)
(DC 5 V
500 mA) ( 25)
13 Coaxial digital input terminals
(COAX1/COAX2) ( 14)
14 System terminal (CONTROL) ( 26)
15 Speaker output terminals ( 12)
16 PHONO EARTH terminal ( 16)
• For connecting the ground wire of a
turntable.
17 Analog audio input terminals (PHONO)
( 16)
• Please use the cable less than 3 m.
18 Analog audio input terminals
(LINE2/MAIN IN)
• These input terminals are combined with
LINE2 and MAIN IN. Switch the function
according to the connected equipment.
( 17, 18)
19 Analog audio input terminals (LINE1)
( 16)
20 Analog audio output terminals
(LINE OUT) ( 21)
21 Analog audio output terminals (PRE OUT)
( 20)
22 Product identification marking
• The model number is indicated.
23 AC IN terminal (
) ( 13)
