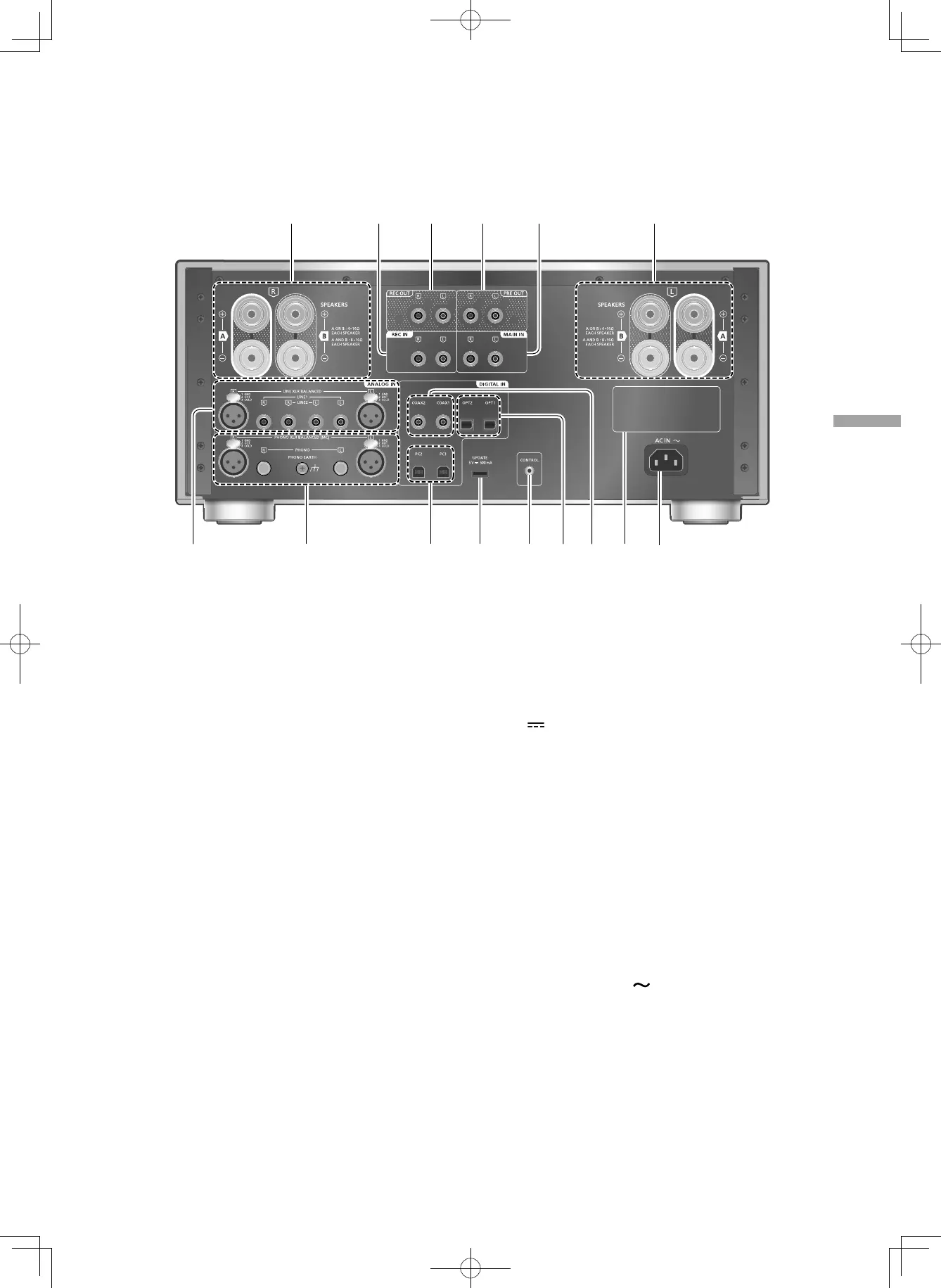

Control reference guide
(09)
10 Speaker output terminals
( 12)
11 Analogue audio input terminals (REC IN)
( 15, 19)
12 Analogue audio output terminals
(REC OUT)
( 19)
13 Analogue audio output terminals
(PRE OUT)
( 19)
14 Analogue audio input terminals
(MAIN IN)
( 18)
15 Analogue audio input terminals
(LINE XLR BALANCED/LINE1/LINE2)
( 15)
16 Analogue audio input terminals
(PHONO XLR BALANCED/PHONO) /
PHONO EARTH terminal
( 16)
• PHONO EARTH terminal is for connecting
the ground wire of a turntable.
• Please use the cable less than 3 m.
• Keep the PHONO short pins out of reach of
children to prevent swallowing.
17 USB-B terminals (PC1/PC2)
( 14)
18 USB-A terminal (UPDATE)
(
DC 5 V 500 mA)
( 23)
19 System terminal (CONTROL)
( 24)
20 Optical digital input terminals
(OPT1/OPT2)
( 13)
21 Coaxial digital input terminals
(COAX1/COAX2)
( 13)
22 Product identification marking
• The model number is indicated.
23 AC IN terminal (
)
( 12)
