Technics SU-V90D Service Manual

How
to
remove
the
headphones,
the
tone,
the
power
amp.
direct,
the
LED,
the
main
volume
and
phono
selector
P.C.
Boards

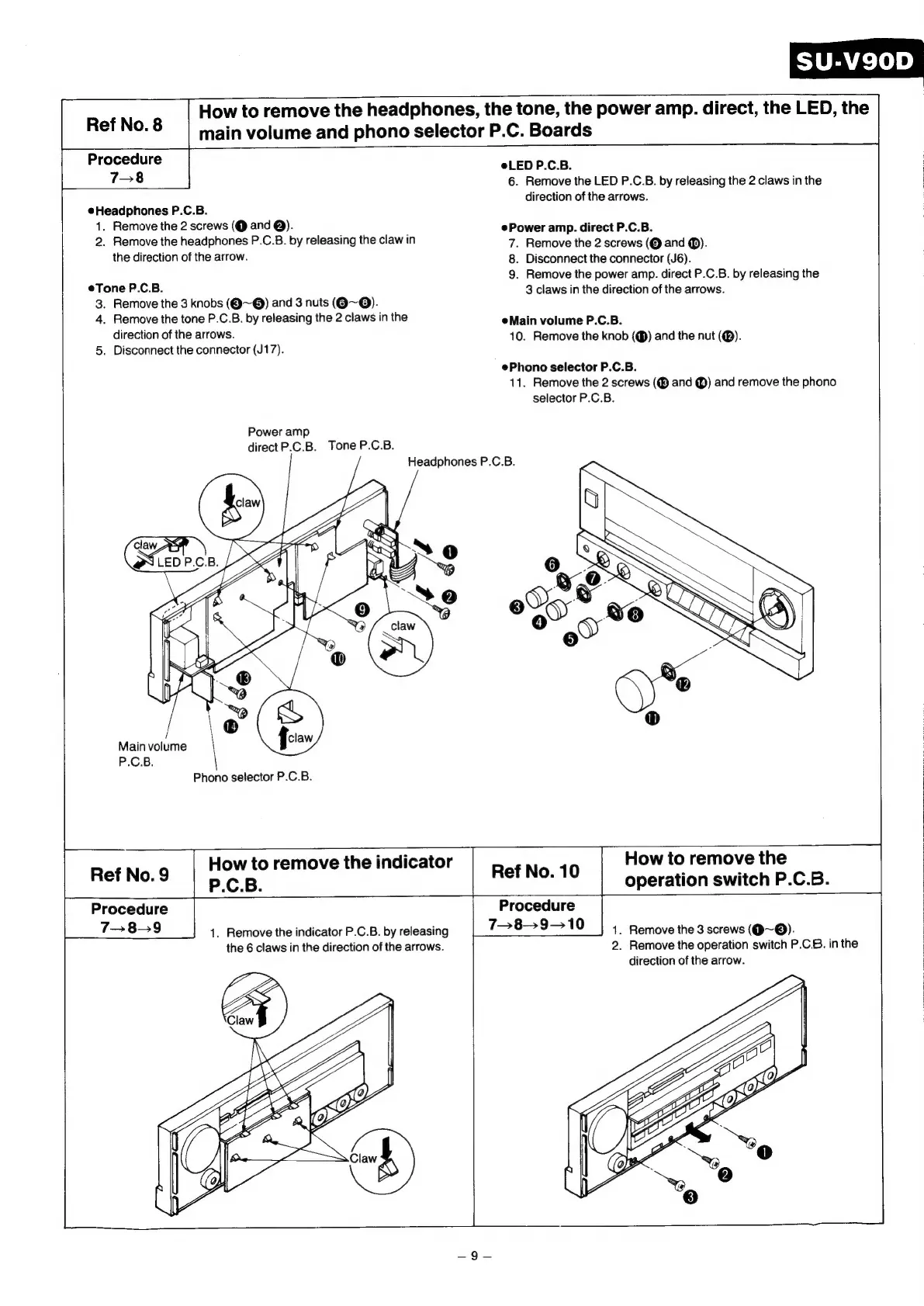

tas eLED P.C.B.
=e 6. Remove the LED P.C.B. by releasing the 2 claws in the
direction of the arrows.
eHeadphones P.C.B.
1. Remove the 2 screws (@ and @). ePower amp. direct P.C.B.
2. Remove the headphones P.C.B. by releasing the claw in 7. Remove the 2 screws (© and ®).
the direction of the arrow. 8. Disconnect the connector (J6).
9. Remove the power amp. direct P.C.B. by releasing the
©Tone P.C.B. 3 claws in the direction of the arrows.
3. Remove the 3 knobs (Q@~@) and 3 nuts (@~@).
4.
Remove
the
tone
P.C.B.
by
releasing
the
2
claws
in
the
eMain
volume
P.C.B.
direction of the arrows. 10. Remove the knob (@) and the nut (®).
5. Disconnect the connector (J17).
ePhono selector P.C.B.
11. Remove the 2 screws (@ and @) and remove the phono
selector P.C.B.
Power amp
direct P.C.B. Tone P.C.B.
Headphones P.C.B.
Main volume
P.C.B.
Phono selector P.C.B.
How to remove the
operation switch P.C.B.
How to remove the indicator
P.C.B.
Ref No. 10
Procedure
7—-8—9—10
Ref No. 9
1. Remove the 3 screws (@~®).
2. Remove the operation switch P.C.B. in the
direction of the arrow.
1. Remove the indicator P.C.B. by releasing
the 6 claws in the direction of the arrows.
