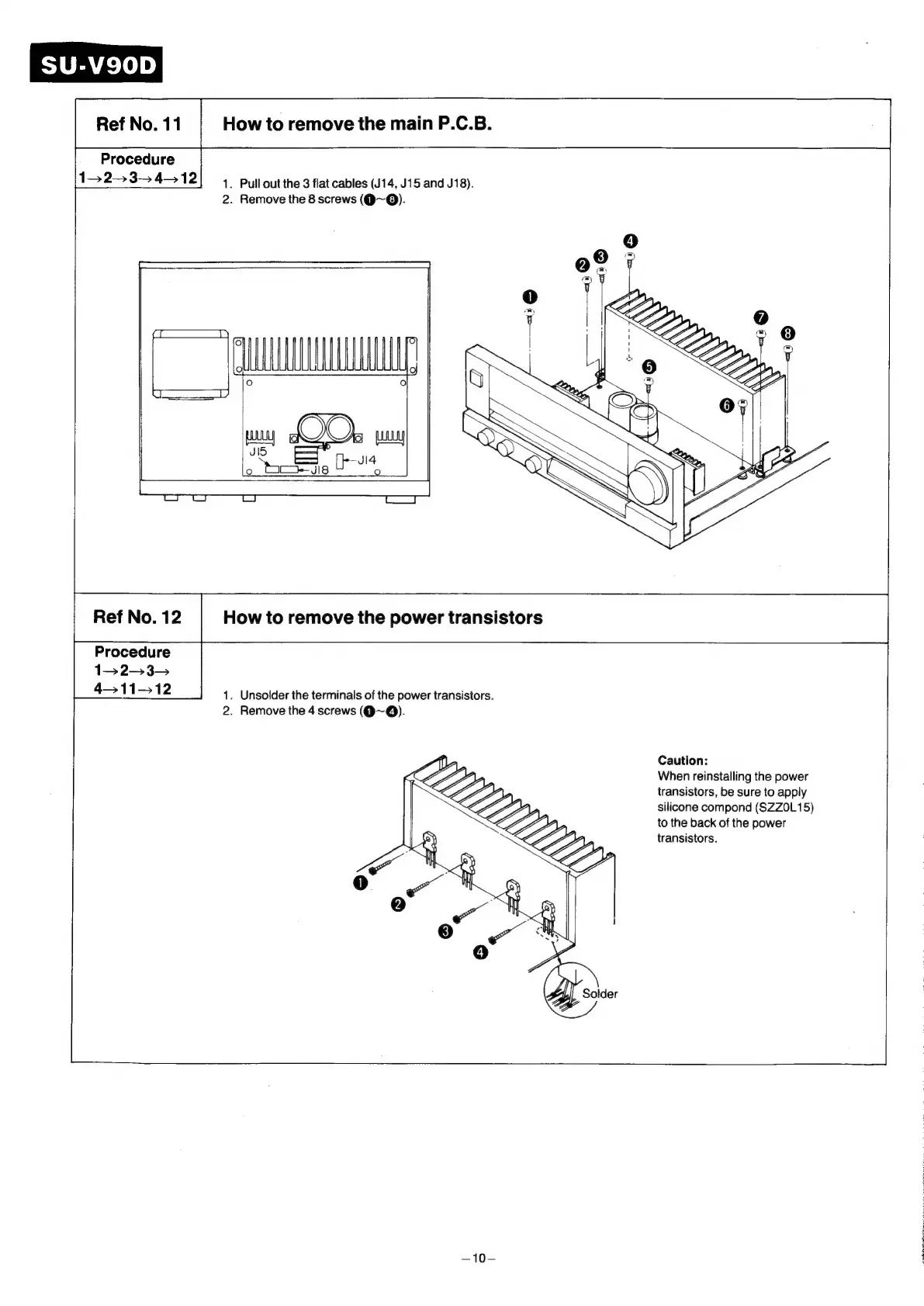

Technics SU-V90D Service Manual

| ef Nott How to remove the main P.C.B.
Procedure
152-3412] 4. pulloutthe 3 flat cables (J14, J15 and J18).
2. Remove the 8 screws (@~@).
How to remove the power transistors
Procedure
1—-2—>3—
4-11-12 1. Unsolder the terminals of the power transistors.
2. Remove the 4 screws (@~@).
Caution:
When reinstalling the power
transistors, be sure to apply
silicone compond (SZZOL15)
to the back of the power
transistors.
Fy Solder
—10—
