LFO (cyclic modulation) Edit
LFO can be applied to the pitch, amplitude, filter and/or pan to produce a cyclic modulation of the sound.
• Twelve LFO groups can be used.
LFO
1. On the SOUND EDIT MENU display, select
LFO.

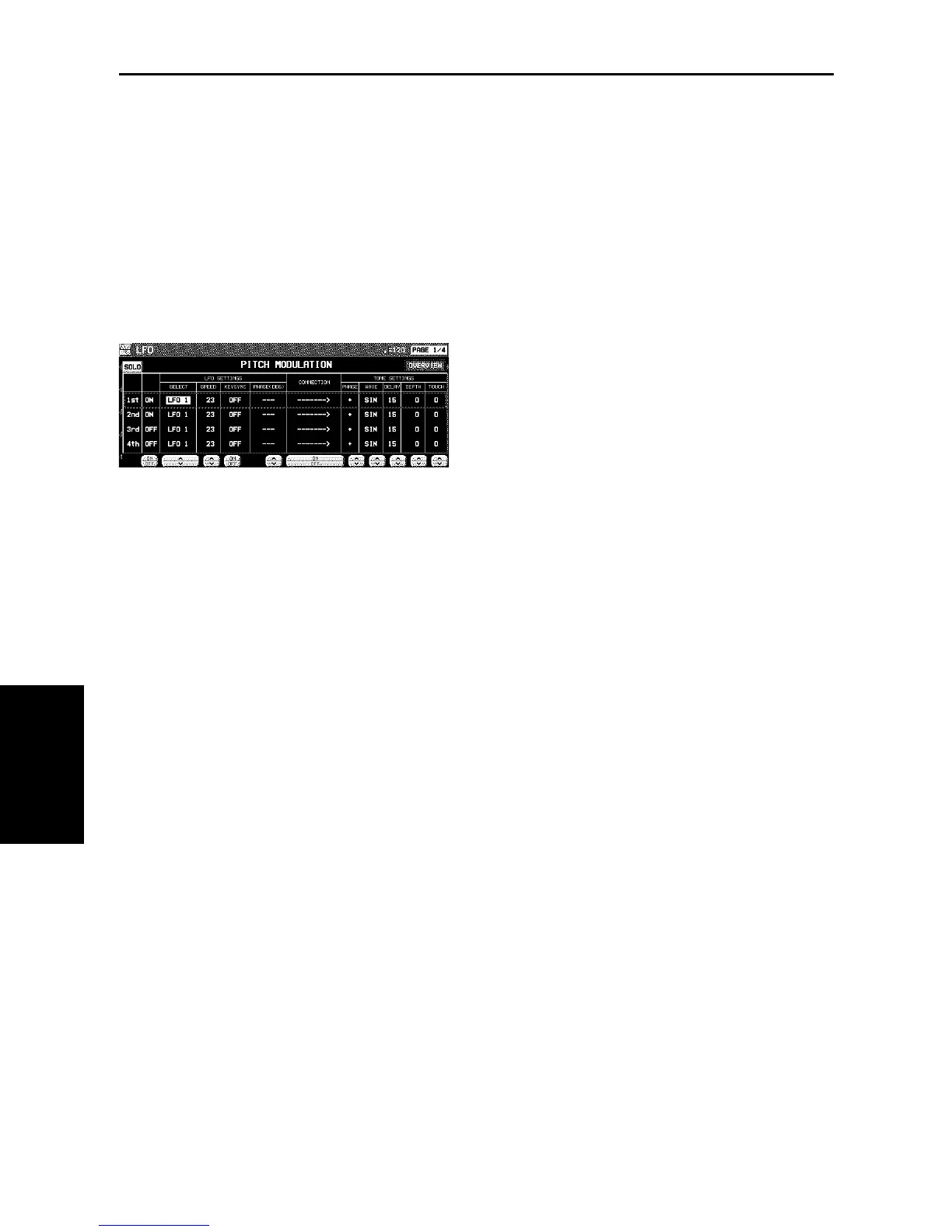

• The display looks similar to the following.
2. Use the PAGE buttons to select the respective
characteristics.
PAGE 1/4: PITCH (vibrato effect)
PAGE 2/4: AMP (tremolo effect)
PAGE 3/4: FILTER (wah-wah effect)
PAGE 4/4: PAN (auto pan effect)
3. Use the buttons to the left of the display to
select a tone.
4. Use the LFO SETTINGS ∧ and ∨ buttons to
adjust the respective assigned LFO’s.
• LFO which share the same number on other
displays are also changed with this adjust-
ment.
SELECT
Select the assigned LFO number (1 to 12)
SPEED
Adjust the modulation speed.
KEYSYNC
When playing more than one note, specify
whether the LFO starts or not each time a key
is pressed (ON/OFF).
• When KEYSYNC is set to ON: if, while playing
one note, you play a second note, the LFO is
applied to the second note as well.
PHASE
Degree of phase change.
5. Use the CONNECTION ON/OFF buttons to
specify whether or not the LFO is applied to
the tone.
• An arrow mark indicates that the LFO is ap-
plied.
6. Use the TONE SETTINGS ∧ and ∨ buttons to
adjust the respective parameters.
PHASE
Phase
• A + indicates normal phase, and a - indicates
an inverted phase.
WAVE
Modulate the waveform.
SIN: Sine wave
TRI: Triangle wave
SQR: Square wave
SAW: Saw tooth wave
DELAY
Delay time is the time elapsed from when the
keyboard key is pressed until the modulation
begins.
DEPTH
Modulation depth
TOUCH
Degree of modulation change in relation to
touch
7. Repeat steps 2 to 6 for the other tones, as
desired.
• You can press the OVERVIEW button to con-
firm the status of each LFO setting.
