Technics SX-P30 Manual

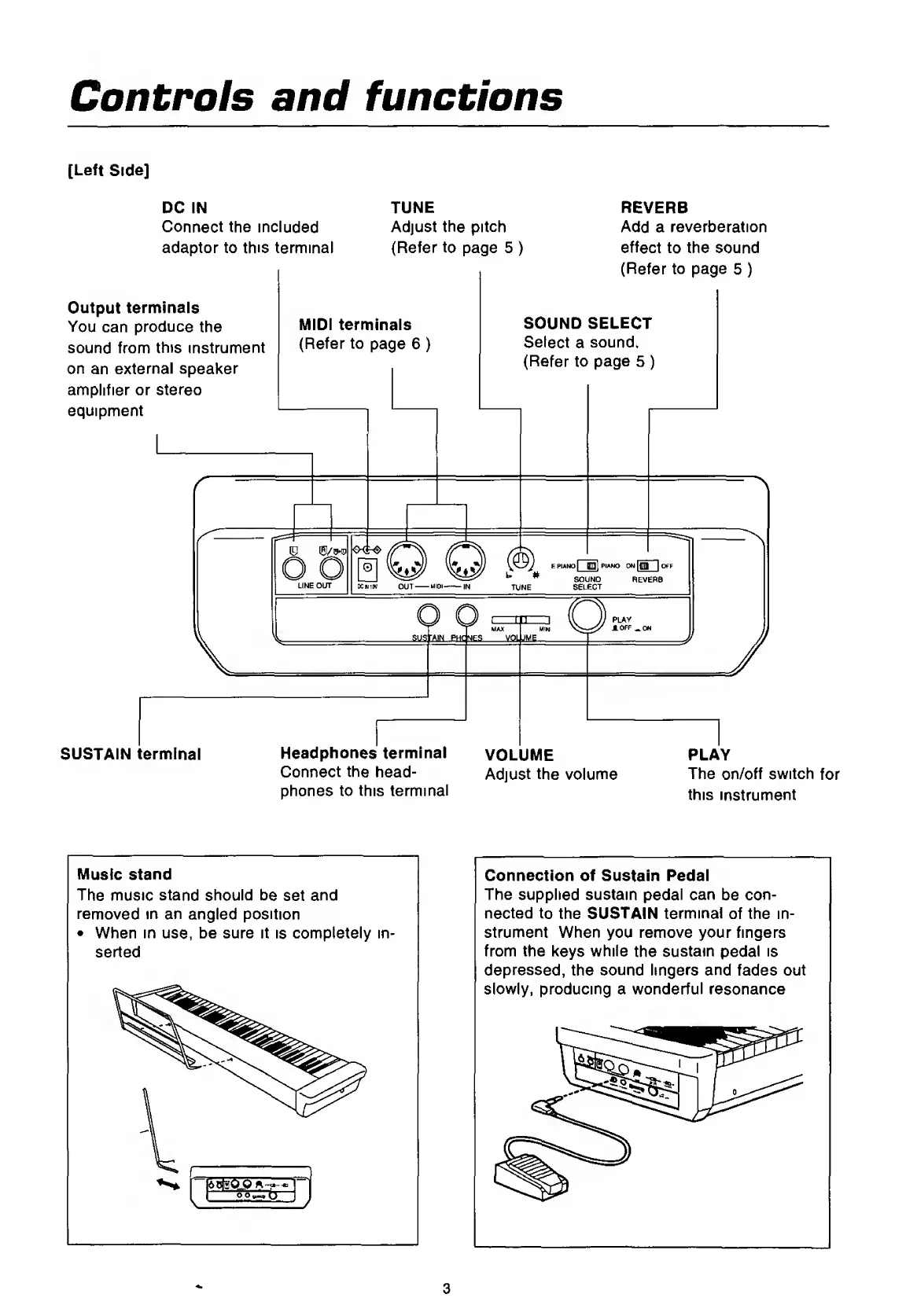

Controls and functions
[Left Side]
DC IN
Connect the included
adaptor to this terminal
TUNE
Adjust the pitch
(Refer to page 5 )
REVERB
Add a reverberation
effect to the sound
(Refer to page 5 )
Output terminals
You can produce the
sound from this instrument
on an external speaker
amplifier or stereo
equipment
MIDI terminals
(Refer to page 6 )
SOUND SELECT
Select a sound.
(Refer to page 5 )
O O 0 W w ”Eb°"
UNEOUT Kdiw OUT-UlOi-IN TUNE SELECT
c
\L susb
0 ^
MAX
JN fHC^ES VOL JME 1 J/
SUSTAIN terminal
Headphones terminal
Connect the head¬
phones to this terminal
VOLUME
Adjust the volume
PLAY
The on/off switch for
this instrument
Music stand
The music stand should be set and
removed in an angled position
• When in use, be sure it is completely in¬
serted
Connection of Sustain Pedal
The supplied sustain pedal can be con¬
nected to the SUSTAIN terminal of the in¬
strument When you remove your fingers
from the keys while the sustain pedal is
depressed, the sound lingers and fades out
slowly, producing a wonderful resonance
